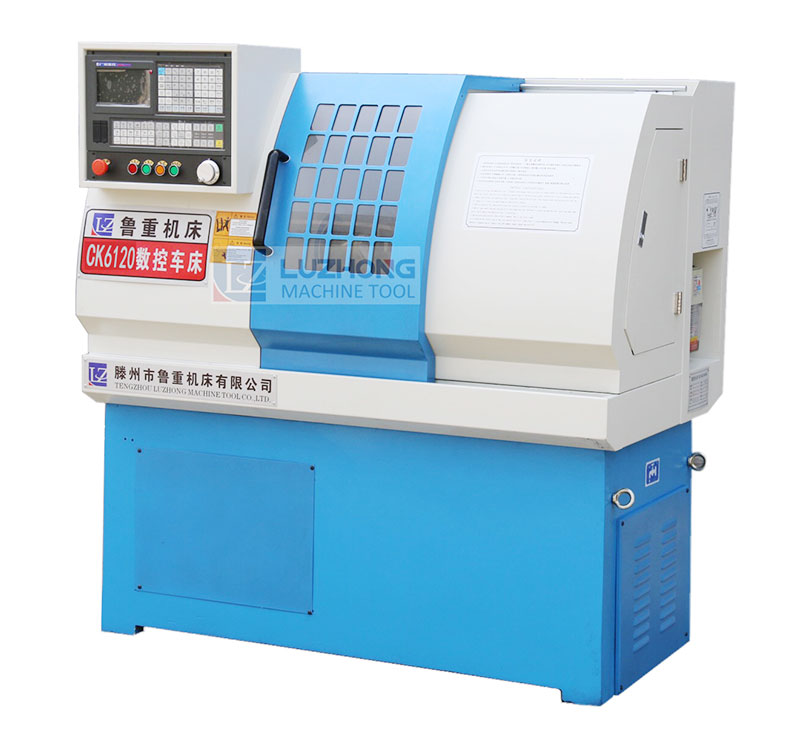

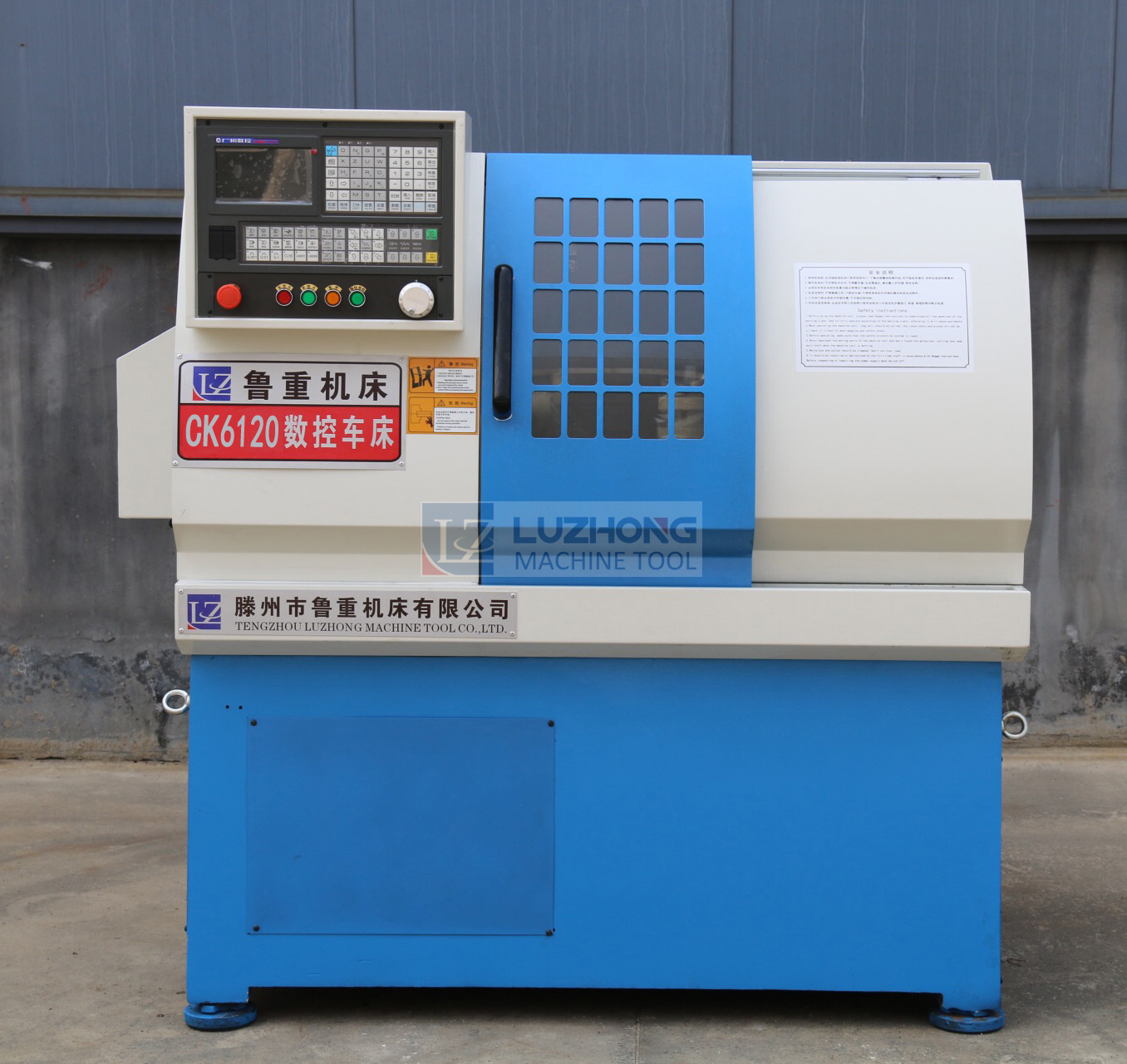

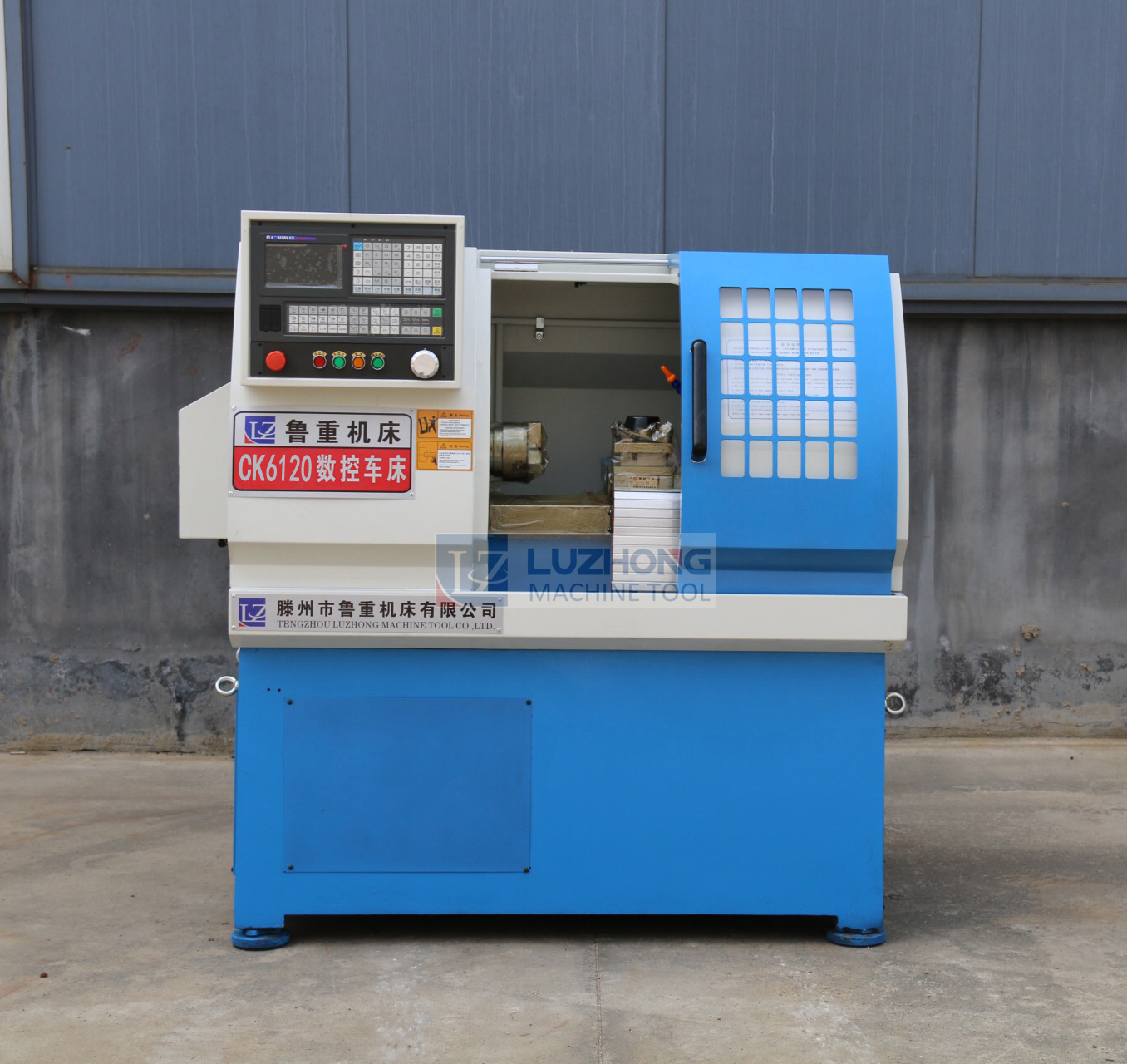

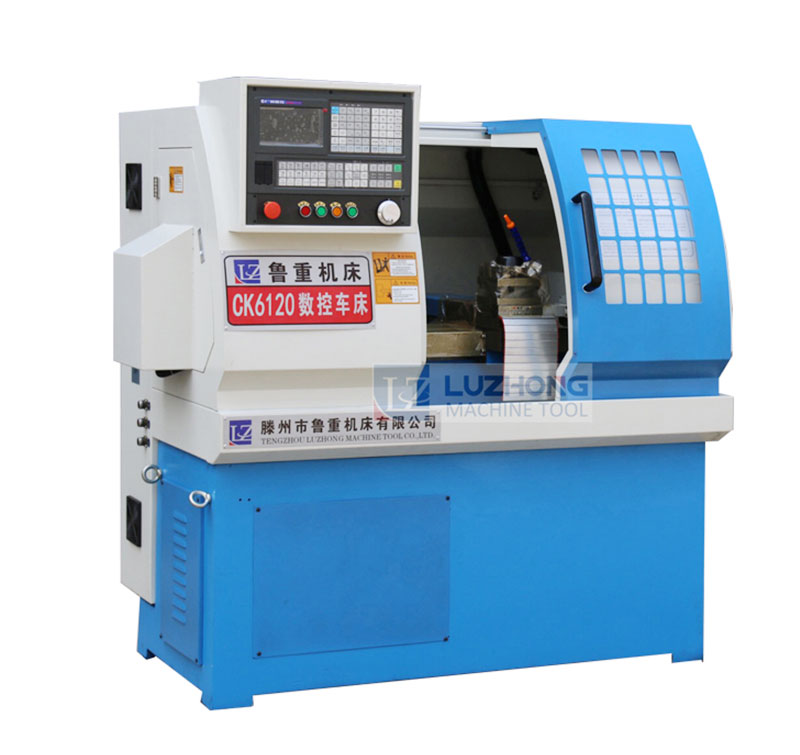

The main performance characteristics:
Guide rail high frequency quenching, high hardness and wear resistance,
Principal axis diagonal distribution contact ball bearing，high speed and high rigidity,
Instrument lathe replacement products, have a high price ratio, screw mid place,
Standard configuration: Pneumatic spring chuck, Cutting knife,
Select configuration: Electric knife frame, Automatic feeding device, Tail seat.
Application:
This machine is widely used in electrical equipment, Instrument apparatus industry, Cars, Motorcycle parts, Fastener bearing, Photographic equipment, movie mechanical, hardware various clocks and watches，The glasses, Stationery, electric machinery, Valves, Gas pipe fittings and other high precision machining and manufacturing of complex parts, Is a hardware machinery processing industry the most ideal efficient equipment. Is a hardware machinery processing industry the most ideal efficient equipment.
Product main technical parameters:
| Specifications | Units | CK6120 |
| Max.swing over bed | mm | 190 |
| Max. Swing over cross slide | mm | 80 |
| Max. Processing length | mm | 200 |
| X/Z travel | mm | 300/320 |
| Spindle nose | A2-4 | |
| Spindle bore | mm | 37 |
| Bar capacity | mm | 30 |
| Spindle speed | rpm | 150-2500 |
| Chuck size | in | collet |
| Spindle motor | kw | 3 |
| X/Z axis repeatability | mm | ±0.005 |
| X/Z axis feed motor torque | N.m | X:4 Z:4 |
| X/Z rapid traverse | Mm/min | X8/Z10 |
| Tailstock sleeve dia. | mm | 45(optional) |
| Tailstock sleeve travel | mm | 50 (optional) |
| Tailstock taper | MT4 (optional) | |
| Tool post type | Gang type tool post | |
| Cutting tool shape size | mm | 16x16 |
| Guide rail form | Double mountain | |
| Machine dimension(LxWxH) | mm | 1500x1000x1600 |
| Net weight | Kg | 800 |
