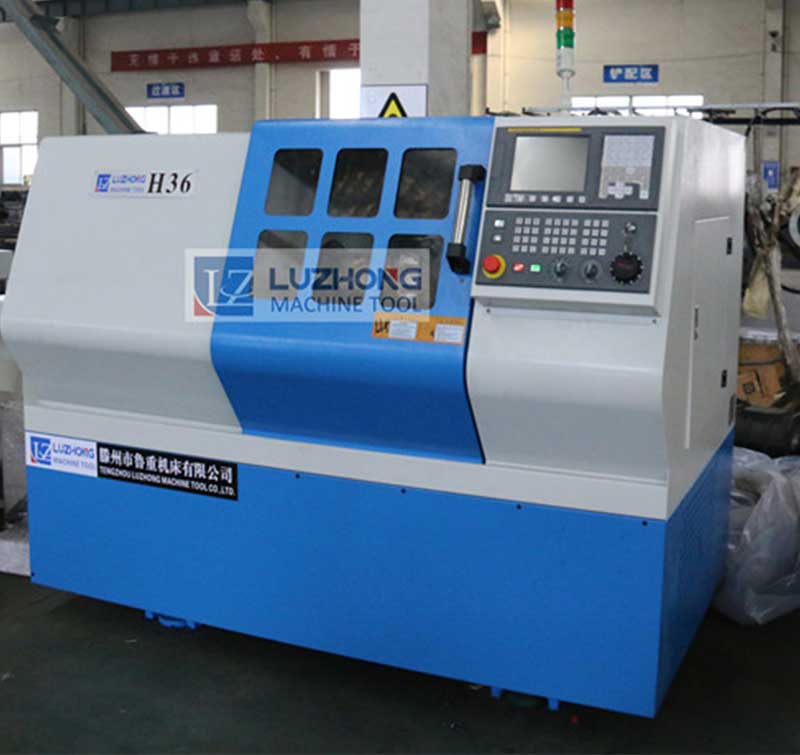

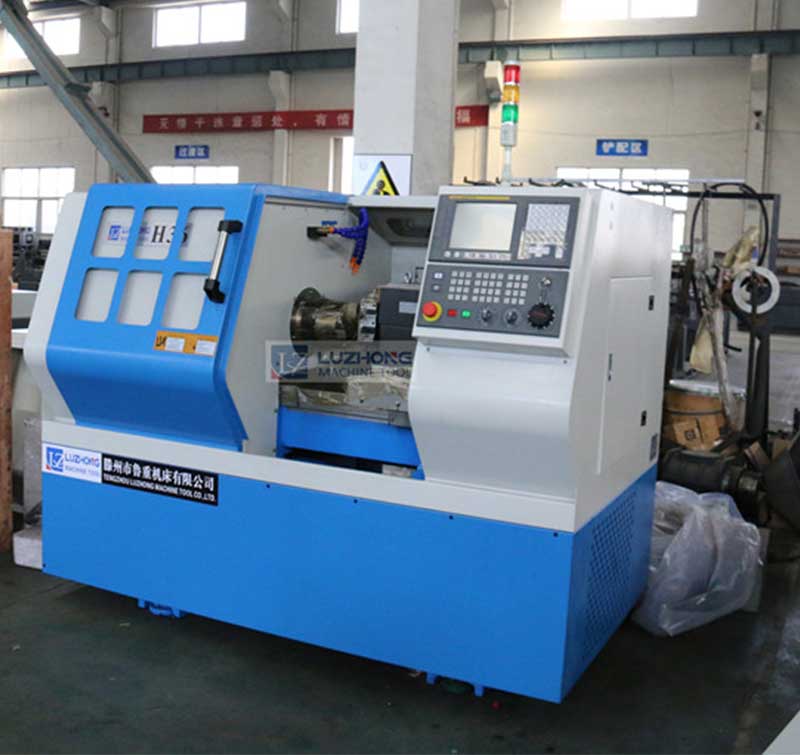

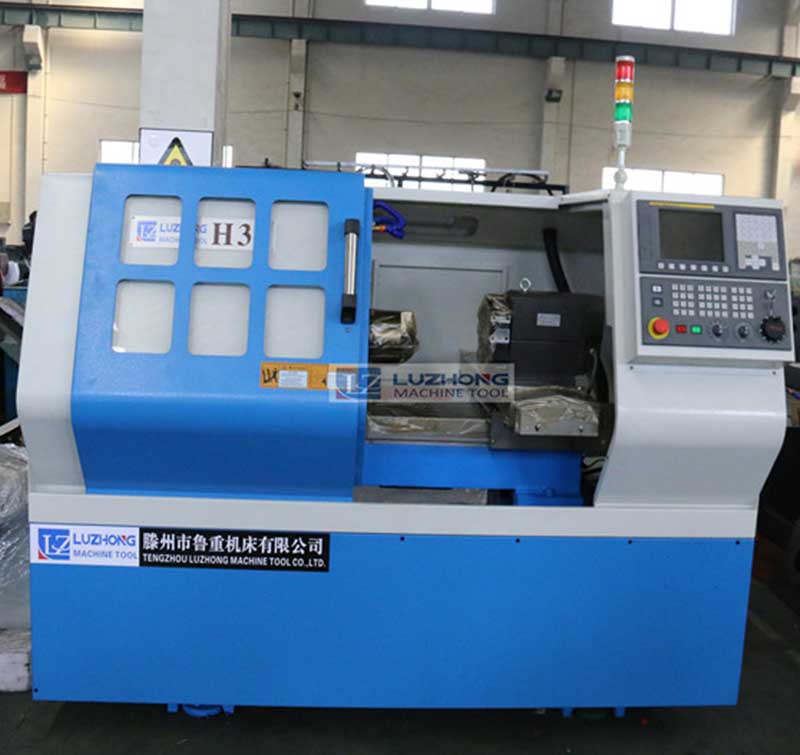

CNC Lathe Features:
Higher accuracy Taiwan linear guideways
Higher speed spindle unit,Optional homemade spindle
Higher rigidity cast iron
Integrated automatic of H6236 and H6240,linear guideways in X axes are reversely installed.
Application:
The machine is suitable to process all kinds of small and middle-sized shaft and plate work piece,and could also turn various threads,circle arc,circular cone,inside and outside surface of revolved body.This machine is widely used in sanitary,valve,electrical appliance,instrument,automobie,motorcycle,bearoings and so on.
Product main technical specifications:
| Specifications | Units | S36 | S46 |
| Max.swing over bed | mm | 360 | 460 |
| Max.swing over cross slide | mm | 110 | 140 |
| Max.processing length | mm | 250 | 330 |
| X/Z axis travel | mm | 340/250 | 360/330 |
| Spindle nose | A2-5 | A2-5 | |
| Spindle bore | mm | 48 | 56 |
| Bar capacity | mm | 38 | 42 |
| Max. spindle speed | rpm | 2500/4000 | 3500 |
| Chuck size | mm | 6 | 8 |
| Spindle motor | KW | 4 | 5.5 |
| X/Z axis repeatability | mm | ±0.003 | ±0.003 |
| X/Z axis feed motor torque | N.m | X:4 Z:4 | X:4 Z:6 |
| X/Z axis rapid traverse | m/min | 15/15 | 15/15 |
| Tool post type | 4 gang type tool post | 4 gang type tool post | |
| Cutting tool shape size | mm | 20x20 | 25x25 |
| Guide form | Linear guide rail | Linear guide rail | |
| Total power capacity | KVA | 8 | 9.5 |
| Machine dimension(LxWxH) | mm | 2000/1400x1580 | 2335x1815x1605 |
| Net weight | kg | 1500 | 2200 |
