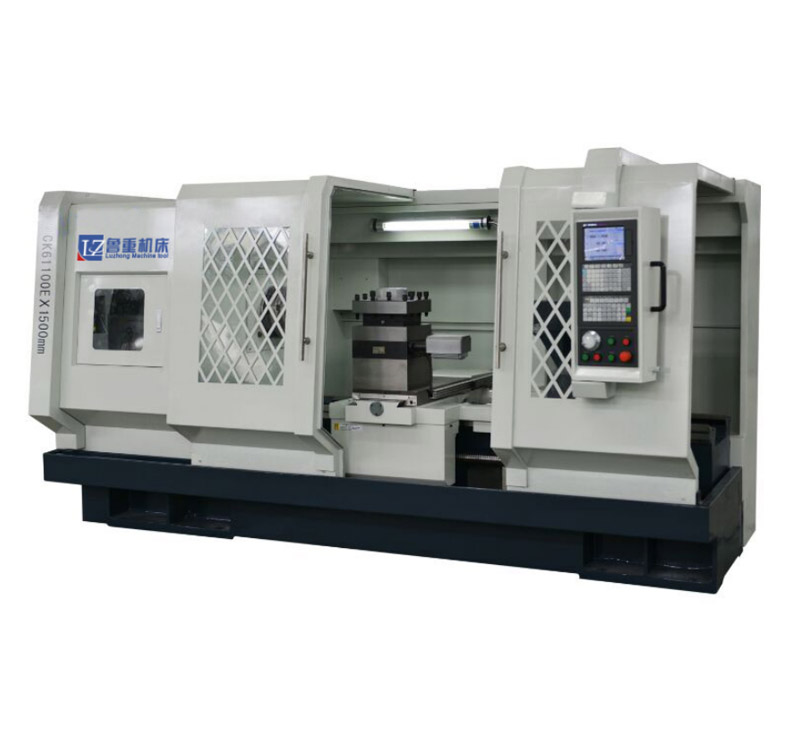

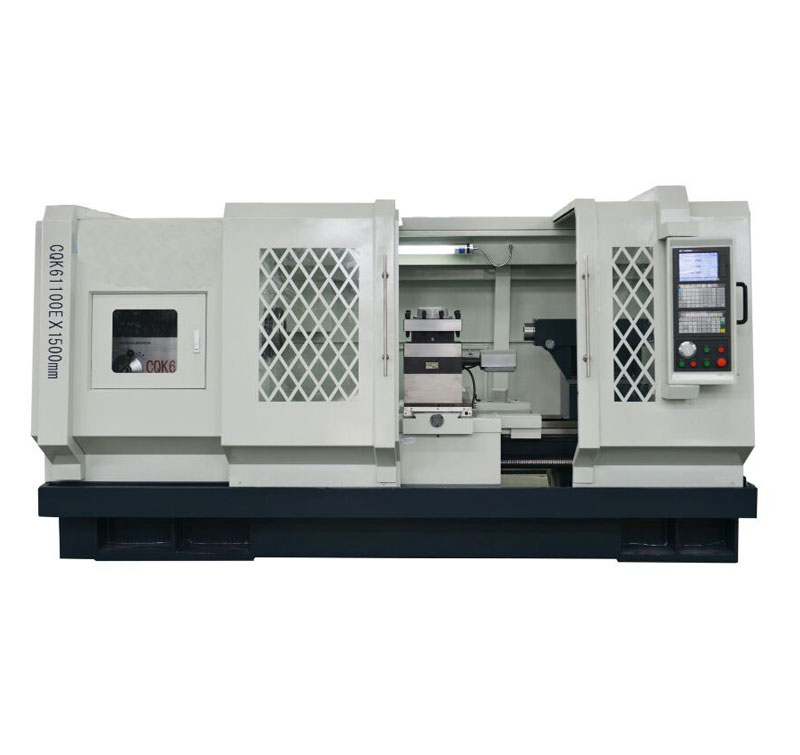

CK61100E Heavy Duty CNC Lathe Machine

Inquire Now Next Product

Description

Product main features and uses：

This machine can undertake a variety of turning workpiece, it can turning the various parts of the outer circle, inner hole, end and metric thread, Whitworth, module thread and pitch diameter of the thread forming surface; in addition, you can also meet drilling, every hole, sets and other materials process requirements. It can also be used in hard cutting tool for powerful cutting, processing a variety of ferrous and non-ferrous metals.The width of the side wall of the double bed ribs, inner ribs with box and diagonal reinforcement integral bed structure, high integral rigidity.

Product main technical specification:

Item	Specifications	Unit	CK61100E
Technical specification	Max.swing over bed	mm	1000
	Max.swing over cross slide	mm	700
	Max.turning length	mm	1000-12000
	Bed width	mm	550
	Max.work piece weight	T	2
Main drive	Form		Three step variable speed
	Range of spindle speeds	R/min	25-800
	Terminal structure		C11(D11)
	Hole diameter of Spindle	mm	105
	Spindle hole fore-end taper		Metric 120 1:20
	Model of main motor		YVP160M-4-11KW
Feeding system	Maximum cross travel of turret		X:530 Z:1200.1650,3100,
	Ball-screw diameter *pitch	mm	X:3205 Z:5010-6312
	Speed of quick travel	mm/min	X:4000 Z:5000
	Setting accuracy	mm	X:0.03 Z:0.04
	Resetting accuracy	mm	X:0.012 Z:0.016
	Precision pf workpiece		IT6-IT7
	Surface roughness	mm	Ra1.6
	Sleeve diameter of tailstock	mm	100
Tailstock	Sleeve travel of tailstock	mm	250
Tailstock	Cone hole taper tailstock’s sleeve	Morse	Morse 6
Turret	Standard configuration		Four-station Vertical electrical turret
	Alternative configuration		Horizontal Six-station electrical turret
	Resetting accuracy	mm	0.01
	Tool section size	mm	32x32
Control system	Standard configuration		NHC-210A GSK980TD
	Alternative configuration		KND,FANUC,SIEMENS
	Servo motor		X:130SJT-M210A Z:175SJT-M300B
Size	LWH	mm	4750(5500)x1920x1800
weight	N.G	KG	6000(1500mm),8500(3000mm),13500(6000)
