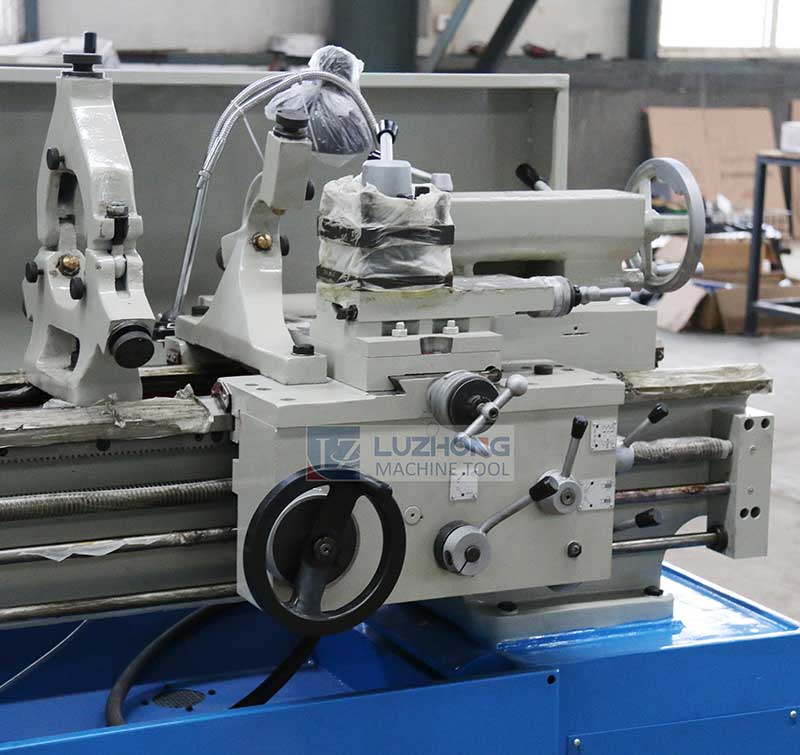

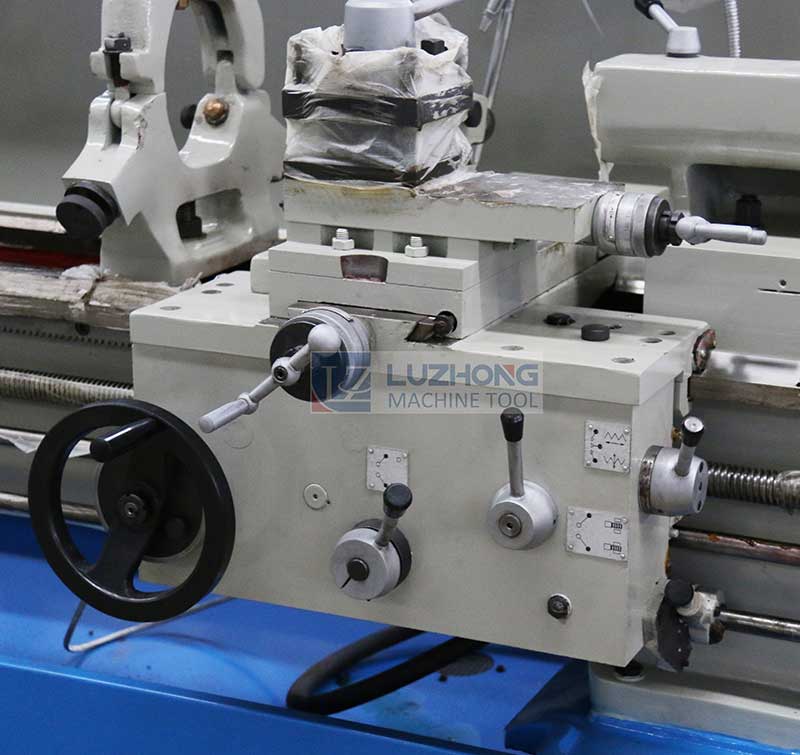

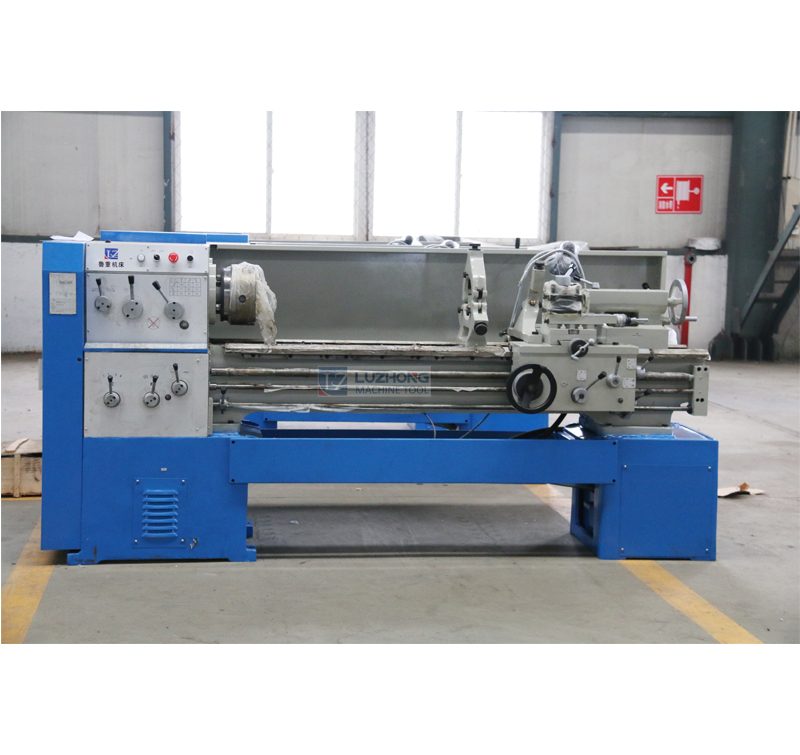

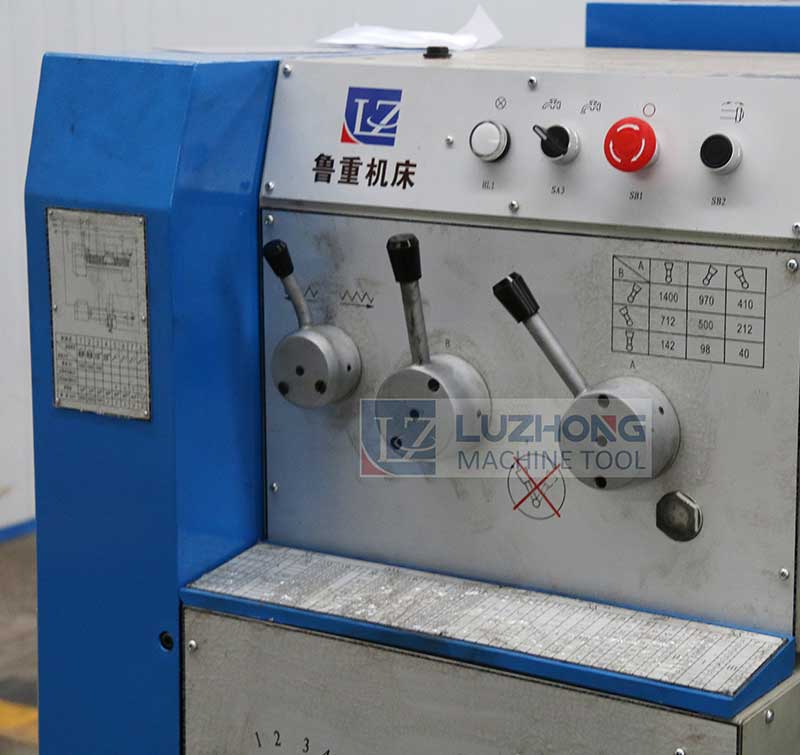

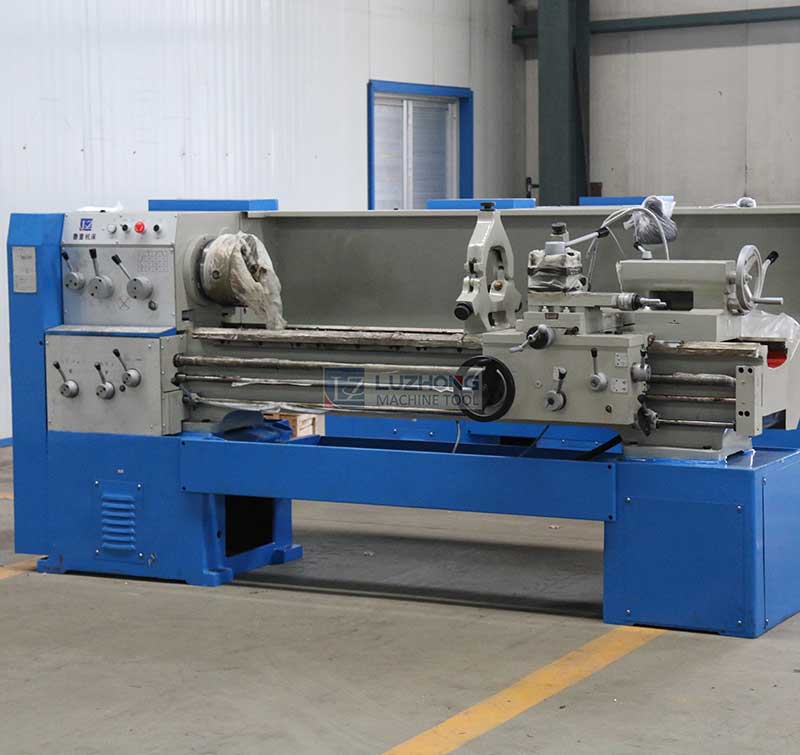

C6236 C6240 C6250 C6260 C6270 Gap Bed Lathe Machine

Inquire Now Next Product

Description

Product description:

1.Bed rail by super audio quenching and precision grinding.

2.Precision grinding of the main shaft box, low noise.

3.More thread type.

4.Electrical safety performance is good, high reliability.

5.With electromagnetic brake, the color of available options.

Product main technical Specifications:

Specifications			C6236	C6240	C250	C6260	C6270
Capacity	Max. swing over bed		360mm	400mm	500mm	600mm	700mm
	Max.swing over cross slide		200mm	238mm	300mm	400mm	500mm
	Max.swing over gap		590mm	630mm	720mm	820mm	900mm
	Center distance		750、1000、1500、2000mm
	Spindle hole		52mm(82mm)
Spindle	Spindle nose		ISO-C6（C8）
	Spindle tap		MT6
	Spindle speeds(Number)		40-1400rpm (9 Steps)
Feed	Metric threads range（Kinds）		0.5-14mm (20 Kinds)
	Inch threads range(Kinds)		2-40/inch (28 Kinds)
	Module threads range(Kinds)		0.25-3.55mπ (11 Kinds)
	Compound rest travel		150mm
	Cross slide travel		180mm
	Cross-section size of tool shank		20×20mm2
Tailstock	Dia. of tailstock sleeve		65mm
	Taper of tailstock sleeve		MT5
	Travel of tailstock sleeve		140mm
Main motor power			4KW	5.5KW		7.5KW
Machine size(LWH mm)		Overall dimensions for750mm	2100×1150×1550mm	2100×1150×1550mm	2100×1150×1550mm	2100×1150×1550mm	2100×1150×1550mm
		Overall dimensions for1000mm	2350×1150×1550mm	2350×1150×1550mm	2350×1150×1550mm	2350×1150×1550mm	2350×1150×1550mm
		Overall dimensions for1500mm	2850×1150×1550mm	2850×1150×1550mm	2850×1150×1550mm	2850×1150×1550mm	2850×1150×1550mm
		Overall dimensions for2000mm	3350×1150×1550mm	3350×1150×1550mm	3350×1150×1550mm	3350×1150×1550mm	3350×1150×1550mm
Weight(kg)		Weight for 750mm	1500kg	1600kg	1700kg	1800kg	1900kg
		Weight for 1000mm	1600kg	1700kg	1800kg	1900kg	2000kg
		Weight for 1500mm	1800kg	1900kg	2000kg	2100kg	2200kg
		Weight for 2000mm	2000kg	2100kg	2200kg	2300kg	2400kg
