Product description:

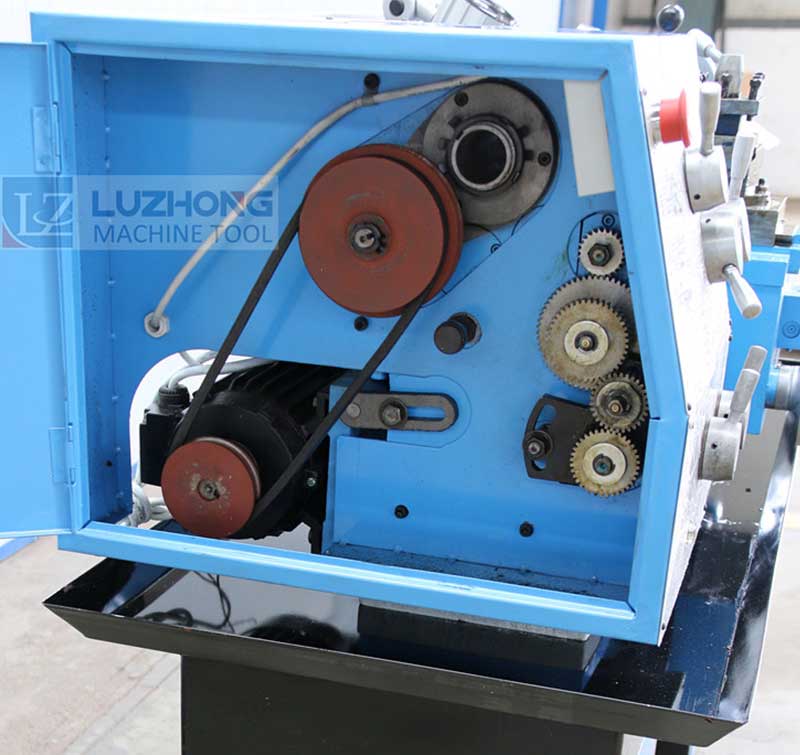

1.The machine adopts full gear drive, double rod operation, no need to replace the hanging wheel can meet the needs of a variety of different kinds of knife and a variety of pitch.
2.Vertical and horizontal feed adopts interlocking mechanism, safety is good.
3.The machine tool uses two mountains and two moment rail, high frequency quenching, high accuracy, high rigidity, good abrasion resistance.
Product main technical Specifications:

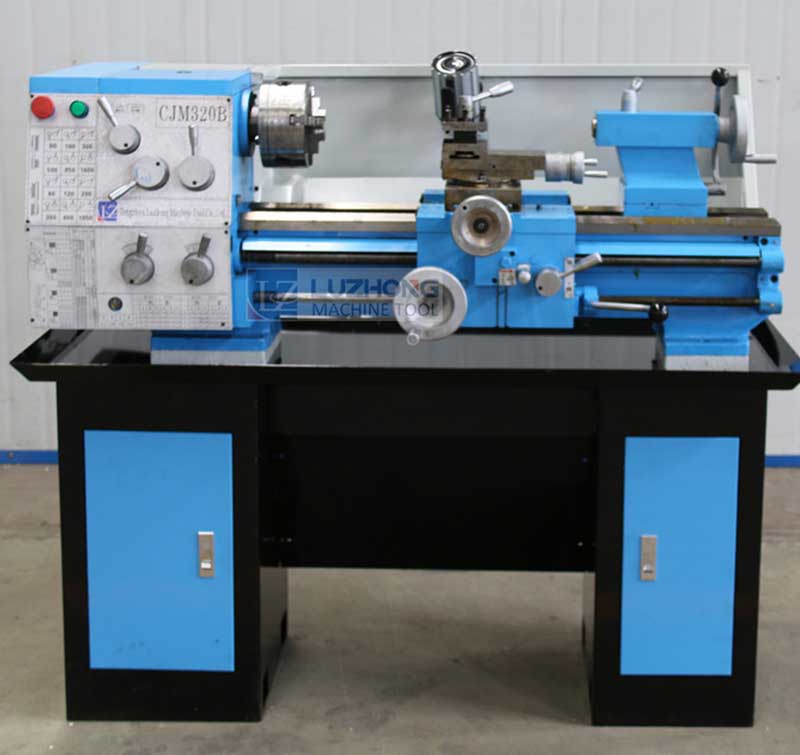

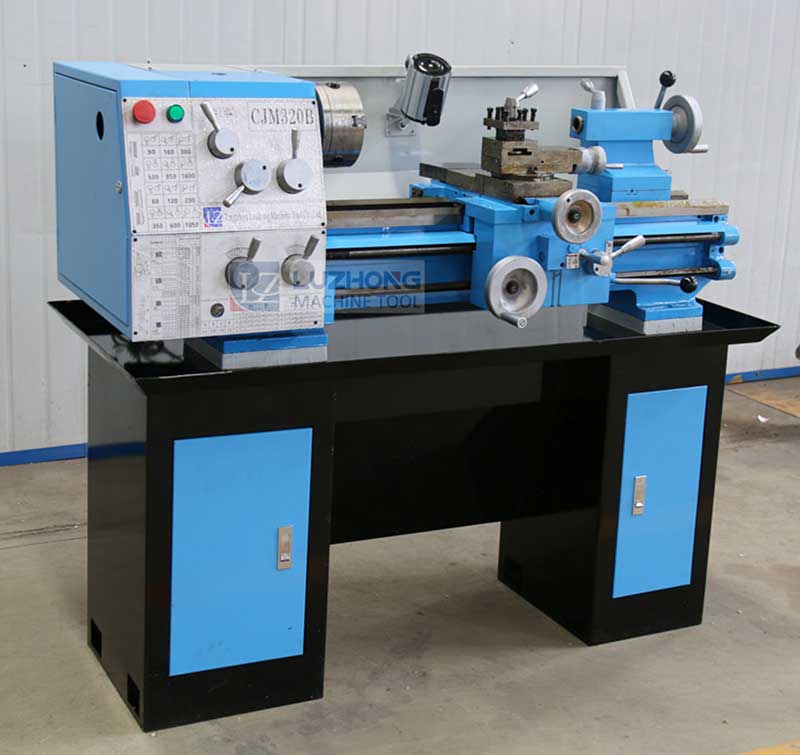

| Specifications | Units | CJM320B |
| Max.swing over bed | mm | 320 |
| Distance between centers | mm | 600 |
| Max.swing over cross slide | mm | 200 |
| Spindle hole diameter | mm | 38 |
| Taper of spindle | mm | No.5 |
| Spindle | mm | 80—1600r.p.m 12 |
| The maximum horizontal stroke of cutter | mm | 160 |
| The knife frame maximum longitudinal travel | mm | 100 |
| Processing metric thread number | 22 | |
| Processing range of metric threads | mm | 0.2－7 |
| The processing module thread number | 21 | |
| The processing module thread range | mm | 0.2－3.5 |
| Processing diameter pitch threads number | 31 | |
| Processing pitch thread range | mm | 8－120 1/n″ |
| Longitudinal feed spindle turret at every turn | Mm/r | 0.1－1.4 |
| The transverse feed amount per turn spindle turret | Mm/r | 0.045－0.6 |

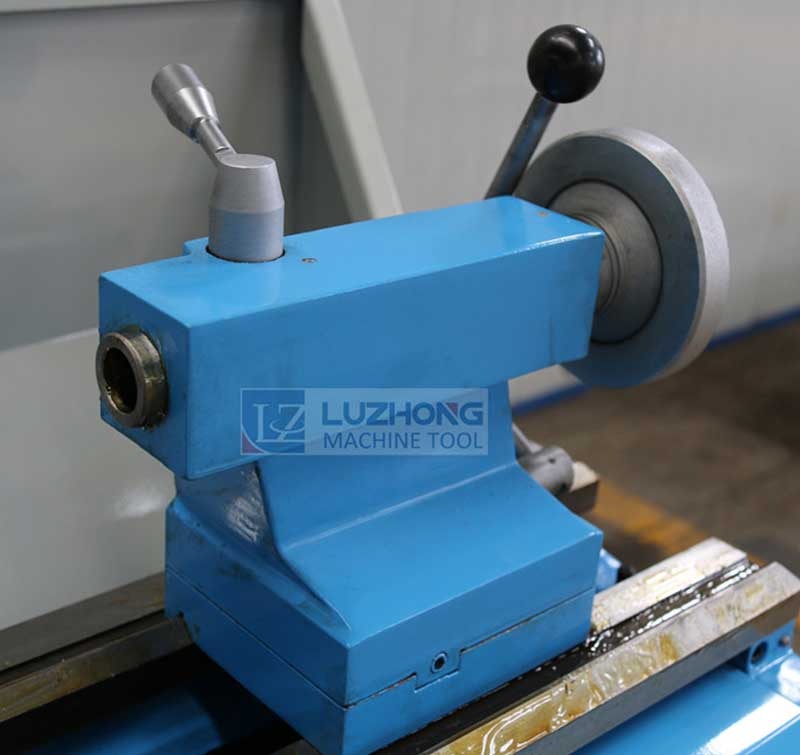

| Tailstock sleeve travel | mm | 80 |
| Taper of tailstock sleeve | No.3 | |
| Electric machinery | w | 750W/380V/50HZ |
| Gross / net weight | kg | 450/390 |
| Dimensions (length * width * height) | mm | 1370×685×1360 |
| Packing size (length * width * height) | mm | 1470×770×1470 |
