Specification:
Specification | units | CK5126×H/8 |
Max,turning diameler | mm | 2600 |

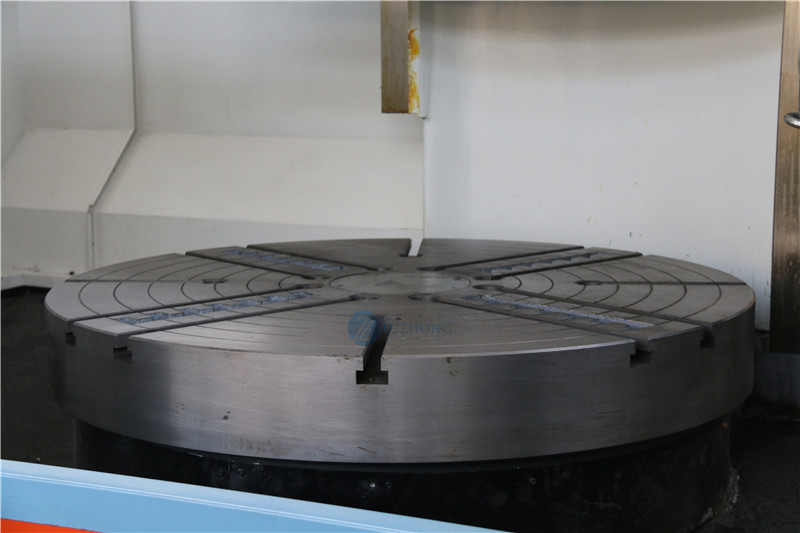

Table diameter | mm | 2250 |
Max. height of workpiece | mm | 1350/1600 |
Max. weighi of workpiece | t | 8 |
Max. torque oftable | KN.m | 35 |
Spindle speed range (16steps) | r/min | 3.2-100 |
Max. cutting force of rail head | KN | 22 |
Range of tool feed | mm/min | 0.1-500 |
Horizontal tool travel | mm | 1380 |
Vertrical tool travel | mm | 1000 |
Tool head srapid traverse | mm/min | 3750 |
Elevating speed of cross rail | mm/min | 440 |
Tool size | mm | 30×40 |
Main motor power | KW | 37 |
Overall dimension | mm | 3900×2950×4200 |
Machine weight(Approx.) | t | 21/23 |
