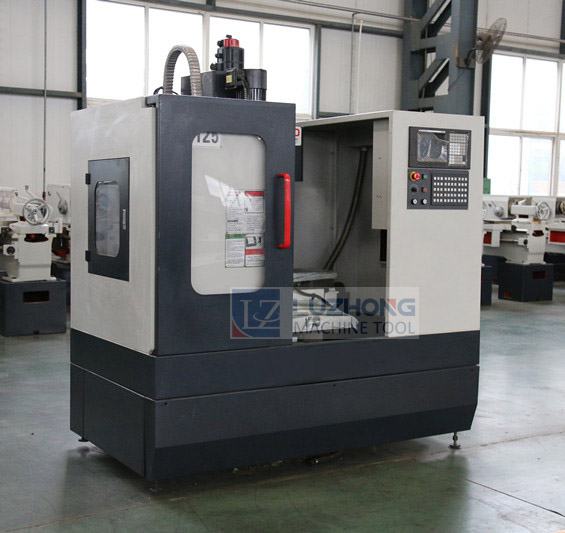

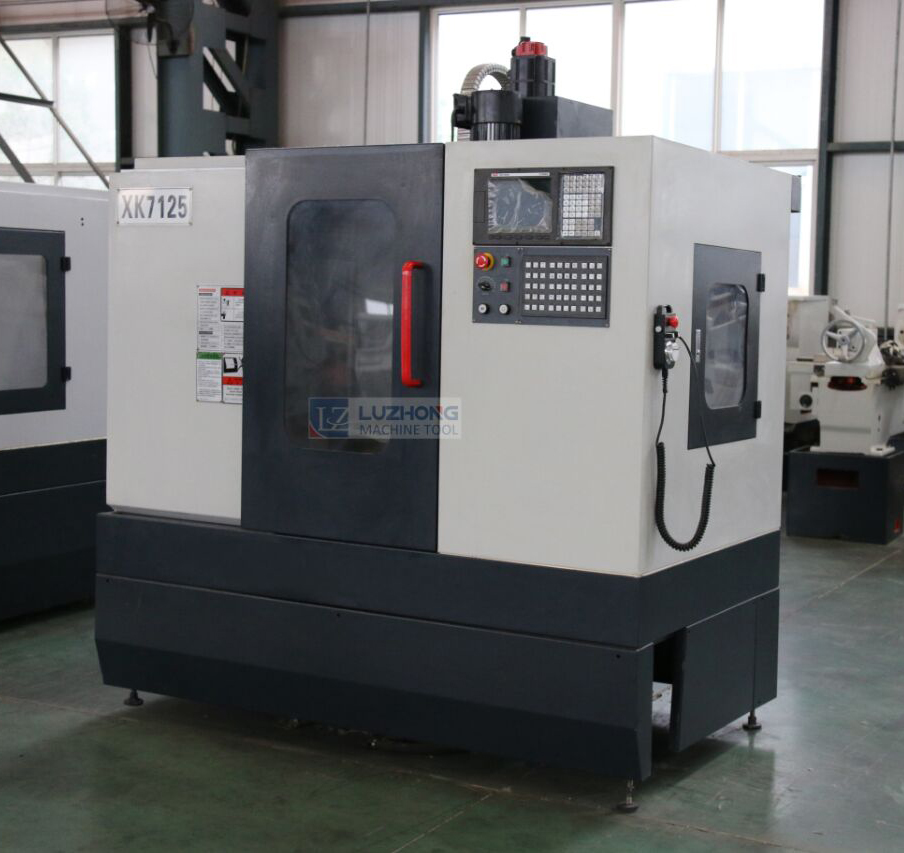

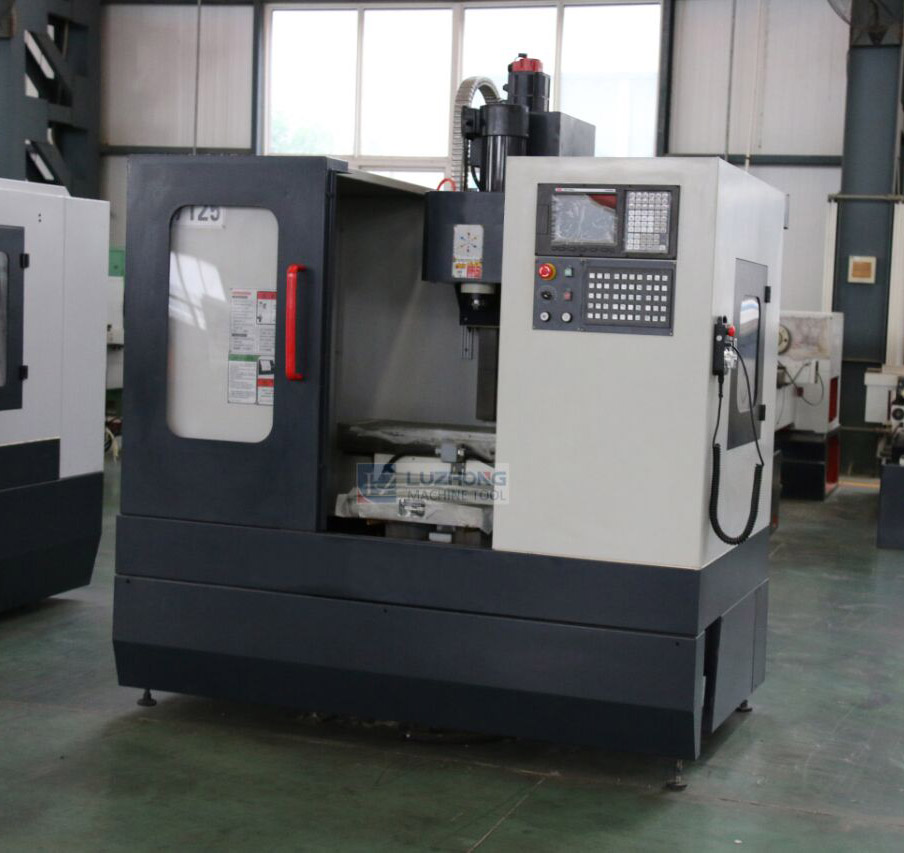

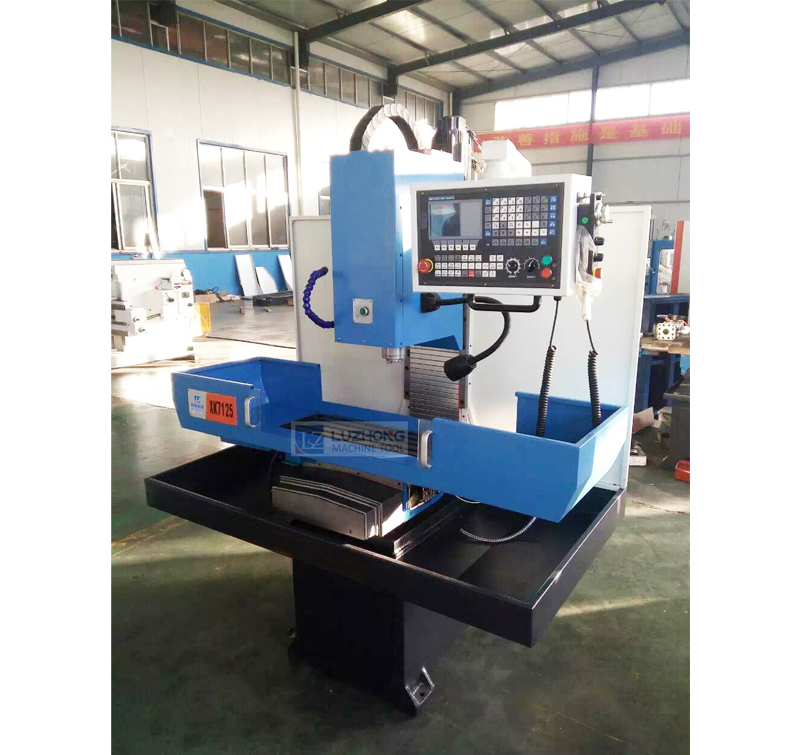

XK7125 CNC Milling Machine / XH7125 Vertical Machining Center

Specifications

Unit

XH7125

XK7125

Table size

mm

900×250

900×250

X-axis travel

mm

450

450

Y-axis travel

mm

260

260

Z-axis travel

mm

380

380

Distance from spindle axis to column surface

mm

330

330

Distance between spindle nose and worktable

mm

50-430

50-430

The vertical tolerance of distance between  spindle nose and worktable

mm

≦0.02

≦0.02

X/Y/Z rapid traverse

M/min

6/5/4

6/5/4

Max.spindle speed

rpm

6000

6000

Spindle taper

BT30

BT30

Main motor power

kw

2.2

2.2

X axis motor torque

N.m

7.7

7.7

Y axis motor torque

N.m

6

6

Z axis motor torque

N.m

6

6

Tool capacity

12 armless type tools magazine

-

Positioning accuracy

mm

0.02

0.02

Repeat positioning accuracy

mm

0.01

0.01

Machine dimension

mm

2200×1650×2200

1200×1500×2100

Machine weight

kg

1800

1400
