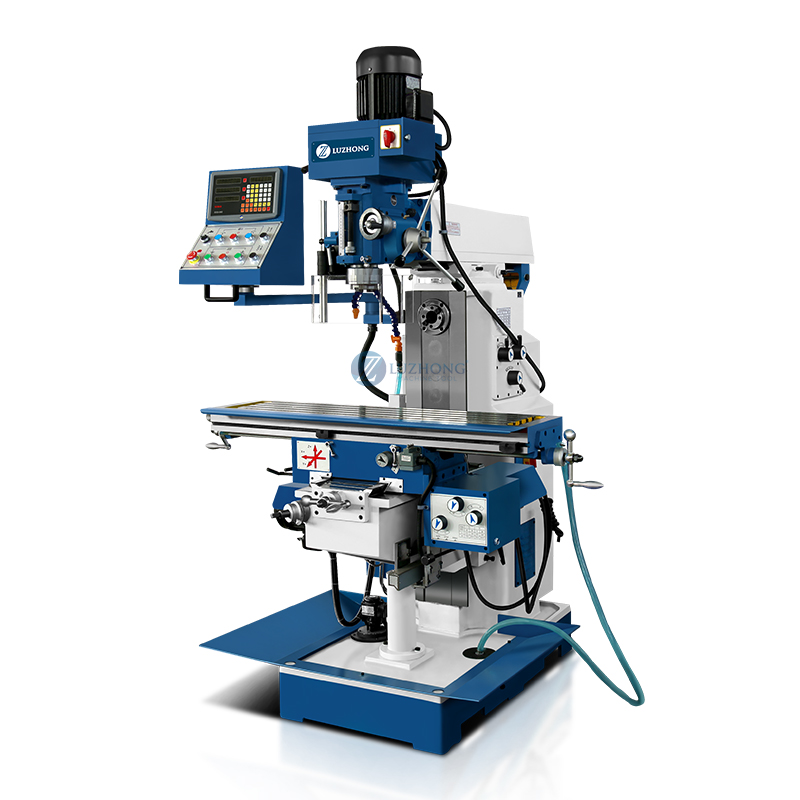

The main performance characteristics：
1.Gear transmission for vertical/hozizontal milling head
2.X axis auto feed,Y/Z axis manual feed
3.Headstock swivel +/-45°
4.Guide way with sparking quenching
Product main technical parameters:
Specifications(mm) | ZX6350Z |
Max. drilling dia.(mm) | 50 |
Max. end milling width(mm) | 100 |
Max. vertical milling dia.(mm) | 25 |
Max.boring dia.(mm) | 120 |
Max. tapping dia.(mm) | M16 |
Distance from spindle nose to table surface(mm) | 80-460 |
Spindle taper | ISO40 |
Spindle speed range(r.p.m) | 90-2000(V) 40-1300(H) |
Spindle travel(mm) | 120 |
Table size(mm) | 1200×280 Optional: 1500x280 |
Table travel(mm) | 600×280 Optional: 1000x280 |
Table feed speed(mm/min) | X:16-480 |
Overall dimensions (mm) | 1500×1600×2200 |
Spindle motor power (kw) | 1.5/2.2(V) 3(H) |
Machine weight (kg) | 1300/1400 |
