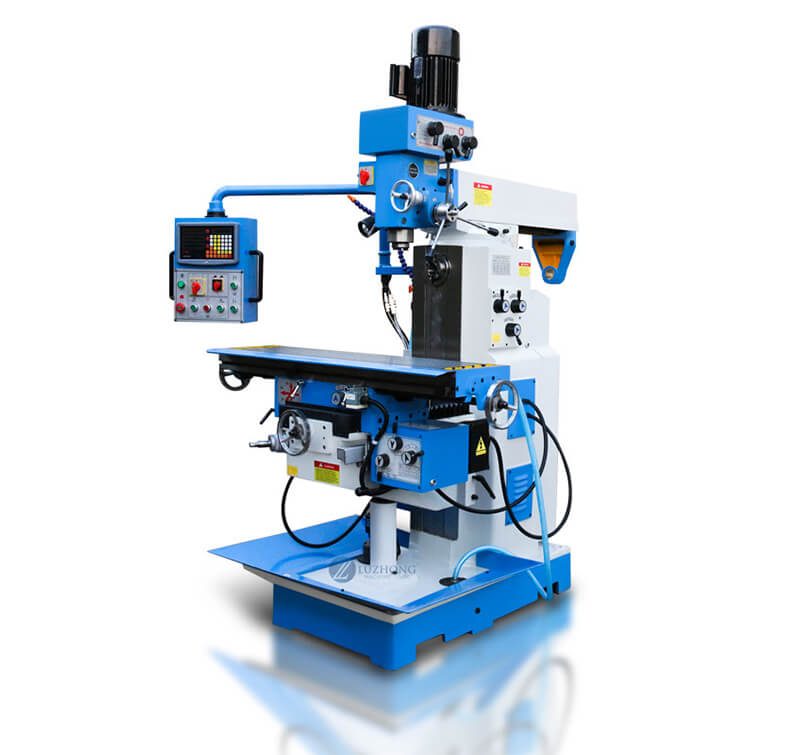

The main performance characteristics：
Gear drive for vertical milling / horizontal milling,
Workbench X axis automatic feed , Y/Z manual feed (ZX7550W X/Y/Z manual feed )
Milling head can be rotated 45 degrees,
Spark quenching machine.
Application：
Widely used in single or batch is machinery manufacturing industry; instrument; building decoration and repair department.
Product main technical Specifications:
Specifications | Units | ZX7550C |
Workbench size | mm | 950x250 |
Workbench travel | mm | 500x240 |
Workbench vertical travel | mm | 380 |
Vertical milling capacity | mm | 32 |
Face milling capacity | mm | 100 |
Drilling capacity | mm | 50 |
Longitudinal feeds range | mm/min | 24-720 |
Vertical milling spindle travel | mm | 120 |
Spindle nose to table surface distance | mm | 0-380 |
Travel of movable arm | mm | 300 |
Vertical milling spindle taper | MT | MT4 |
Horizontal milling spindle taper | MT | - |
Vertical milling spindle speeds | r/min | 115-1750(8 rank) |
Horizontal milling spindle speeds | r/min | - |
Vertical milling motor | KW | 1.5 |
Main motor | KW | 1.5 |
Overall dimensions(Lx W x H) | mm | 1200x1270x2050 |
Net weight | KG | 850 |
