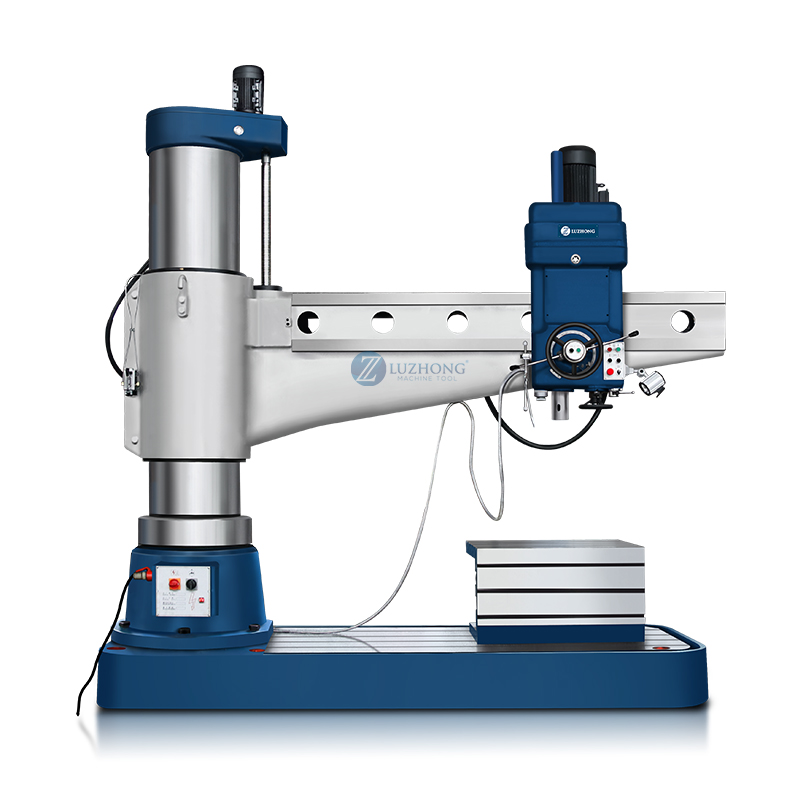

Product main technical specifications:
specifications | Z30100x31 |
Max. drilling diameter(mm) | 100 |
Distance between spindle axis and column surface(mm) | 570-3150 |
Distance form spindle nose to table surface(mm) | 750-2500 |
Spindle travel(mm) | 500 |
Spindle taper | NO.6 |
Spindle speeds range(r/min) | 8-1000 |
Spindle speed step | 22 |
Spindle feeding range(r/min) | 0.06-3.2 |
Spindle feeding step | 16 |
Table size(mm) | 1250X800X630 |
Headstock level migration distance(mm) | 2580 |
Max.torque spindle(mm) | 2450 |
Spindle motor power(kw) | 15 |
Racking shaft heave height(mm) | 1250 |
N.W./G.W. | 20000kg |
Overall dimensions(L*W*H) | 4660×1630×4525mm |
