The main performance characteristics：
Centralized mechanical variable speed
Low Speed
Large travel
Mechanical transmission
Mechanical clamping
Automatic take-off and landing
Automatic feed
Product main technical parameters:

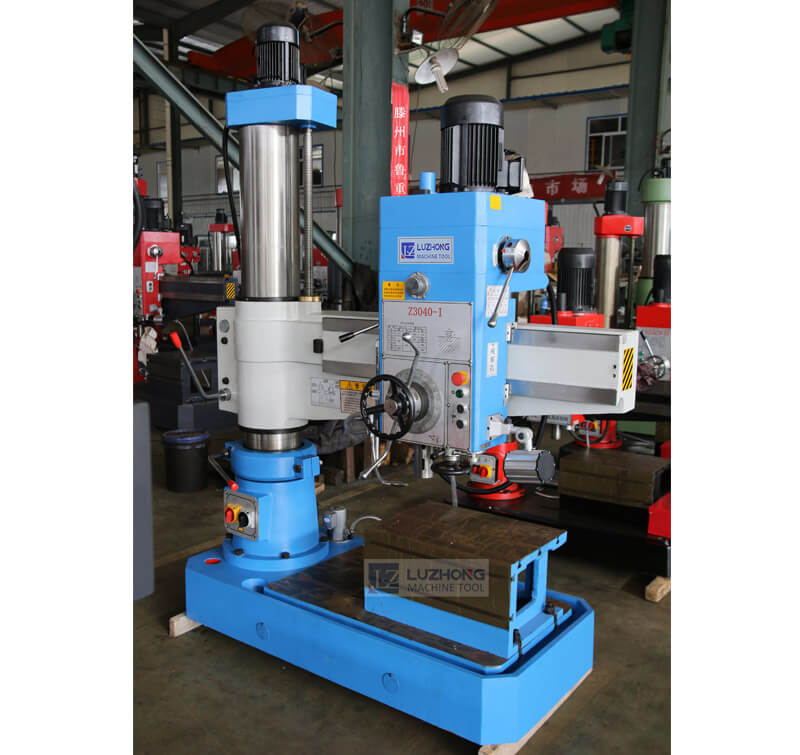

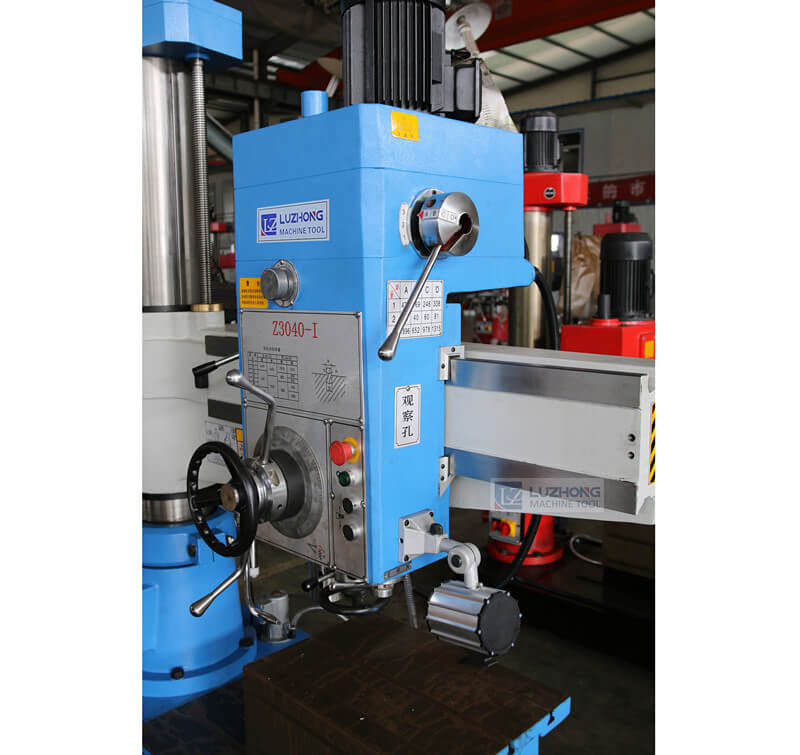

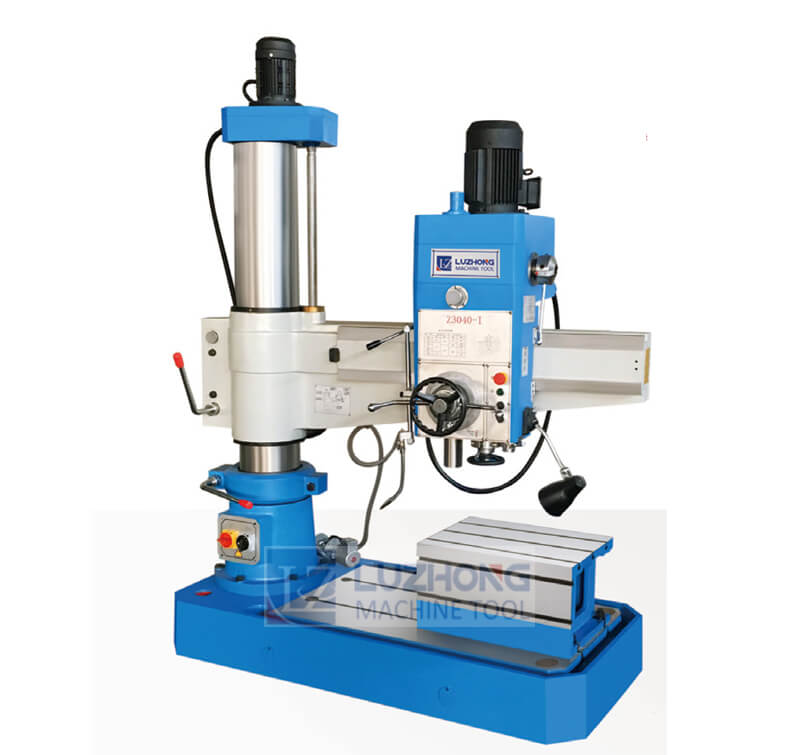

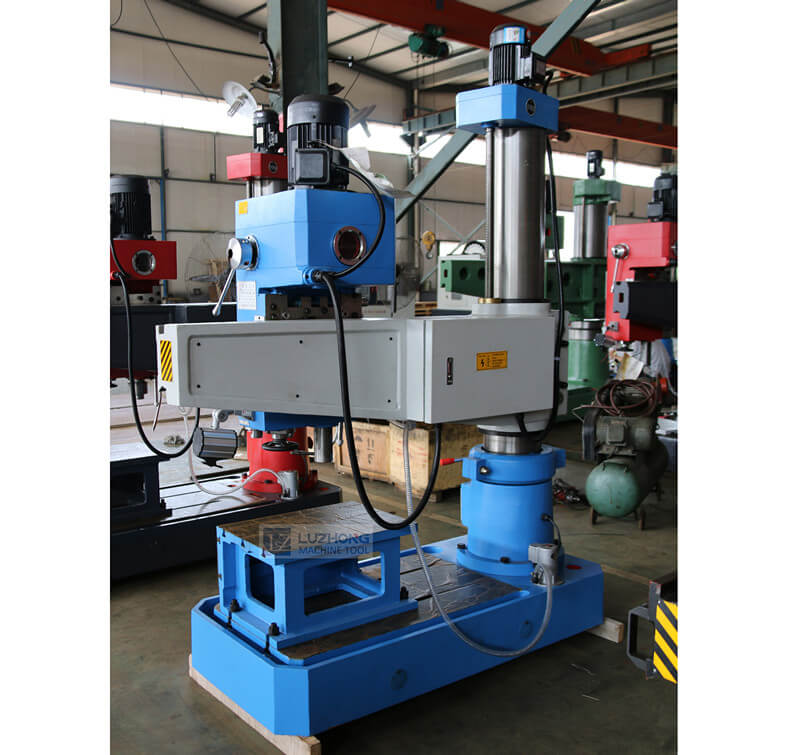

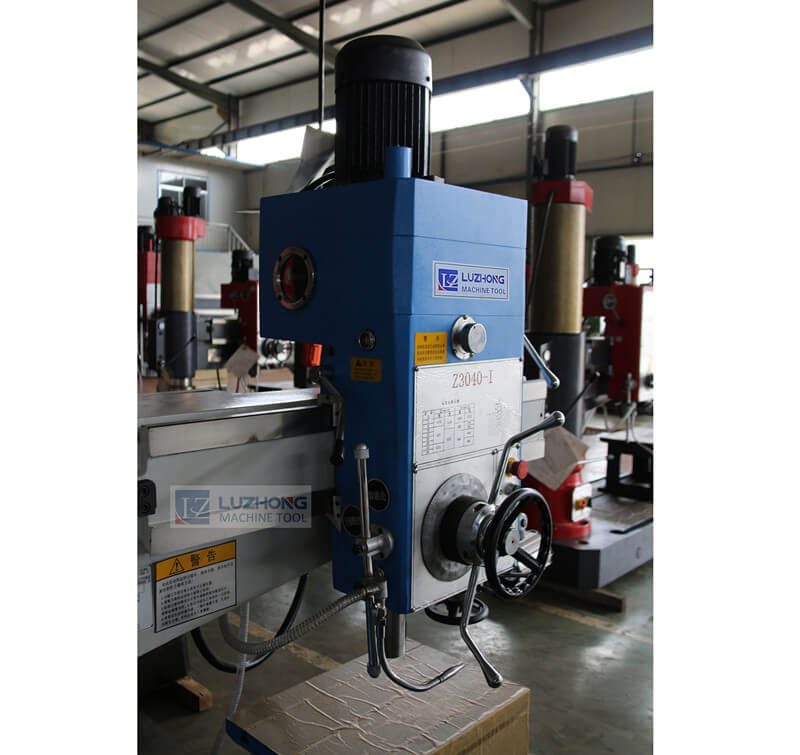

SPECIFICATIONS | Z3040×11/I |
Max.drilling dia(mm) | 40 |
Headstock level migration distance (mm) | 715 |
Distance from spindle axis to column surface (mm) | 330-1050 |
Under the main axle is away from the end surface to the basic skills left side of (mm) | 170-1110 |
Rocking shaft heave height(mm) | 700 |
Rocker vertical moving speed(m/mm) | 1.32 |
Rocker rotary angle ° | ±90° |
Spindle taper(MT) | MT4 |
Spindle speeds range(r/mm) | 40-1896 |
Spindle speed steps | 12 |
Spindle feeding range(mm/r) | 0.13-0.54 |
Spindle feeding steps | 4 |
Spindle travel(mm) | 260 |
Maximum torque spindle(N) | 200 |
Maximum resistance to the spindle(N) | 10000 |
Spindle motor power(kw ) | 2.2 |
Weight(kg) | 1600 |
Overall dimensions of machine(L×W×H) (mm) | 1655×720×2200 |
