Product main technical parameters:

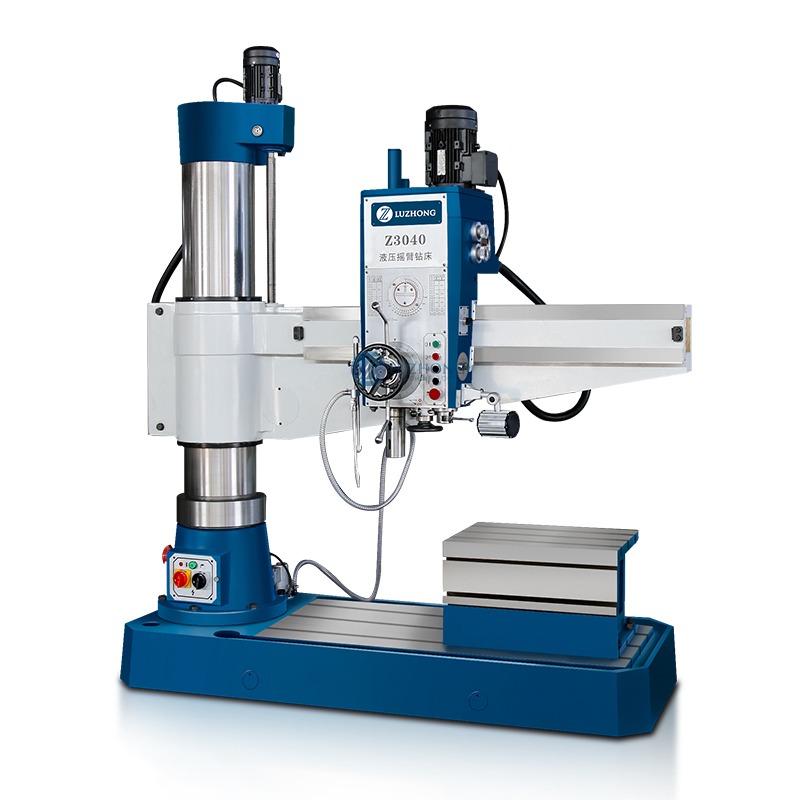

SPECIFICATIONS | Z3040X14/III |
Max.drilling dia(mm) | 40 |
Distance from spindle axis to column surface (mm) | 350-1370 |
Headstock travel (mm) | 1015 |
Distance from spindle nose to table surface (mm) | 260-1210 |
Spindle taper(MT) | 4 |
Spindle speed steps | 16 |
Spindle speeds range(r.p.m) | 32-2500 |
spindle travel (mm) | 270 |
Spindle feeding steps | 8 |
Spindle feeding range(mm/r) | 0.10-1.25 |
Rocker vertical moving speed(mm/min) | 1.27 |
Rocker rotary angle | ±90° |
Maximum resistance to the spindle(N) | 12250 |
Main motor power(kw) | 2.2 |
Movements motor power (kw) | 0.75 |
N.W/G.W(Kg) | 2200 |
Dimension machine(L×W×H) (mm) | 2053 x820x2483 |
