Product description:
1.This vertical drilling machine is universal type machine tool. This machine is suitable for drilling, reaming, milling, drilling, boring, tapping countersunk hole etc.. Automatic reverse feed spindle tapping and fretting, for blind and deep hole is very convenient. Widely used in machinery manufacturing, workshop production and construction processing, etc..
2.This machine tool has the advantages of high efficiency, good rigidity, high precision, low noise, wide speed range, high speed operation, novel appearance, convenient maintenance and so on.
Product main technical specifications：
Specifications | Z5140B | Z5140B-1 |
Max drilling diameter(mm) | 40 | 40 |
Spindle taper | MT4 | MT4 |
Spindle travel | 250 | 250 |
Spindle box travel(manual)(mm) | 200 | 200 |
Spindle speed (steps) | 12 | 12 |
Spindle speed range(r.p.m) | 31.5～1400 | 31.5～1400 |
Feed series | 9 | 9 |
Feed range(mm/r) | 0.056～1.80 | 0.056～1.80 |
Table size(mm) | 560x480 | 800x320 |

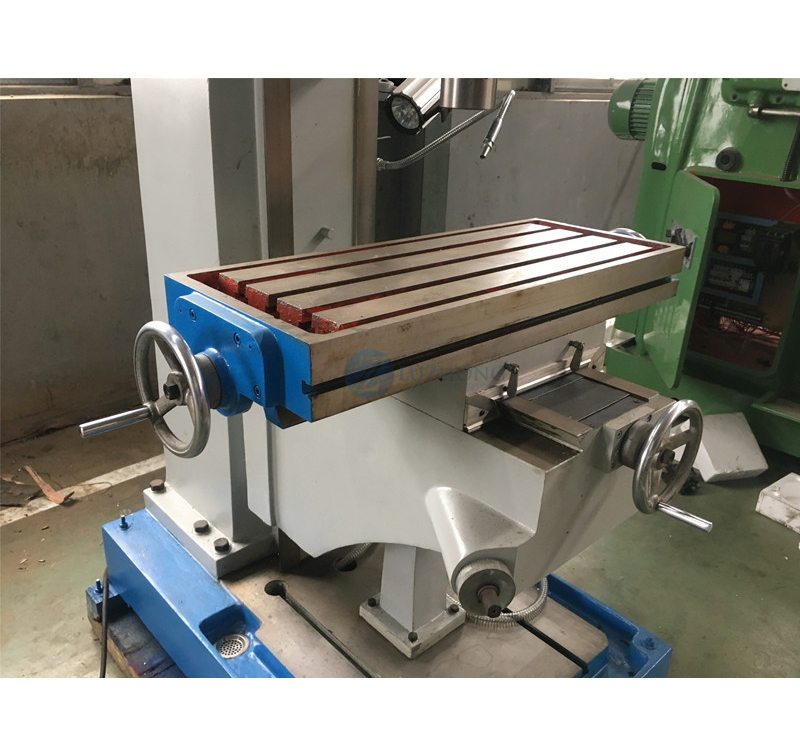

Table longitudinal(cross) travel(mm) | - | 450/300 |
Table vertical travel(mm) | 300 | 300 |
Max distance form spindle nose to table surface(mm) | 750 | 750 |
Main motor power(kw) | 3 | 3 |
Overall size(mm) | 1090 x 905 x2465 | 1300*1200*2530 |
N/W(kg) | 1300 | 1350 |
