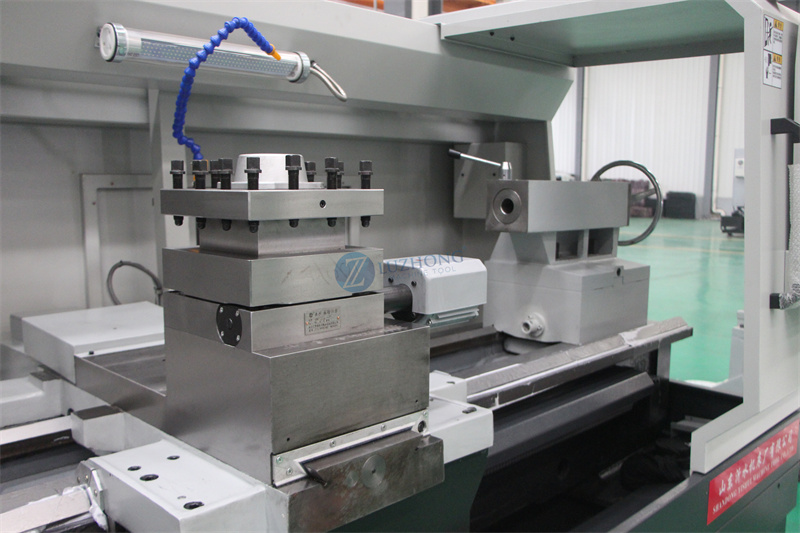

CK61100F Heavy Duty CNC Lathe Machine

Share

specifications :

SPECIFICATIONS

Units

CK61100F



Manual

HYD.

Swing over bed

mm

1000

Swing over cross slide

mm

680

Distance between centers

mm

1000/1500/2000/3000/4000/5000/6000/7000/8000

Guideway width

mm

600

Max. load capacity

T

4

Spindle bore

mm

104

Spindle bore taper

-

Metric φ120/MT5

Spindle nose type

-

C11

Spindle speed steps

-

VF. 3 steps

HYD. 4 steps

Spindle speed range

rpm

20-800

17-800

Chuck

mm

φ400 3-jaw manual

Turret/tool post

-

Electric 4 position

Tool shank size

mm

32*32

X axis travel

mm

520

Z axis travel

mm

850/1350/1850/2850/3850/4850/5850/6850/7850

X axis rapid traverse

mm/min

4000

Z axis rapid traverse

mm/min

6000

Tailstock quill diameter

mm

φ120

Tailstock quill taper

-

MT6

Tailstock quill travel

mm

250

Main spindle motor

kW

15

Coolant pump motor

kW

0.25

Width * Height

mm

2000*2100

Length

mm

3500/4000/4500/5500/6500/7500/8500

Net weight

T

5.0/5.4/5.8/6.6/7.4/8.2/9.0/9.8/10.4
