Specification:

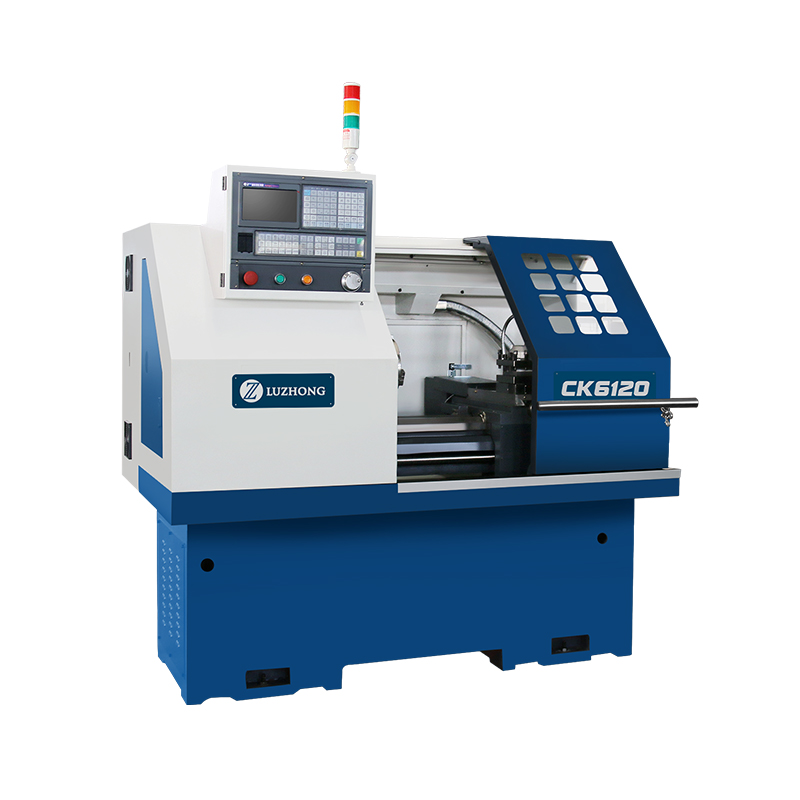

SPECIFICATIONS | Units | CK6120 |
Swing over bed | mm | 190 |
Swing over cross slide | mm | 80 |
Distance between centers | mm | 200 |
Spindle bore | mm | 37 |
Spindle bore taper | - | MT5 |
Spindle nose type | - | A2-4 |
Spindle speed steps | - | Stepless |
Spindle speed range | rpm | 150-2500 |
Turret/tool post | - | Gang type |
Tool size | mm | 16*16 |
X axis travel | mm | 300 |
Z axis travel | mm | 320 |
X axis rapid traverse | mm/min | 8000 |
Z axis rapid traverse | mm/min | 10000 |
Tailstock quill diameter | mm | 45 |
Tailstock quill taper | - | MT4 |
Tailstock quill travel | mm | 50 |
Main motor power | kw | 3 |
Coolant motor power | kw | 0.09 |
Machine weight | kg | 800 |
Overall dimension | mm | 1500*1100*1650 |
