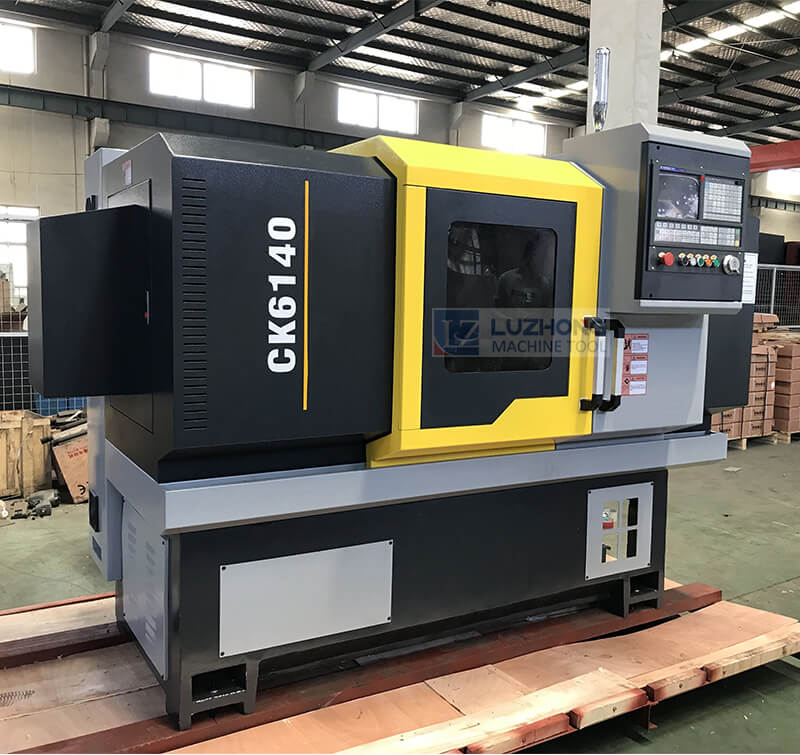

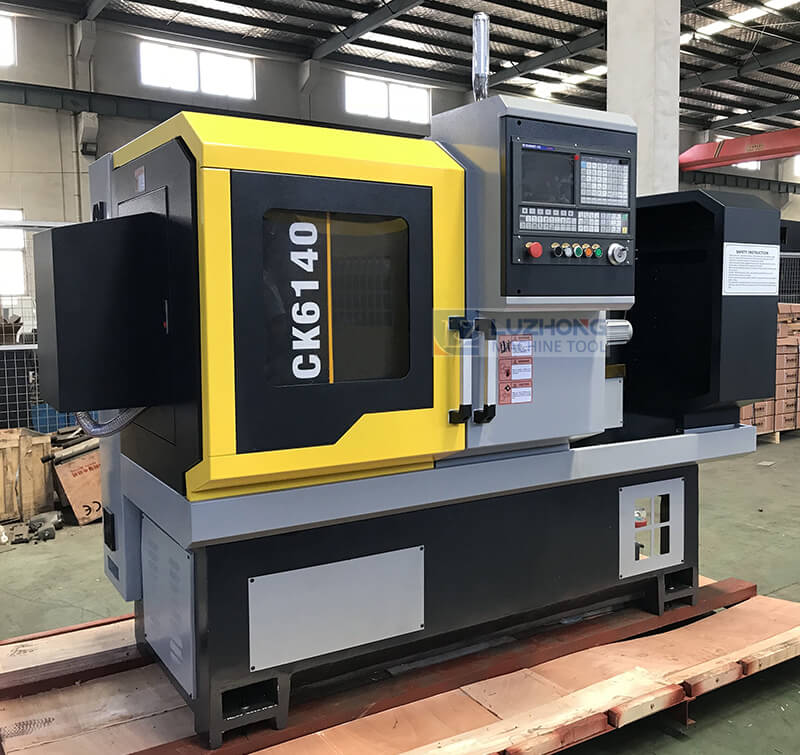

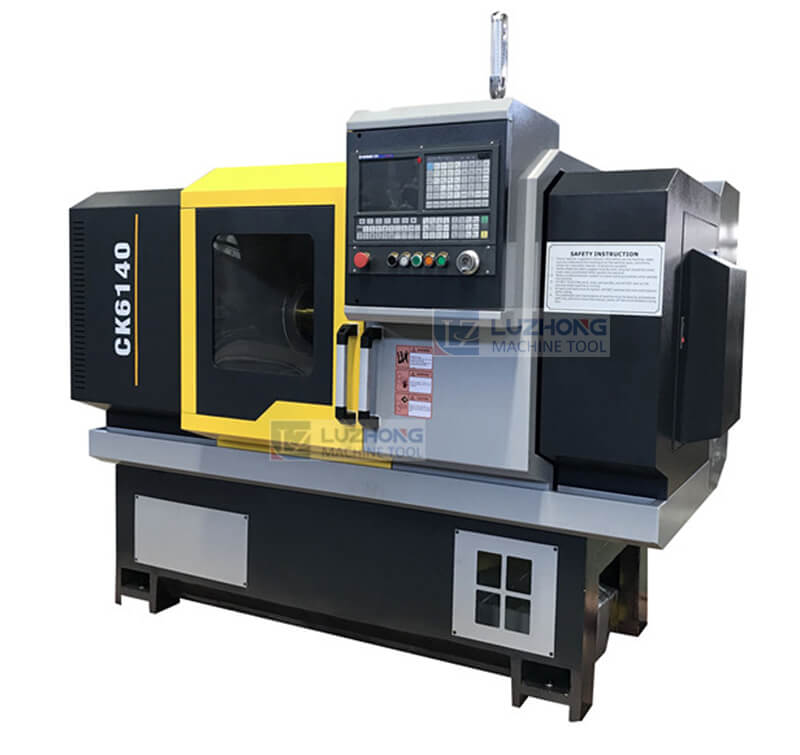

CNC Lathe Machine Features：
Four position electric turret
Frequency conversion stepless speed regulation
Standard configuration :manual chuck
Optional configuration:spring collet ,hydraulic chuck ,automatic feeding device ,gang type tools
CNC Lathe Machine Application：
Machine can automatically process the inside and outside cylinder surface ,cone surface ,circular arc surface ,end face ,such as processing ,and also can process the single and multile threads in metric ,inch and other standards .
CNC Lathe Machine main technical Specifications:
SPECIFICATIONS | Units | CK6140V |
Swing over bed | mm | 400 |
Swing over cross slide | mm | 240 |
Distance between centers | mm | 750/1000 |
Spindle bore | mm | 48(Opt.: 82) |
Spindle bore taper | - | MT6 |
Spindle nose type | - | A2-6(Opt.: A2-8) |
Spindle speed steps | - | Stepless |
Spindle speed range | rpm | 150-2000(Opt.: 150-1800) |
Turret/tool post | - | Eletric 4 position |
Tool size | mm | 20 x 20 |
X axis travel | mm | 280 |
Z axis travel | mm | 750/1000 |
X axis rapid traverse | mm/min | 8000 |
Z axis rapid traverse | mm/min | 10000 |
Tailstock quill diameter | mm | Φ60 |
Tailstock quill taper | - | MT4 |
Tailstock quill travel | mm | 100 |
Main spindle motor | kw | 5.5(Opt.: 7.5) |
Coolant pump motor | kw | 0.09 |
Weight for 550 | kg | - |
Weight for 750 | kg | 1800 |
Weight for 1000 | kg | 2000 |
Dimension for 550 | mm | - |
Dimension for 750 | mm | 2250x1300x1650 |
Dimension for 1000 | mm | 2500x1300x1650 |
