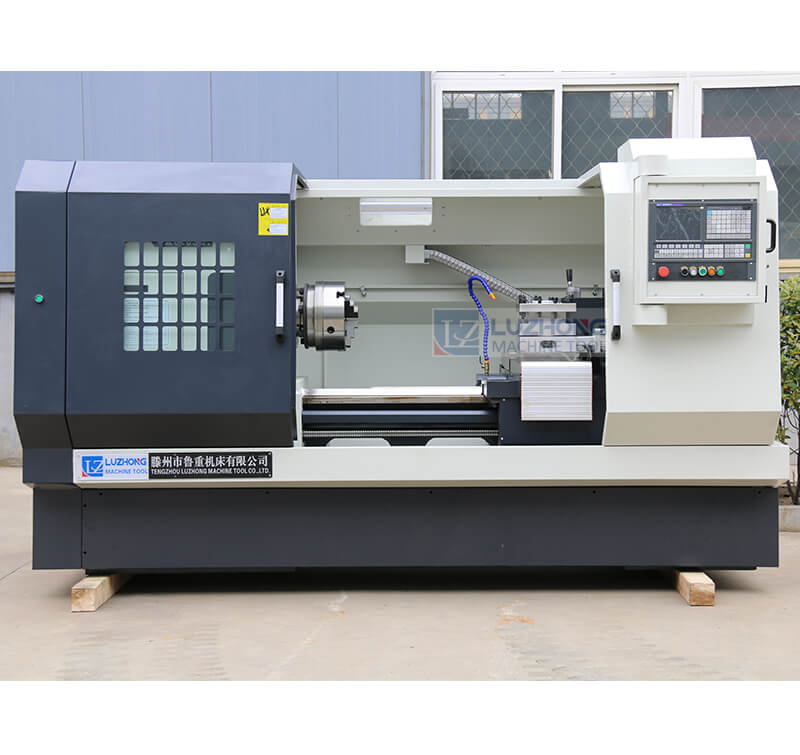

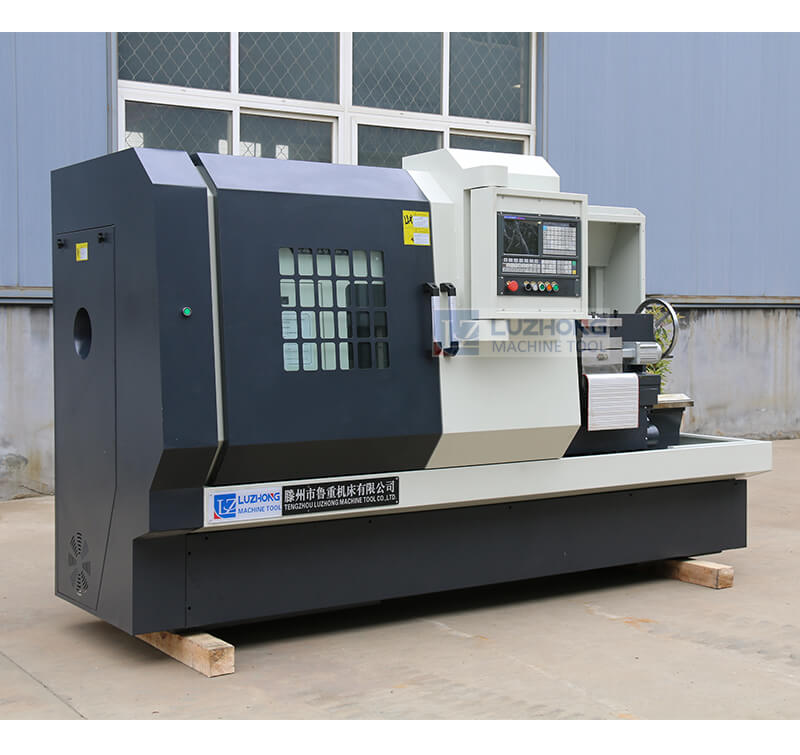

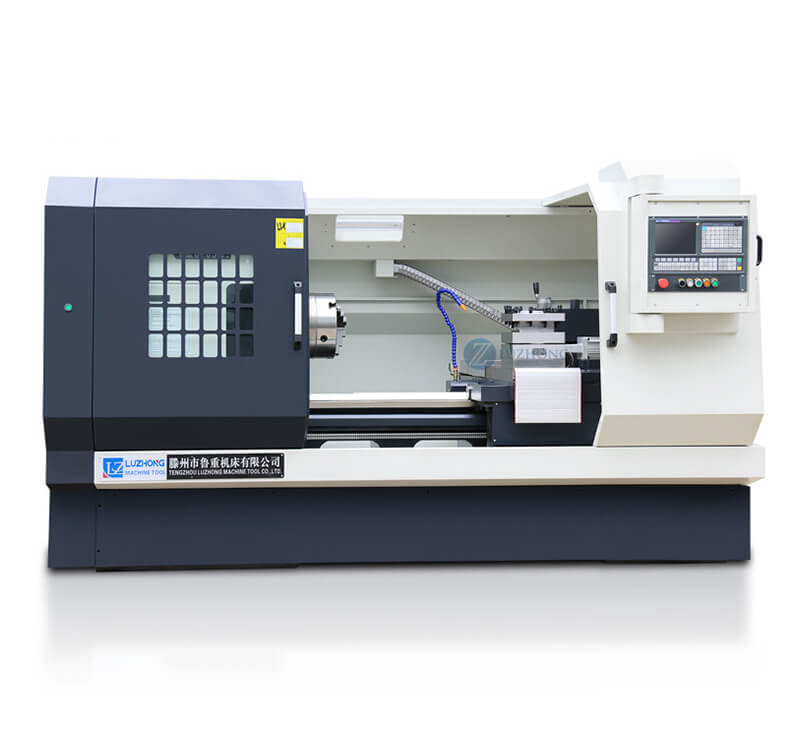

CK6152E CNC Lathe Machine

Inquire Now Next Product

Description

Product application:

The machine through the numerical control system,this machine could process different inner bore,ex-circle,circular conical surface and screw thread,especially suitable for the small and middle-sized shaft and plate work piece from rough processing in batch.It has advantages like higher automaticity,simpler programming and higher accuracy.

Product features:

Higher stability one-piece machine bed

3-gear spindle speed,step-less in gear

Higher rigidity pedestal

Wider layer board

Integrated automatic lubrication system

STANDARD ACCESSORIES

Eletric 4 position,3-jaw manual, manual tailstock, automatic lubrication, coolant pump, semi-shield

OPTIONAL ACCESSORIES

Fanuc or other brand CNC controller, hydraulic or power turret, hydraulic tailstock, full-shield

Product main technical specifications:

SPECIFICATIONS	Units	CK6152E
SPECIFICATIONS	Units	Manual
Swing over bed	mm	530
Swing over cross slide	mm	280
Distance between centers	mm	1000/1500/2000/3000
Guideway width	mm	440
Max. load capacity	T	1.5
Spindle bore	mm	90
Spindle bore taper	-	Metric φ100/1:20
Spindle nose type	-	A8
Spindle speed steps	-	3 steps
Spindle speed range	rpm	30-1600
Chuck	mm	φ250 3-jaw manua
Turret/tool post	-	Eletric 4 position
Tool size	mm	25 x 25
X axis travel	mm	300
Z axis travel	mm	1000/1500/2000/3000
X axis rapid traverse	mm/min	6000
Z axis rapid traverse	mm/min	10000
Tailstock quill diameter	mm	75
Tailstock quill taper	-	MT5
Tailstock quill travel	mm	150
Main spindle motor	kw	7.5
Coolant pump motor	kw	0.125
Weight for 1000	kg	3200
Weight for 1500	kg	3400
Weight for 2000	kg	3700
Weight for 3000	kg	4300
Weight for 4000	kg	-
Weight for 5000	kg	-
Weight for 6000	kg	-
Dimension for 1000	mm	2600x1600x1750
Dimension for 1500	mm	3100x1600x1750
Dimension for 2000	mm	3600x1600x1750
Dimension for 3000	mm	4600x1600x1750
Dimension for 4000	mm	-
Dimension for 5000	mm	-
Dimension for 6000	mm	-
