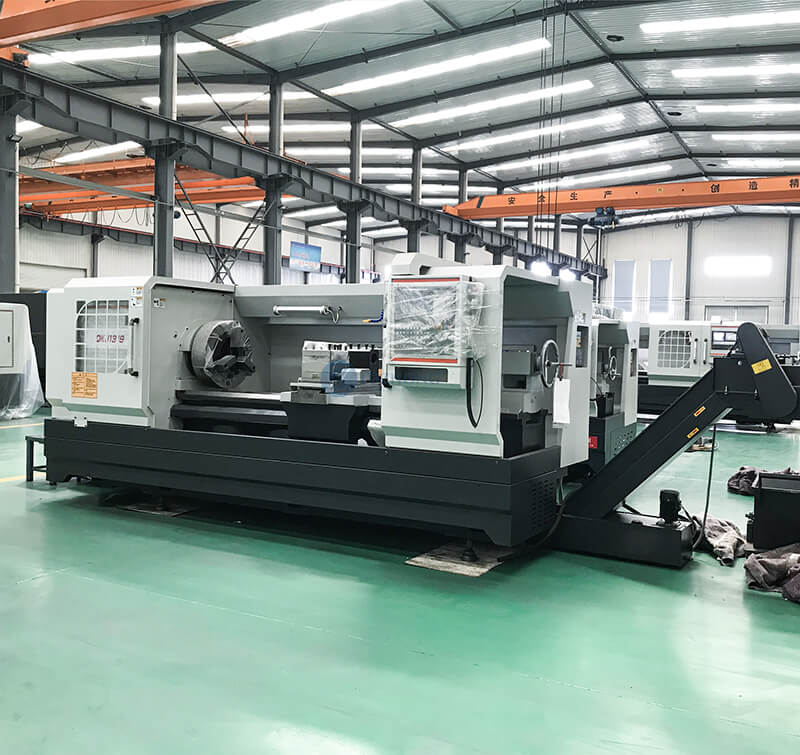

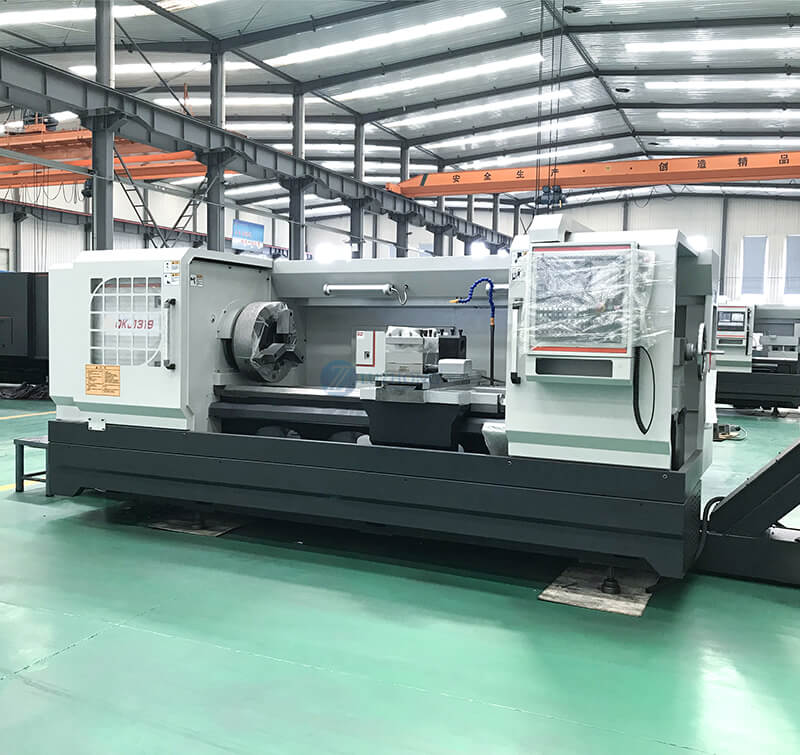

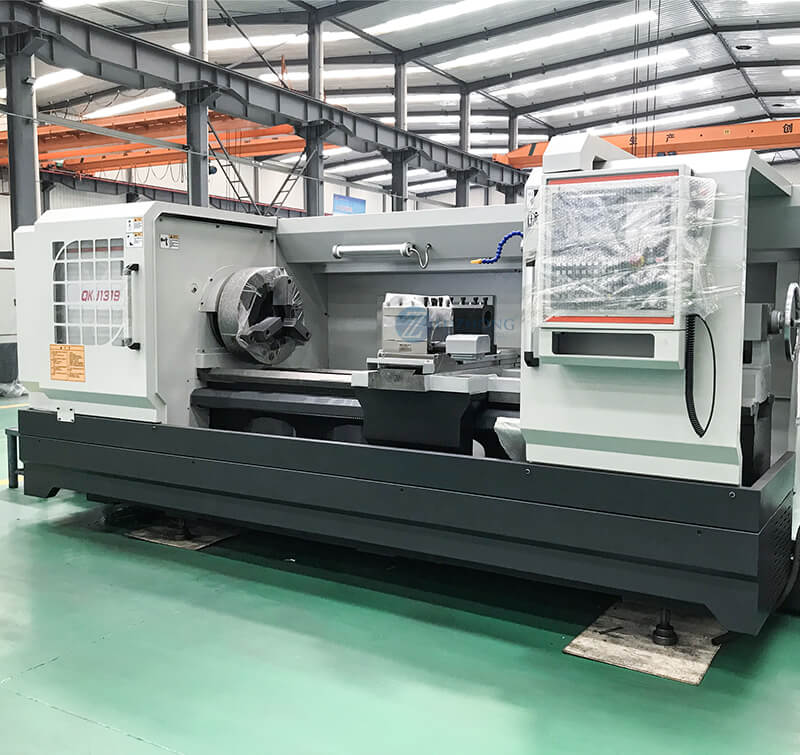

QK1313 CNC Pipe Threading Lathe Machine

Inquire Now Next Product

Description

CNC PIPE THREADING LATHE INTRODUCTION

This series CNC pipe threading lathe machine is mainly designed for processing internal and external pipe threads including metric, inch, module DP and taper threads, as well as having all the common functions of normal CNC lathe such as processing the inner bore and end face of shafts and disks. This series lathe machine is widely used in industries including petroleum exploiting, minerals mining, chemical piping and geological prospecting, it is high-efficiency equipment in processing and repairing drilling pipe, drilling rod, thread coupling and so on.

FEATURES

Big spindle bore and double chuck to ensure process big diameter pipe

One-piece bed adopts high strength iron to ensure rigidity and precision

Ultrasonic frequency quenched guide-ways ensure good wear-resistance

Carriage and guide way contact surface use Turcite B to maintain accuracy

STANDARD ACCESSORIES	OPTIONAL ACCESSORIES
CNC turret 4 position, 3-jaw manual,Tailstock manual, automatic lubrication, coolant pump, semi-shield	Fanuc or other brand CNC controller, quick change tool post, hydraulic turret or power turret, pneumatic chuck, hydraulic tailstock, pneumatic position limiter, tool setting arm, full-shield

CNC Pipe Threading Lathe Machine Specifications

SPECIFICATION	Units	QK1313
Swing over bed	mm	630/800
Swing over cross slide	mm	340/520
Distance between centers	mm	1000/1500/3000
Pipe threading range	mm	30-126
Guideway width	mm	550
Max. load capacity	T	3
Spindle bore	mm	130
Spindle speed steps	-	VF. 3 steps
Spindle speed range	rpm	30-720
Chuck	mm	φ400 3-jaw manual
Turret/tool post	-	CNC turret 4 position
Tool shank size	mm	32 x 32
X axis travel	mm	320/420
Z axis travel	mm	850/1350/2850
X axis rapid traverse	mm/min	4000
Z axis rapid traverse	mm/min	6000
Tailstock quill diameter	mm	φ100
Tailstock quill taper	-	MT5
Tailstock quill travel	mm	250
Main spindle motor	kW	11
Coolant pump motor	kW	0.125
Weight for 1000	kg	4500
Weight for 1500	kg	5000
Weight for 3000	kg	6000
Dimension for 1000	mm	3300x1800x1850
Dimension for 1500	mm	3800x1800x1850
Dimension for 3000	mm	5300x1800x1850
