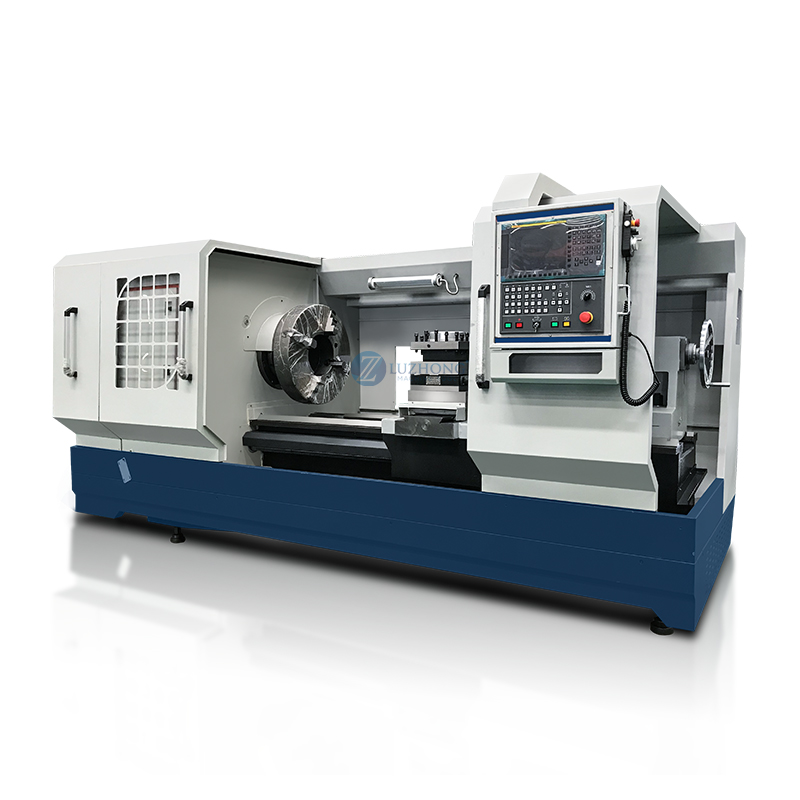

QK1322 CNC Pipe Threading Lathe Machine

Share

Specification

SPECIFICATION

Units

QK1322

Swing over bed

mm

630/800

Swing over cross slide

mm

340/520

Distance between centers

mm

1000/1500/3000

Pipe threading range

mm

50-220

Guideway width

mm

550

Max. load capacity

T

3

Spindle bore

mm

225

Spindle speed steps

-

VF. 4 steps

Spindle speed range

rpm

20-550


Chuck

mm

φ500 3-jaw manual

Turret/tool post

-

CNC turret 4 position

Tool shank size

mm

32 x 32

X axis travel

mm

320/420

Z axis travel

mm

850/1350/2850

X axis rapid traverse

mm/min

4000

Z axis rapid traverse

mm/min

6000

Tailstock quill diameter

mm

φ100

Tailstock quill taper

-

MT5

Tailstock quill travel

mm

250

Main spindle motor

kW

11

Coolant pump motor

kW

0.125

Weight for 1000

kg

4700

Weight for 1500

kg

5200

Weight for 3000

kg

6200

Dimension for 1000

mm

5000x1880x1850

Dimension for 1500

mm

6500x1880x1850

Dimension for 3000

mm

7500x1880x1850
