Application:
This machine is widely used in processing and manufacture the electric appliance ,instrumentation industry ,automobile ,motorcycle ,fastener bearings ,photographic and film machinery ,hardware tools ,watches ,glasses ,stationery ,motors ,valves and gas pipe and other high precise and complex components .It is the ideal high efficient equipment in the hardware machining industry .
Product main technical specifications:

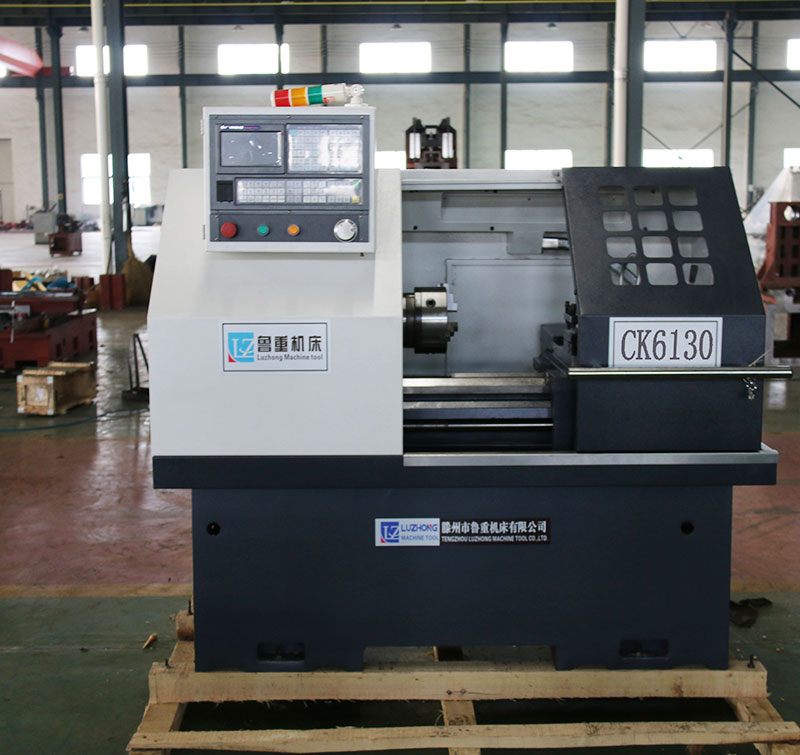

| Specifications | Units | CK6130 | CK6132 |
| Max.swing over bed | mm | 300 | 320 |
| Max. Swing over cross slide | mm | 100 | 110 |
| Max. Processing length | mm | 500 | 500 |
| X/Z travel | mm | 300/500 | 300/500 |
| Spindle bore | mm | 60 or 52 | 60 or 52 |
| Spindle speed | rpm | 100-2000 | 100-2000 |
| Spindle motor | kw | 4 | 4 |
| Coolant pump motor | kw | 0.09 | 0.09 |
| X axis feed speed | R/min | 1-1500 | 1-1500 |
| Z axis feed speed | R/min | 100-3000 | 100-3000 |
| X axis rapid feed speed | R/min | 500-4500 | 500-4500 |
| Z axis rapid feed speed | R/min | 1000-5000 | 1000-5000 |
| Tailstock sleeve travel | mm | 90 | 90 |
| Tailstock taper | MT4 | MT4 | |
| Tool post type | 4 station vertical tool post or 3 gang type tool post | 4 station vertical tool post or 3 gang type tool post | |
| Cutting tool shape size | mm | 20x20 | 20x20 |
| Machine dimension(LxWxH) | mm | 1700×1020×1800 | 1700×1020×1800 |
| Net weight | Kg | 1000 | 1100 |
