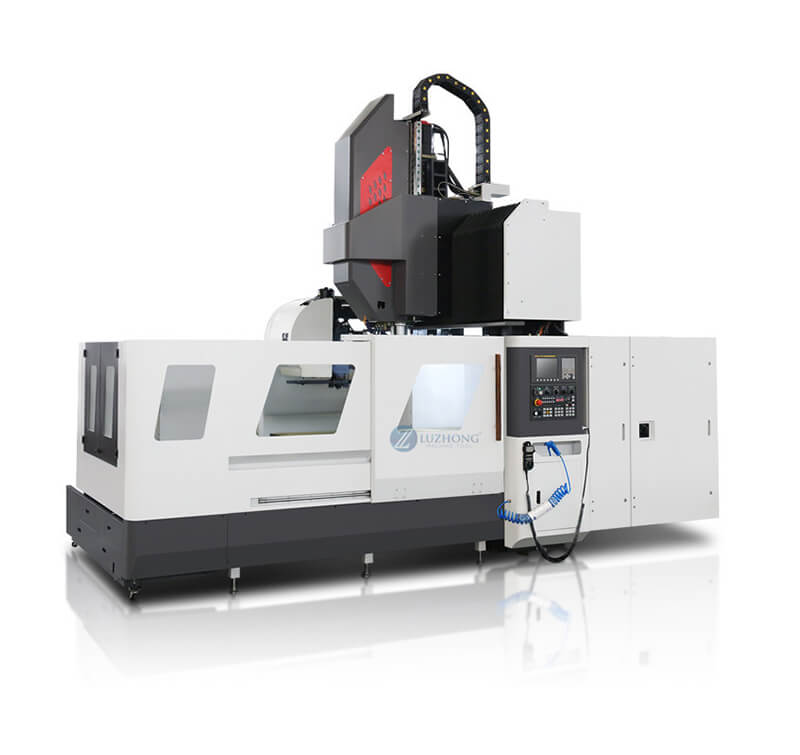

CNC Gantry Milling Machine specifications:
Specifications | Units | GMC1611 |
Table size | mm | 1800x800 |
X axis travel | mm | 1600 |
Y axis travel | mm | 1100 |
Z axis travel | mm | 600 |
Distance from spindle axis to column surface | mm | 406.5 |
Distance between spindle nose and worktable surface | mm | 140-740 |
Columns distance | mm | 1100mm |
Distance between table and cross beam | 937 | |
T slot(number-width-pitch) | 5-18x140 | |
Max. spindle speed | rpm | 8000 |
Spindle taper | mm | BT40 (Optional:BT50 ) |
Main motor power | kw | 15/18.5 |
Guide rail type | Linear rail | |
X/Y/Z rapid traverse speed | m/min | 12/12/12 |
Max.table load | Kg | 2500 |
Distance from table to floor | mm | Around 800 |
Cutting feed speed | mm/min | 1-10000 |
Positioning accuracy | mm | ±0.005/300 |
Repeat positioning accuracy | mm | ±0.004 |
Tool magazine | Arm 24 | |
Max. tool diameter | mm | φ78 (Adjacent)/ φ120(Apart) Optional: φ112 (Adjacent)/ φ200(Apart) |
Max.tool weight | kg | 8 (Optional: 18) |
Machine weight | kg | 13000 |
Overall dimension | mm | 4500x3000x3600 |
