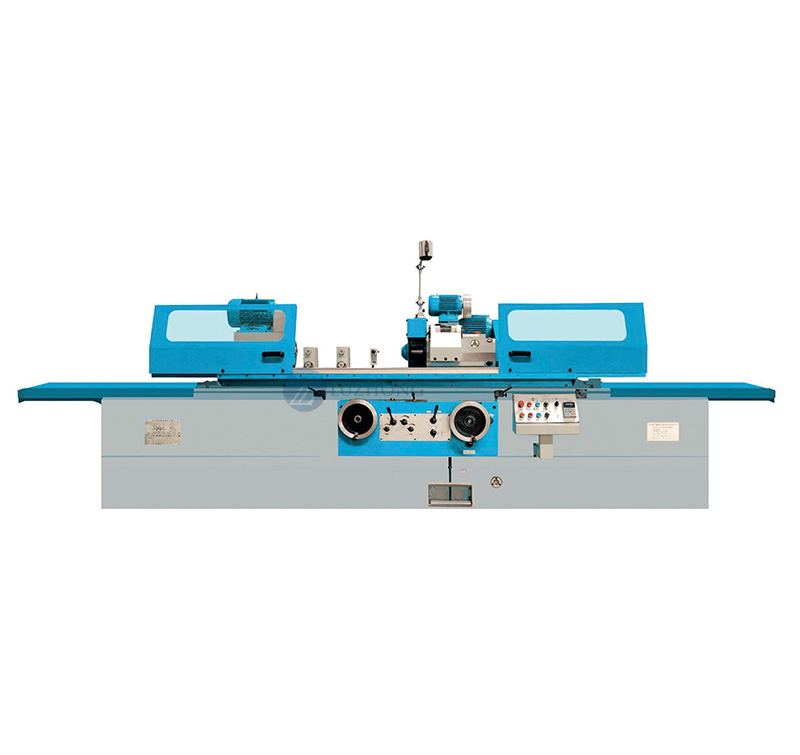

Specifications | Units | M1432B |
Distance between centers | mm | 1000/1500/ 2000/3000 |
Center height | mm | 180 |
Dia. Ground(O.D) | mm | 8-320 |
Dia. Ground(LD) | mm | 30-100 |
Max. length ground(O.D) | mm | 1000/1500/2000/3000 |
Max. length ground(LD) | mm | 125 |
Max. weight of work piece | kg | 150 |
Swiveling angle | ° | +90° |
Center taper | MT | 4 |
Spindle speed | r/min | 50HZ:25〜220 Stepless |
Swiveling angle | r/min | 1670 |
Wheelhead rapid travel | mm | 50 |
Max. travel | mm | 246 |
Swiveling angle | ° | -30° |
Hand feed per rev | mm/rev | rough：2 |
Hand feed per gra | mm/gra | rough：0.01 |
Wheel size (ODxWxID) | mm | 400 * 50 * 203(1000/1500)、500*50*203(2000/3000) |
Peripheral velocity | m/s | 35 |
Spindle speed | r/min | 10000/15000 |
Wheel size (OD*W*ID) | mm | Max.:50*25*13 |
Hand feed per rev | mm/rev | 6 |
Cockwise | ° | 3° |
Anticlockwise ° | ° | 7° (1000) |
Longitudinal speed range of table | m/min | 0.1-4 |
Center taper | MT | 4 |
Quill travel | mm | 30 |
Wheelhead motor power | kw | 5.5 (1000/1500) |
Internal grinding | kw | 1.1 |
Workhead motor power | kw | 1.5 |
Machine weight | kg | 53000 (1000) |
Overall dimension(L * W * H) | mm | 3260*2000*2050 (1000) 4260*2000*2050 (1500) 5400*2000*2050 (2000) 7390*2000*2050 (3000) |
