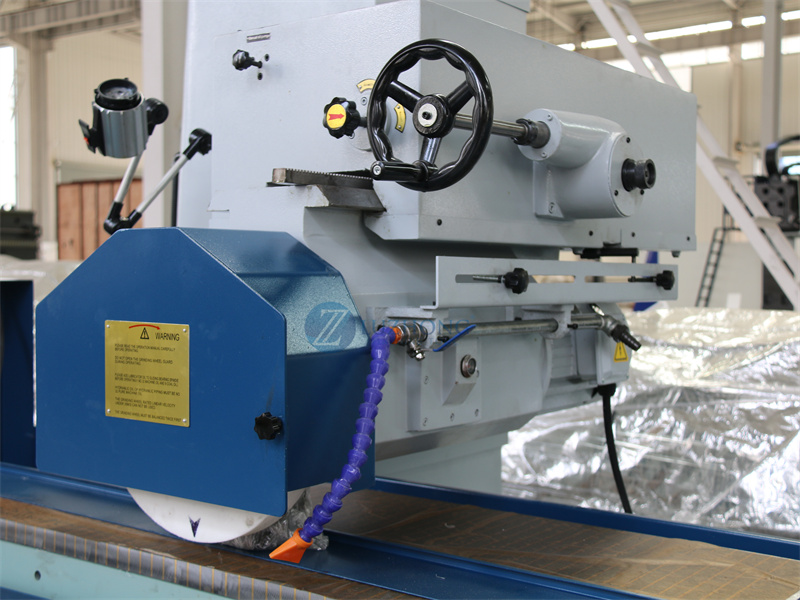

M7150 Hydraulic Surface Grinding Machine

M7150 Hydraulic Surface Grinding Machine

Inquire Now Next Product

Description

The main performance characteristics：

The screw rod of the machine tool is made of special alloy steel through strict processing and heat treatment technology.

Grinding head vertical rapid lifting, improve production efficiency.

The grinding head lateral movement driven by hydraulic motor, which can also be manually.

The lifting mechanism and the triangle bracket adopt eccentric design, which is easy to adjust, and greatly prolong the service life of the machine tool.

Application：

Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.

The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.

Product main technical parameters:

Specification		Unit	M7150/1250	M7150/1600	M7150/2000
Table size （L*W）		mm	1250*500	1600*500	2000*500
Max. Longitudinal movement of worktable		mm	1350	1700	2100
Max. Distance from the spindle centerline to the worktable surface		mm	800	800	800
Max. Cross movement of grinding herd		mm	540	540	540
Max. Vertical movement of grinding head		mm	500	500	500
Vertical movement of the grinding head by hand wheel	Every lattice	mm	0.01	0.01	0.01
Vertical movement of the grinding head by hand wheel	Each turn	mm	1.00	1.00	1.00
Rapid lifting motor	Power	KW	0.37	0.37	0.55
Rapid lifting motor	Speed	r/min	1440	1440	1440
T-slot of table		mm*n	18*3	18*3	18*3
Table rapid move speed		m/min	3-22	3-22	3-22
Auto feeder speed of table front and back (Stepless)		m/min	0.6-10	0.6-10	0.6-10
Abrasive wheel dim (L x D x W)		mm	40012740	40012740	40012740
Speed of grinding wheel		r/min	1440	1440	1440
Power of spindle motor		KW	7.5	7.5	7.5
Power of oil pump motor		KW	4	5.5	5.5
Processing accuracy		mm	0.015/1000	0.015/1000	0.015/1000
Surface roughness		um	Ra：0.63	Ra：0.63	Ra：0.63
Machine weight		KG	5000	6000	7500
Package(L x W x H)		mm	350017502450	450021002450	580021002450
