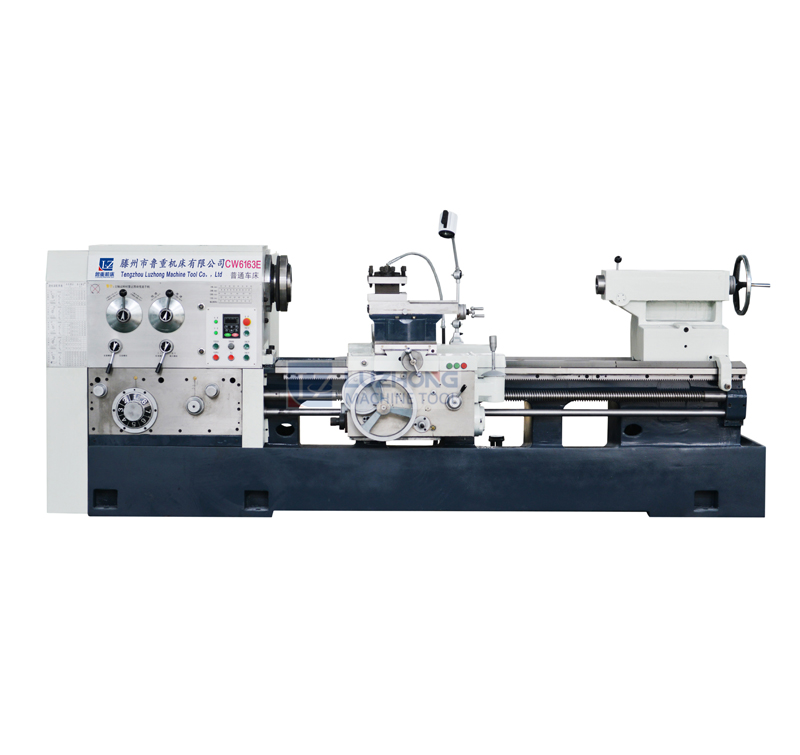

CW6163E Heavy Duty Lathe Machine

Share

Product main features and uses:

This machine can undertake a variety of turning work piece, it can turning the various parts of the outer circle, inner hole, end and metric thread, Whitworth, module thread and pitch diameter of the thread forming surface; in addition, you can also meet drilling, every hole, sets and other materials process requirements. It can also be used in hard cutting tool for powerful cutting, processing a variety of ferrous and non-ferrous metals.2.The width of the side wall of the double bed ribs, inner ribs with box and diagonal reinforcement integral bed structure, high integral rigidity.3.The machine has the advantages of high power, high speed, low noise, strong rigidity, high precision and good accuracy. It also has the advantages of easy operation, flexible operation, convenient operation, safe and reliable. In addition, the machine tool used in the production of brand-name manufacturers of AC frequency conversion speed control device, the four gear step less speed control, in the original ordinary lathe based on the increase of the working accuracy, stable and reliable.4.This machine tool is driven by AC variable frequency speed regulation motor. After sliding gear, I realized that I, II, III, IV four gear shift frequency conversion speed control, which has good torque characteristics and functional characteristics, and the sliding plate has the advantages of fast movement and convenient operation.

Product main technical specification:

ItemSpecificationsUnitsCW6163E
Machining rangeMax.swing over bedmm630
Max.swing over cross slidemm350
Max.turning lengthmm1000-12000
Bed widthmm550
SpindleSpindle nose code
C11(D11)
Diameter of the spindlemm105
Spindle inside tapermmMetric 120 1:20
Range of spindle speedsr/min10-700
Spindle speed series
four gears to change speed ,no grade to change frequency
Feeding systemLongitudinal and transverse feeding number rangemm/r56;0.1-12
Screw pitch
12
Number range of the thread under Metric systemmm44;1-120
Number range of the thread under British systemmm26;14-1 inch
Number range of the module threadmm45;M0.5-M60
Number range of the diametric threadmm24 28-1
Slide fast moving speedmm/min4000
Knife restMax cross travel of turretmm420
Max travel of compound slidemm200
Tool section sizemm32*32
TailstockSleeve diameter of tailstockmm100
Sleeve trip of tailstockmm250
Cone hole taper  tailstock’s sleeveMorseMorse 6
Main motor powerkw11
SizeL*W*Hmm4000*1320*1500
WeightNet weightkg4050
