Specification:
SPECIFICATIONS | Units | HMC630 |

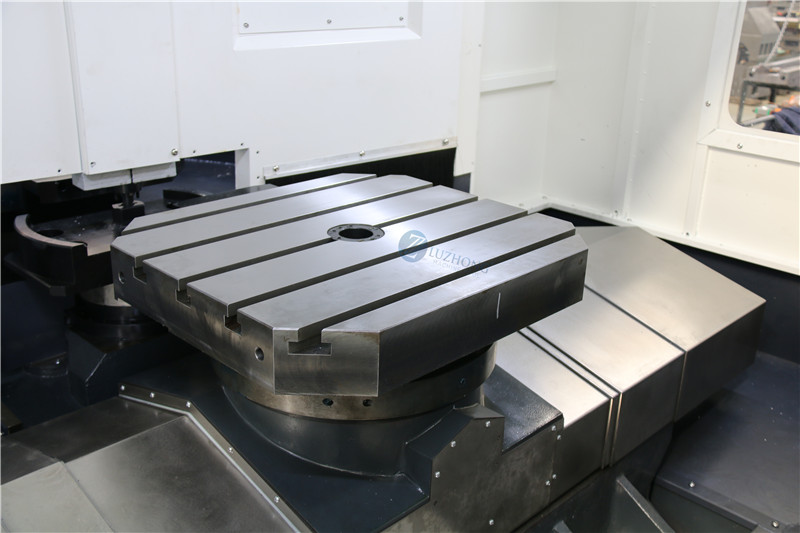

Table size | mm | 630*630 |
X axis travel | mm | 1050 |
Z axis travel | mm | 900 |
Y axis travel | mm | 700 |
Distance from spindle center to table surface | mm | 120-870 |
Distance between spindle nose and table center | mm | 130-1030 |
Table quantity | pcs | 2 |
T slot(number-width*pitch) | mm | 5-22*125 |
Max. worktable load | kg | 800 |
Table indexing | ° | 1°*360 |
Maximum speed of table | r/min | 10 |
Main motor power | kw | 15/18.5 |

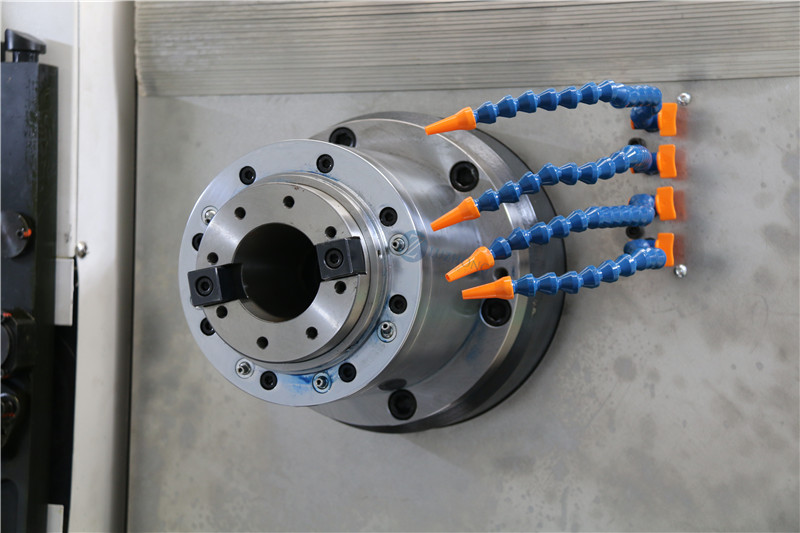

Spindle taper | BT50-190 | |
Max. spindle speed | rpm | 6000 |
Cutting feed speed | mm/min | 1-10000 |
Rapid traverse speed | m/min | 36 / 20/ 24 |
Tool magazine | Arm 30 | |
Max. tool diameter | mm | 112/200 |
Max. tool length | mm | 400 |
Max. tool weight | kg | 18 |
Tool change time (tool to tool) | sec | 3 |
Machine minimum setting unit | mm | 0.001 |
X,Y,Z axis positioning accuracy | mm | 0.012 |
X,Y,Z axis repeat positioning accuracy | mm | 0.008 |
B axis positioning accuracy | ″ | 10″ |
B axis repeat positioning accuracy | ″ | 5″ |
Machine weight | kg | 14000 |
Overall dimension | mm | 6200*4100*3200 |
