Features：
extra rigid saw frame design ensures excellent angular accuracy and low vibration when cutting workpieces with very large diameters;

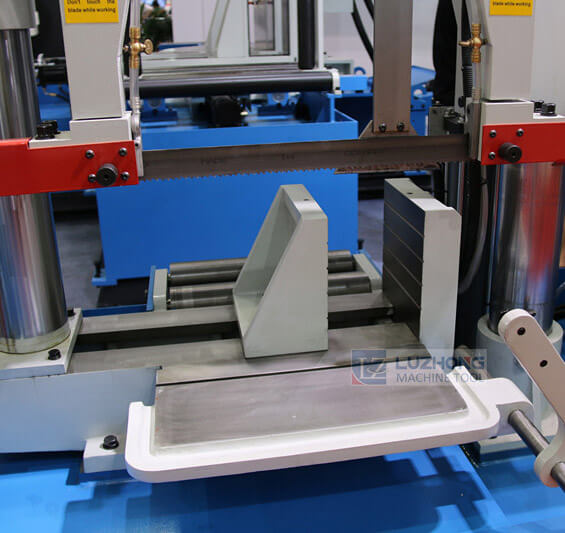

The material support surface features driven feed rollers with extremely high-load capacity ,suitable for very heavy workpiece;
Saw frame lifting adopted double oil cylinder control ,ensuring smooth working;
The heavy saw blade tensioning reduces the workload and helps prevent inaccuracies and premature wear of the saw blade;
One bi-metallic band saw blade and feed roller table are included
Standard equipment :
hydraulic workpiece clamping ,hydraulic blade tensioning ,1 saw blade belt ,material support stand ,coolant system ,work lamp ,operation manual
Optional equipment :
automatic blade breakage control ,fast drop protection devise,hydraulic blade tension ,automatic chip removal device ,various blade linear speed,blade protection covers ,wheel cover opening protection ,Ce standard electrical equipment .
Product main technical specifications:
| Specifications | GH4260 | ||
| Sawing range | Round steel | Φ600mm | |
| Square material | 600×600mm | ||
| Belt saw blade size | 6600x54x1.6mm | ||
| Saw blade speed | 30,50,80m/min | ||
| Motor power | Main motor | 7.5kw | |
| Oil pump motor | 1.5kw | ||
| Cooling pump motor | 0.125kw | ||
| Overall dimension | 3400x1600x2200mm | ||
