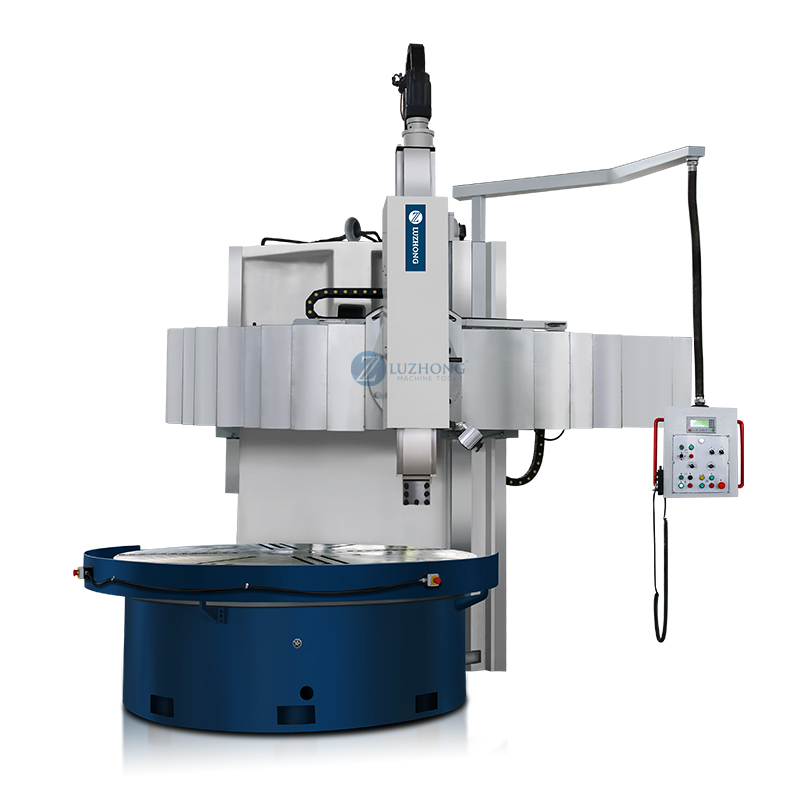

C5112 C5116 C5120 C5123 C5125 C5125 Vertical Lathe

Inquire Now Next Product

Description

Specification	Unit	C5112D	C5116D	C5120D	C5123D	C5125D	C5126D
Table diameter	mm	1000	1400	1800	2000	2250	2250
Max. turning diameter	mm	1250	1600	2000	2300	2500	2600
Max. height of workpiece	mm	1000	1000	1250	1350	1600	1600
Max. weight of workpiece	T	3.2	5	8	8	8	8
Tool section size	mm	30x40	40x40	40X40	40x40	40x40	40x40
Max. Cutting force of vertical tool post	N	25000	25000	25000	25000	25000	25000
Max.torque of table	N·m	25000	25000	32000	32000	32000	35000
Table speed steps		16	16	16	16	16	16
Table speed range	r/min	6.3-200	5-160	3.2-100	3.2-100	2-63	2-62
Vertical tool post feed range		12	12	12	12	12	18
Vertical tool post feed steps	Mm/min	0.8-86	0.8-86	0.8-86	0.8-86	0.8-86	0.2-145
Max.travel of vertical tool post(horizontal)	mm	750	915	1115	1300	1400	1450
Max.travel of vertical tool post(vertical)	mm	650	800	800	800	800	800
Swivel angle of vertical tool post	°	±30°	±30°	±30°	±30°	±30°	±30°
Side tool post travel(horizontal)	mm	630	630	630	630	630	630
Side tool post travel(vertical)	mm	900	900	900	900	900	900
Tool post rapid traverse	mm/min	2000	1800	1550	1550	1550	1550
Max.travel of cross beam	mm	650	650	850	850	1250	1250
Cross beam lifting speed	mm/min	350	350	350	350	320	320
Main motor power	Kw	22	30	30	30	37	37
Cross beam lifting motor power	Kw	2.2	2.2	2.2	2.2	2.2	2.2
Machine weight	T	8.5	13	17	18	23	23
