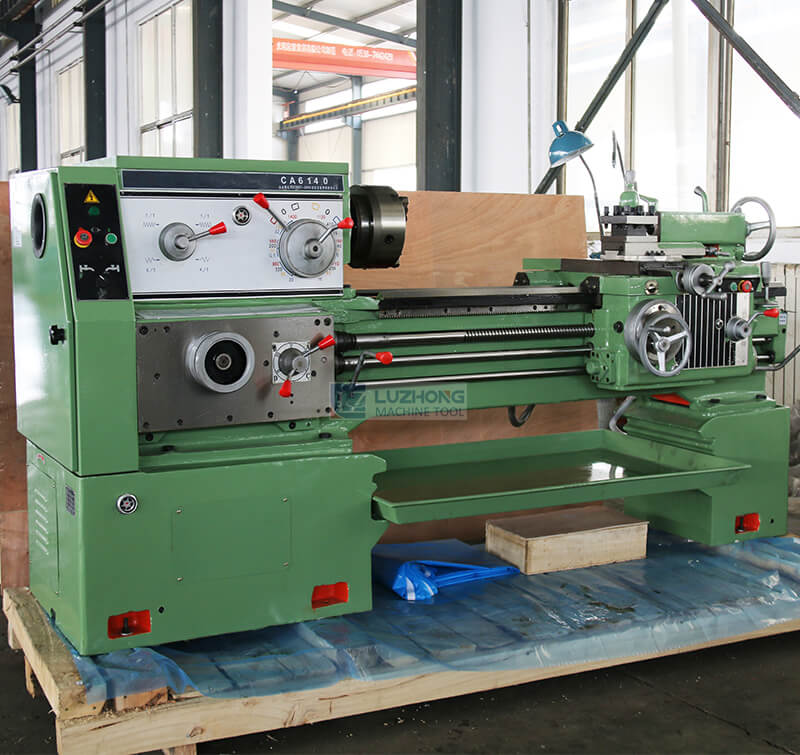

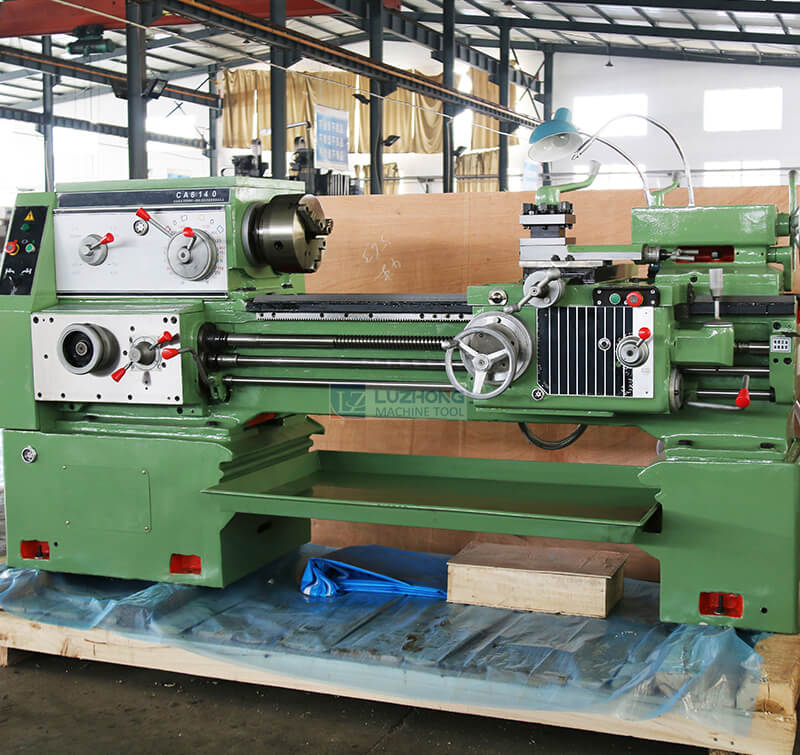

CA6140 Lathe Machine

Share

The main performance characteristics

1  Machine tool head box and bed, tailstock, Supporting plate, etc. the combination of surface between manual scraping, machine to undergo a rigorous inspection, effectively ensure the machine tool accuracy and stability.

2  Machine adopts high strength cast iron, copper and chromium special materials are added, the bed width 400mm, bed rail quenching depth up to 4mm, effectively improves the abradability and stability of the machine.

3  The machine tool bed head box lubrication uses the pump to carry on the circulation forced lubrication, in view of the south hot weather, has guaranteed the bed head box cleanliness and the heat radiation characteristic, has effectively extended the bearing and gear's service life.

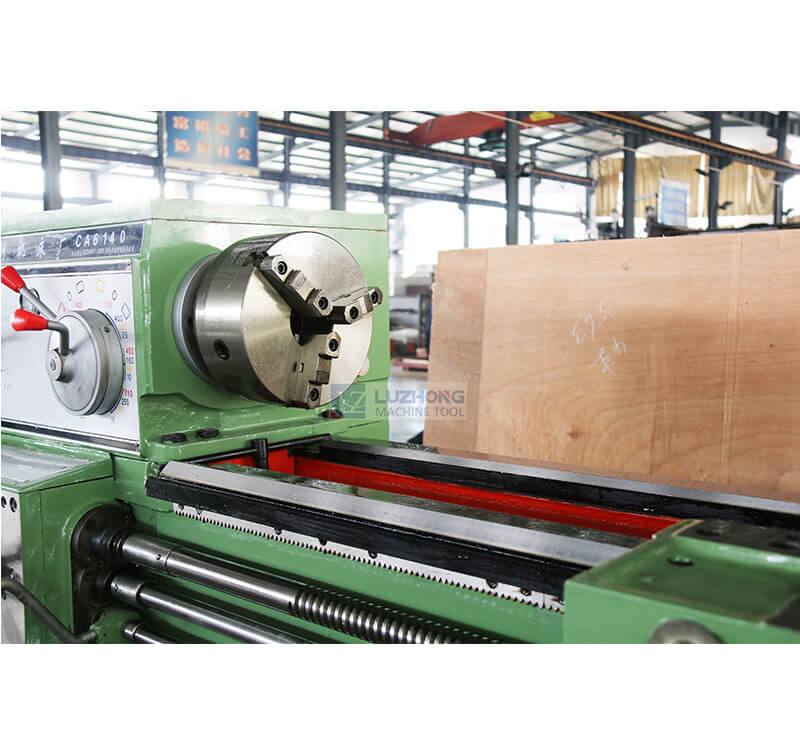

4  Wafangdian Bearing is used in machine tool spindle, the spindle through hole diameter 80mm, machine tool gear with precision grinding, can effectively improve the hardness of the gears, to reduce noise of the machine.

5  Machine tool uses the domestic brand lead screw, the silk mother uses the high quality bronze alloy to guarantee the wear-resisting property and the precision maintenance.

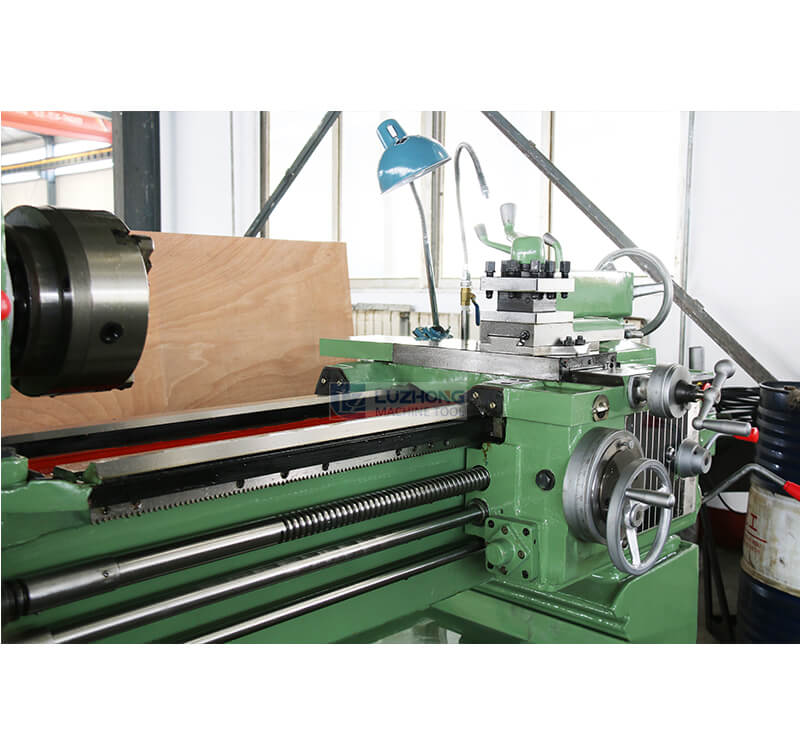

6  The machine adopts high strength four station turret shank size: 25x25mm.

Application

1  CA series ordinary horizontal lathe is used to turning internal and external cylindrical surface, conical surface, and other rotating surface, turning various metric and inch, modulus and pitch thread, and the pitch diameter of the thread and pull the drilling and oil tank etc., is general very strong horizontal lathe, Widely applicable batch processing of various shaft and disc parts.

2  The series lathe bed width in general lathe, 400mm rail width has higher stiffness, rail surface by intermediate frequency quenching, wear-resistant durable.

3  Handy machine operator concentration, slide plate is provided with a quick moving mechanism. Using single handle operation, humanization.

4  The rigidity of the machine tool structure and the transmission stiffness are higher than the general lathe, the power utilization rate is high, which is suitable for the strong cutting.

5  Before leaving the machine tool factory, the machine tool is tested strictly according to the inspection procedure, and the machine tool is tested to ensure that the machine tool has good stability and reliability.



Product main technical parameters:

Specifications

CA6140 CA6140B

Max. Swing over bed

400mm

Max. Swing over carriage

210mm

Max. length of work piece

750mm/1000mm/1500mm/2000mm/2200mm/3000mm/4000mm

Width of bed

400mm

Section of turning tool

25x25mm

Spindle

Spindle speeds

10-1400rpm/16-1400rpm(24steps)

Hole through spindle

52mm. (80mm)

Spindle taper

NO.6(Φ90 120)

Feed

Number of feeds

64 kinds(for each)

Range of metric threads(kinds)

(1-192mm)44kinds

Range of inch threads(kinds)

(2-24tpi)21kinds

Range of module threads(kinds)

0.25-48 (Moduie39kinds)

Range of pitch threads(kinds)

1-96DP(37kinds)

Tailstock

Max. tail stock spindle travel

150mm

Tail stock spindle diameter

75mm

Taper of tail stock spindle center hole

NO.5

Main motor

7.5KW(10HP)

Packing dimensions (L*W*Hmm)

Overall dimensions for750mm

2550x1140x1750

Overall dimensions for1000mm

2700x1140x1750

Overall dimensions for1500mm

3200x1140x1750

Overall dimensions for2000mm

3700x1140x1750

Overall dimensions for2200mm

4030x1140x1750

Overall dimensions for3000mm

4850x1140x1750

Overall dimensions for4000mm

5800x1140x1750

Weight (kg)

Length

G.W  N.W.

Weight for 750mm

2100  1990

Weight for 1000mm

2190  2070

Weight for 1500mm

2350  2220

Weight for 2000mm

2720  2570

Weight for 2200mm

2800  2600

Weight for 3000mm

3300  3200

Weight for 4000mm

3500  3400
