The main performance characteristics:
1 Machine tool bed box, headstock and tailstock, pallet etc. the binding surface between the manual scraping machine, after rigorous testing, the precision and stability of the effective guarantee machine.
2 The machine adopts high strength cast iron, copper and chromium added special materials, bed width 400mm, bed rail quenching depth 4mm, effectively improve the wear resistance and stability of machine tool.
3 Machine tool bed box lubricated system by the use of the lubrication of the pump for lubrication, for the hot weather, to ensure the cleanliness of the bed box and heat dissipation characteristics, effectively extend the bearing and gear life.
4 Machine tool spindle using Wafangdian bearing, spindle hole diameter 52mm, the precision grinding machine tool gear, effectively improve the hardness, reduce machine noise.
5 Machine tool uses the domestic brand screw, wire mother uses the high quality bronze alloy to guarantee the wear resistance and the accuracy retention.
6 Machine tool with four position high strength tool, shank size: 25x25mm.
Application:

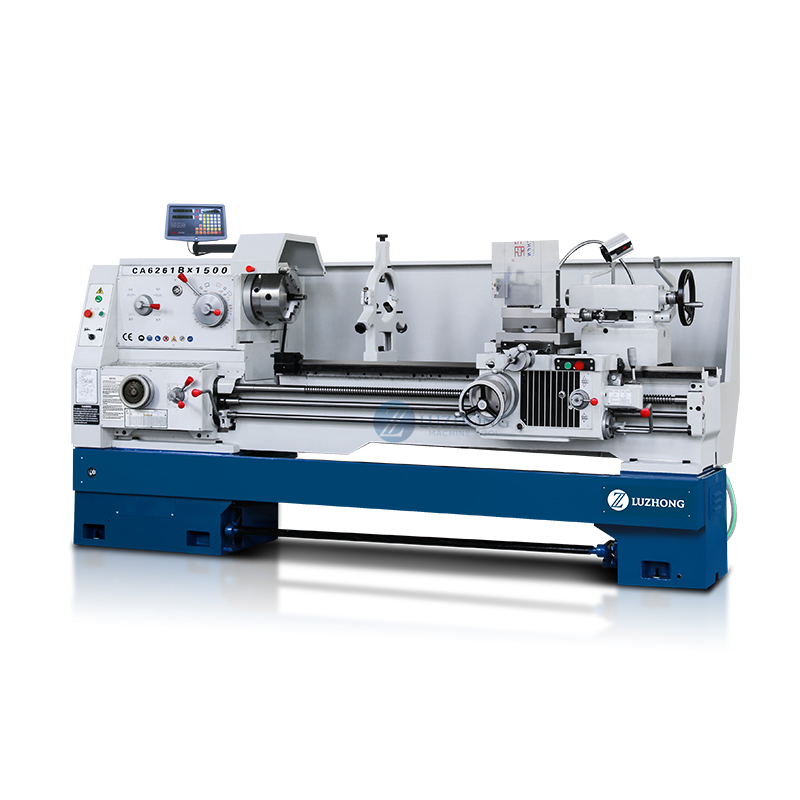

1 CA series of ordinary horizontal lathe is suitable for turning inside and outside cylindrical surface, conical surface and other rotating surface, turning various metric and inch, modulus and pitch thread, and can carry out the work of drilling and pulling oil groove, is a very versatile horizontal lathe, widely used in all kinds of shaft and disc parts of the batch processing.
2 This series of lathe bed width in general lathe, rail width 400mm has a high stiffness; guide rail surface is quenched by medium frequency, and is durable.
3 The machine operation is flexible and concentrated, the apron with fast moving mechanism. Using single handle vivid of the operation, pleasant and good.。
4 Machine tool structure rigidity and transmission rigidity are higher than the general lathe, the power utilization ratio is high, is suitable for the strong cutting.
5 Machine tool factory in strict accordance with the test procedures for testing, and make a strong cutting test, to ensure that the machine has a good accuracy and reliability.
Product main technical specifications:
SPECIFICATIONS | Units | CA6180 | CA6280 |
Swing over bed | mm | 800 | |
Swing over cross slide | mm | 540 | |
Swing over gap | mm | - | 1020 |
Gap length | mm | - | 210 |
Distance between centers | mm | 750/1000/1500/2000/2200/3000/4000 | |
Spindle bore | mm | 52 B:80 C:105 | |
Spindle bore taper | - | MT6 B:90 1:20 C:113 1:20 | |
Spindle speed range | rpm | 10-1400/16-1400 | |
Spindle speed steps | - | 24 | |
Cross slide travel | mm | 320 | |
Top tool post travel | 140 | ||
Tool size | 25*25 | ||
Longitudinal feeds kinds | kinds | 64 | |
Longitudinal feeds range | mm/r | 0.028-6.33 | |
Cross feeds range kinds | kinds | 64 | |
Cross feeds range | mm/r | 0.014-3.16 | |
Longitudinal fast moving | m/min | 4 | |
Cross fast moving | m/min | 2 | |
Kinds of metric threads | kinds | 44 | |
Range of metric threads | mm | 1-192 | |
Kinds of inch threads | kinds | 21 | |
Range of inch threads | T.P.I. | 2-24 | |
Kinds of module threads | kinds | 39 | |
Range of module threads | M.P. | 0.25-48 | |
Kinds of diametral threads hreads | kinds | 37 | |
Range of diametral threads hreads | D.P. | 1-96 | |
Tailstock quill diameter | mm | 75 | |
Tailstock quill taper | - | MT5 | |
Tailstock quill travel | mm | 150 | |
Main motor power | kw | 11 | |
Coolant motor power | kw | 0.09 | |
Weight for 750 | kg | 2400 | |
Weight for 1000 | kg | 2670 | |
Weight for 1500 | kg | 2920 | |
Weight for 2000 | kg | 3170 | |
Weight for 3000 | kg | 4100 | |
Weight for 4000 | kg | 4600 | |
Dimension for 750 | mm | 2440*1150*2000 | |
Dimension for 1000 | mm | 2650*1150*2000 | |
Dimension for 1500 | mm | 3150*1150*2000 | |
Dimension for 2000 | mm | 3650*1150*2000 | |
Dimension for 3000 | mm | 4800*1150*2000 | |
Dimension for 4000 | mm | 5680*1150*2000 |
