  • CZ1440G/1 Lathe Machine

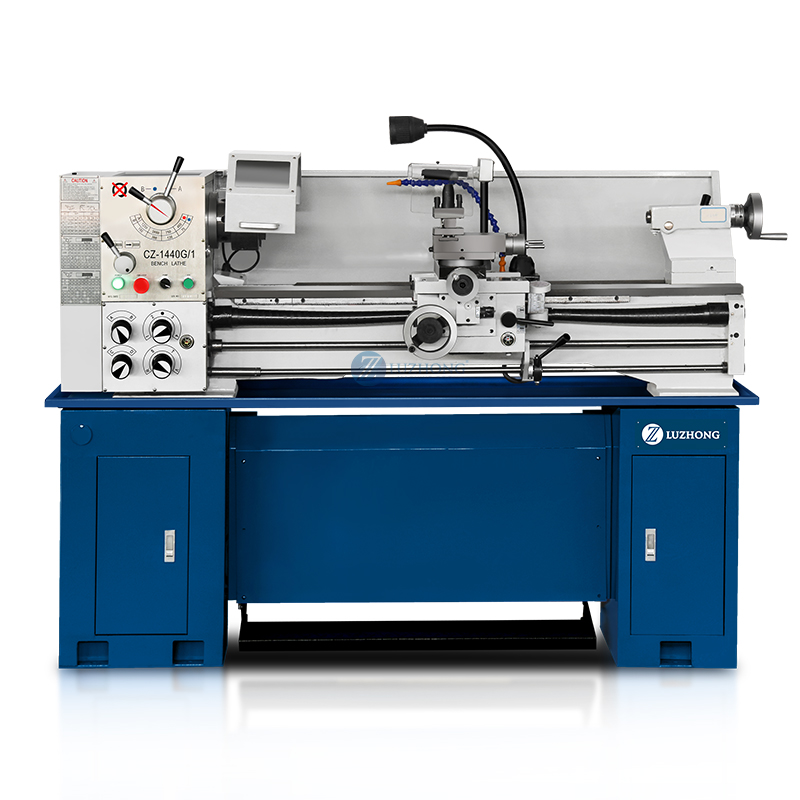

CZ1440G/1 Lathe Machine

Share

Product main technical parameters:

Specifications


CZ1440G/1

Swing over bed

mm

355

Swing over carriage

mm

220

Swing over gap

mm

500

Width of bed-way

mm

186

Distance between centers

mm

1000

Spindle taper


MT5

Spindle bore

mm

38

51

Step of speed


8

8

Range of speed

rpm

70-2000

84-1850

Head nose


D1-4

D5 with D5 chuck

Metric thread

mm

26 kinds(0.4-7)

Inch thread

T.P.I

34 kinds(4-56)

Module thread

M.P

16 kinds(0.35-5)

Diametral thread

D.P

36 kinds(6-104)

Longitudinal feeds

mm/r

0.052-1.392(0.002’’-0.0548’’)

0.091-2.533(0.0036’’-0.1005’’)

Cross feeds

mm/r

0.014-0.38(0.00055’’-0.015’’)

0.025-0.69(0.0012’’-0.0345)

Diameter of lead screw

mm

22

Pitch of lead screw


3mm or 8 T.P.I

Saddle travel

mm

1000

Cross travel

mm

170

160

Compound travel

mm

74

70

Barrel travel

mm

95

Barrel diameter

mm

32

Taper of center

mm

MT3

Motor power

Kw

1.5(2HP)

Coolant motor

Kw

0.04(0.055HP)

Machine(L×W×H)

mm

1920x760x760

Stand (left)(L×W×H)

mm

440x410x700

Stand (right)(L×W×H)

mm

370x410x700

Machine(N.W/G.W)

Kg

505/565

Stand(N.W/G.W)

Kg

70/75
