  • X6226 Swivel Head Milling Machine

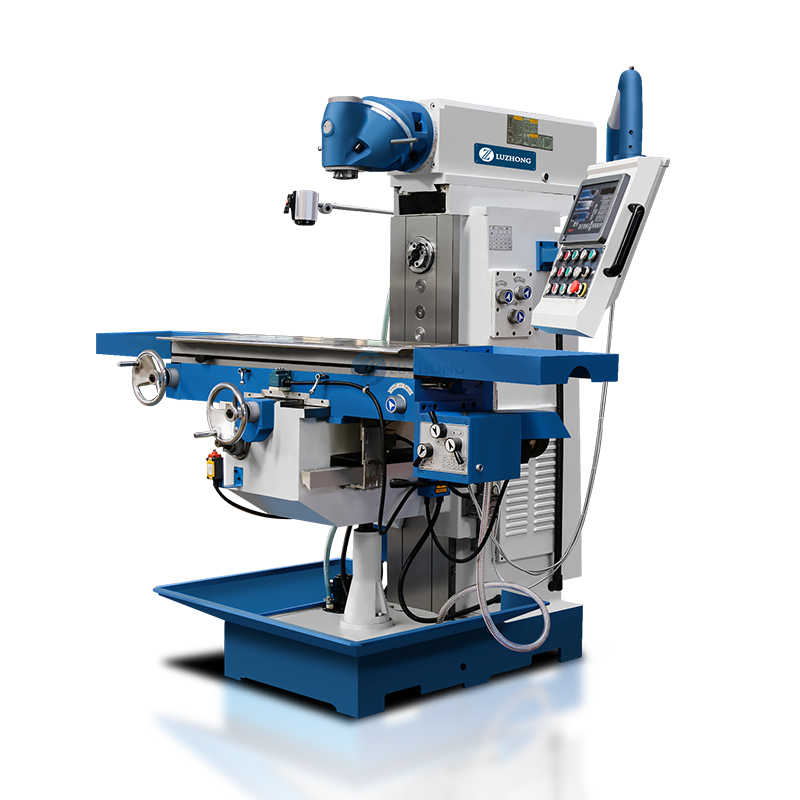

X6226 Swivel Head Milling Machine

Share

Product main technical specifications:

Specifications

Units

X6226

Table size

mm

1200x260

Table travel

mm

600/280/400

T-slot numbers / width /space

mm

5-14-40

Spindle taper


ISO40

Spindle speed range

rpm

48-1660rpm

Distance between spindle nose and table surface

mm

100-500

Distance between spindle axis and table surface

mm

-

Range of table feed

mm /min

X:48-370

YZ:manual

Milling head swivel range

°

360

Spindle motor power

kw

3

Feed motor power

kw

0.75

Weight

kg

1400

Overall dimension

mm

1660x1500x1750
