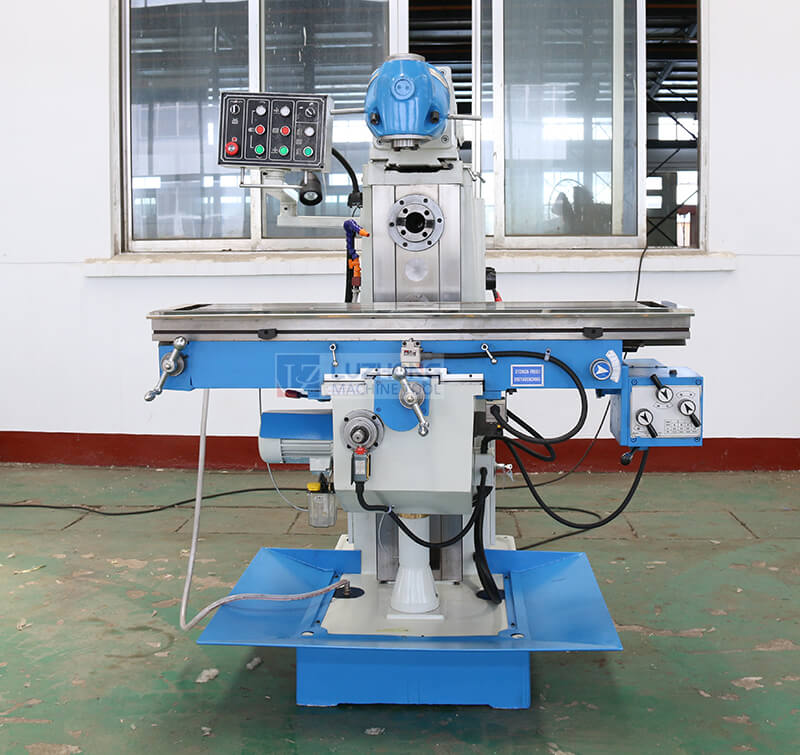

X6236 Swivel Head Milling Machine

Share

The main performance characteristics

1.This milling machine is with universal milling head which can swivel 360 degrees

2.X axis is automatic feed

3.Ram can be movable forward and backward.

4.The machine is with dovetail guideway.

Product main technical parameters:

Specification

X6236

Table size(mm)

1500×360

Max. table travel(mm)

1000/300/350

T-slots(mm)

5/14/63

Spindle taper

7:24 ISO50

Distance between spindle nose and table surface(mm)

220-660

Distance between spindle axis and colomn guideway(mm)

200-760

Distance from horizontal spindle axis to table surface(mm)

0-440

Max. vertical milling dia.(mm)

25

Spindle speed range(r.p.m)

45-1660/40-1300

Swivel angle of swivel head (°)

360°

Spindle motor power(kw)

3

Overall size(mm)

2020×1710×1994

Net. weight(kg)

2450
