Product description:
1.hydraulic clamping
2.Hydraulic transmission
3.Hydraulic pre-selection
4.Electrical machinery double insurance
Product main technical specifications:

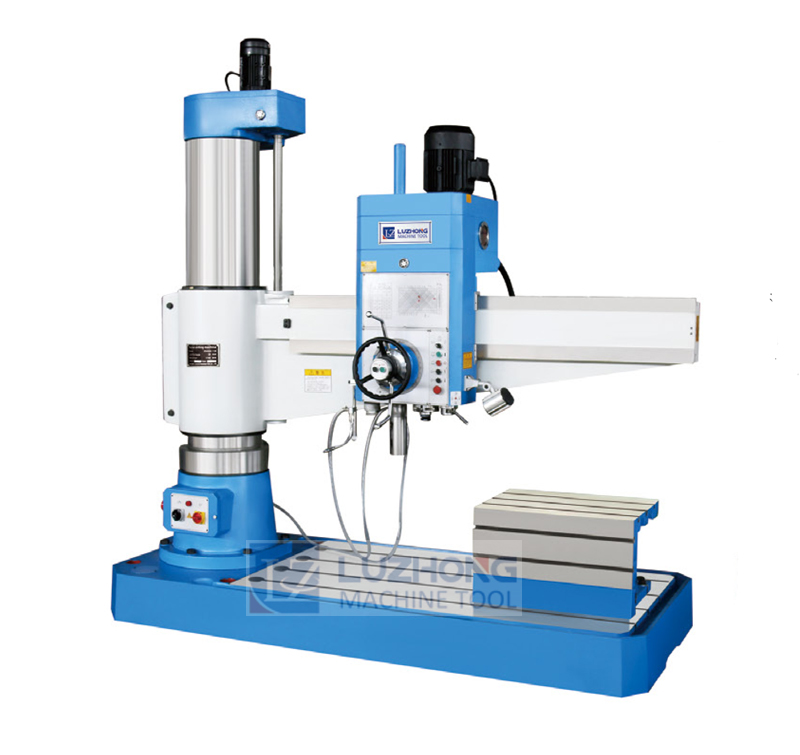

Specifications | Z3063*20A |
Max. drilling diameter | Φ63 |
Distance from spindle nose to table surface | 220-1300 |
Distance between spindle axis and column surface | 430-1900 |
Spindle travel | 400 |
Spindle taper | Morse No. 5 |
Spindle speeds range | 16-1600(16 steps) |
Spindle feeding range | 0.04-3.2(16 steps) |
Rocker rotary angle | +/-90° |
Main motor power | 5.5 |
Movements motor power | 1.5 |
N/W | 6500 |
Overall dimension (L*W*H)） | 3080×1250×3205 |
