Features:

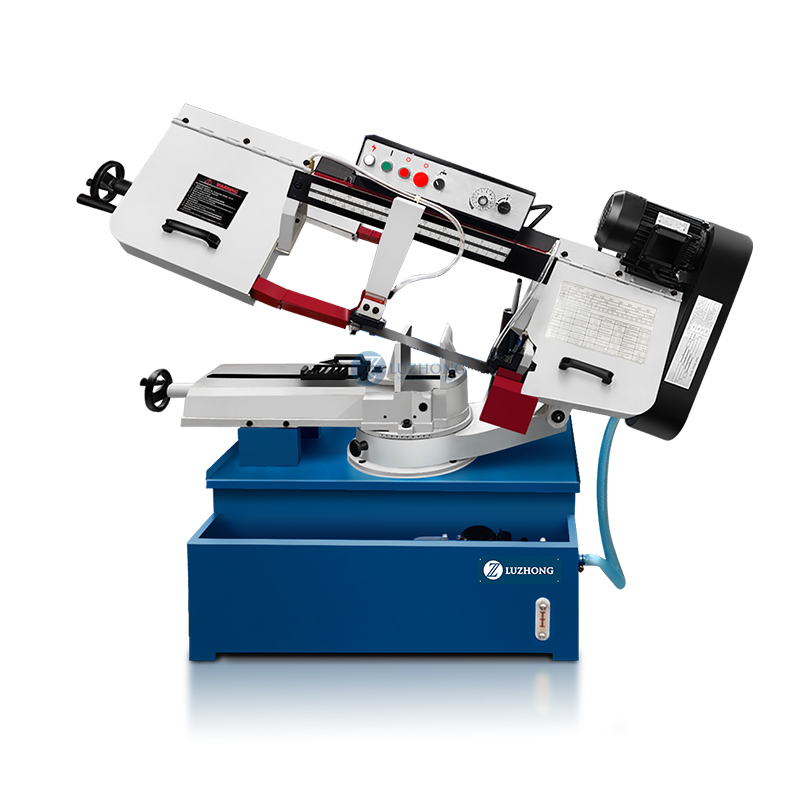

1. The maximum processing capability of BAND SAW BS-1018 is 10"(254mm)
2. High-capacity due to controlled by motor
3. Can rotate from 0° to 45°
4. has the advantage of quickly clamping.
5. features a belt driven and has four cutting speed.
6. The falling speed of saw bow is controlled by hydraulic cylinder
7. With a sizing device, machine will stop automatically after sawing materials
8. With power break protection device, machine will power off automatically when the rear protective cover is opened
9. With coolant system, can prolong the service life of saw blade and improve the precision of work piece
10. has a block feeder (with fixed sawing length)
Product main technical parameters:
Model | BS-1018R | |
Machining capacity | Round steel@90° | 254mm(10″) |
Square steel@90° | 160×406mm(6.3″×16″) | |
Round steel@45° | 170mm(6.7”) | |
Square steel@45° | 160×190mm(6.3″×7.5″) | |
Saw cutting speeds | @ 60HZ | 35,60,88,115MPM |
@ 50HZ | 29,50,73,95MPM | |
Saw blade size | 27×0.9×3215mm | |
Motor power | 1.5W 2HP(3PH) | |
Drive | V-belt | |
Package size | 189×84×134cm | |
NW/GW | 300/360kg | |
