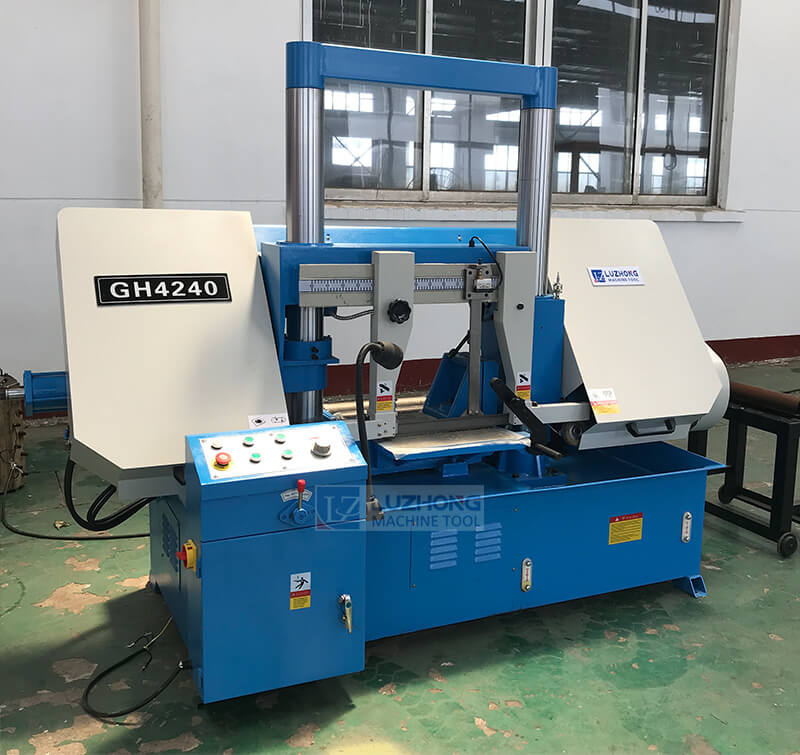

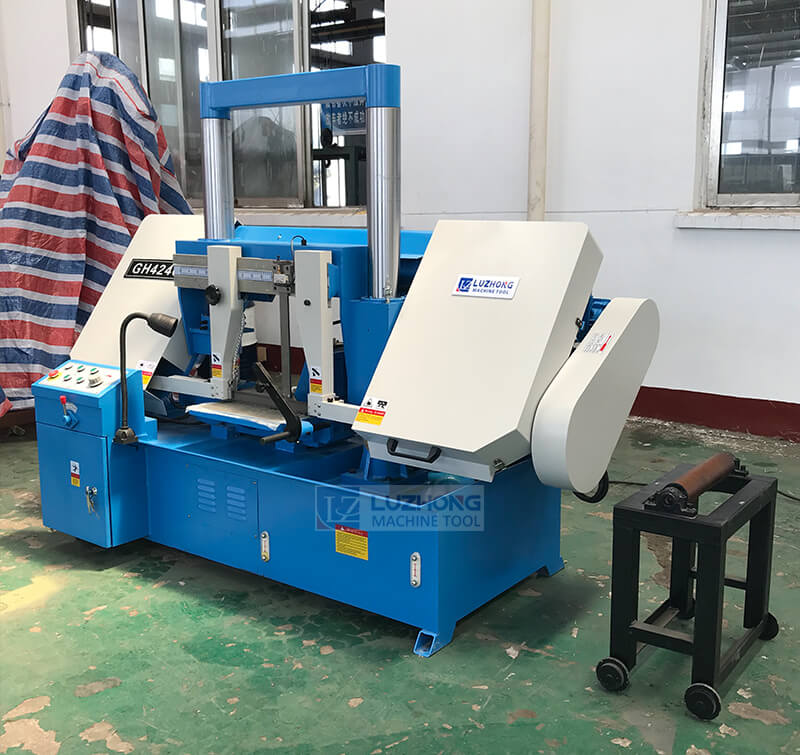

The main performance characteristics：
1. Double upright column machine type ,rigidity good stability.
2. Hand wave feeding mechanism, sawing automatic cycle.
3. Feeding stepless speed change , Saw belt stepless speed change
4. The size of the positioning device, For batch production.
Application：
For high precision metal cutting, is the ideal equipment for the industrial and mining enterprises and small workshops, use is very extensive.
Product main technical parameters:
Main technical parameters | GH4240 | |
Sawing range | Round steel | Φ400mm |
Square material | 400×400mm | |
Belt saw blade size | 41×1.3×5000mm | |
Saw blade speed | 27,45,69m/min | |
Motor power | Main motor | 4kw |
Oil pump motor | 0.75kw | |
Cooling pump motor | 0.125kw | |
Hydraulic system pressure | 3.2MPa | |
Working table height | 575mm | |
Sawing machine external form size | 2264×1304×1862mm | |
Package size | 2678×1780×2150mm | |
NW/GW | 1410/1800kg | |
