Features：
extra rigid saw frame design ensures excellent angular accuracy and low vibration when cutting workpieces with very large diameters;

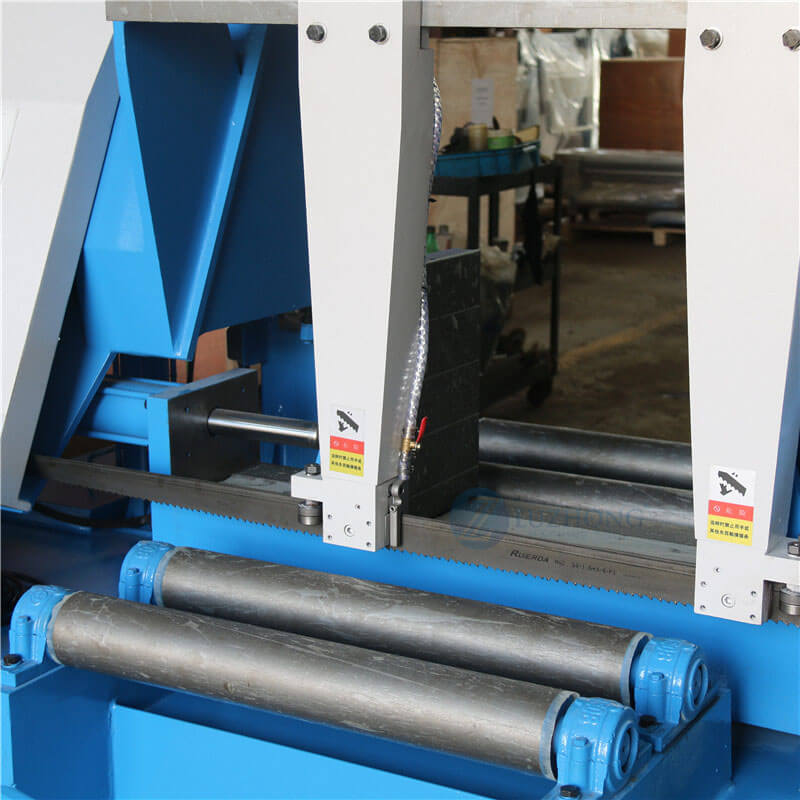

The material support surface features driven feed rollers with extremely high-load capacity ,suitable for very heavy workpiece;

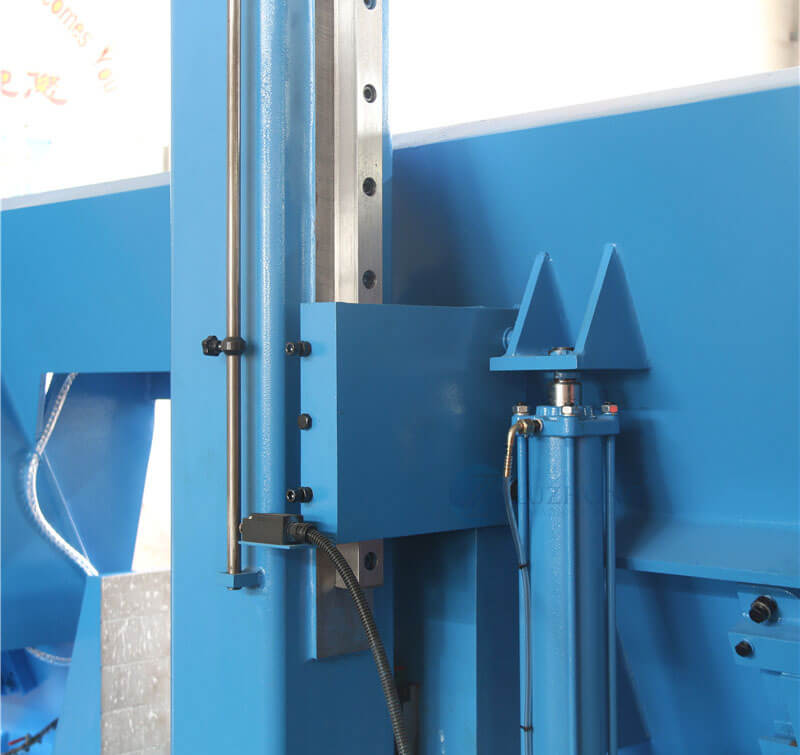

Saw frame lifting adopted double oil cylinder control ,ensuring smooth working;
The heavy saw blade tensioning reduces the workload and helps prevent inaccuracies and premature wear of the saw blade;
One bi-metallic band saw blade and feed roller table are included
Standard equipment :
hydraulic workpiece clamping ,hydraulic blade tensioning ,1 saw blade belt ,material support stand ,coolant system ,work lamp ,operation manual
Optional equipment :
automatic blade breakage control ,fast drop protection devise,hydraulic blade tension ,automatic chip removal device ,various blade linear speed,blade protection covers ,wheel cover opening protection ,Ce standard electrical equipment .
Product main technical specifications:
Specifications | GH4265 | |
Sawing range | Round steel | Φ650mm |
Square material | 650×650mm | |
Belt saw blade size | 6800x54x1.6mm | |
Saw blade speed | 30,50,80m/min | |
Motor power | Main motor | 7.5kw |
Oil pump motor | 1.5kw | |
Cooling pump motor | 0.125kw | |
Overall dimension | 3500x1600x2400mm | |
