Feature :
extremely rigid dual-column cast-iron construction
PlC control for a fully automated sawing process
easy to use touch sreen monitor for easy and quick recording of saw parameters
The feed unit's linear measuring system ensure long term maximum accuracy
Feed of the saw frame is infinitely variable via a hydraulic throttle valve
extra rigid ,adjustable saw blade guide

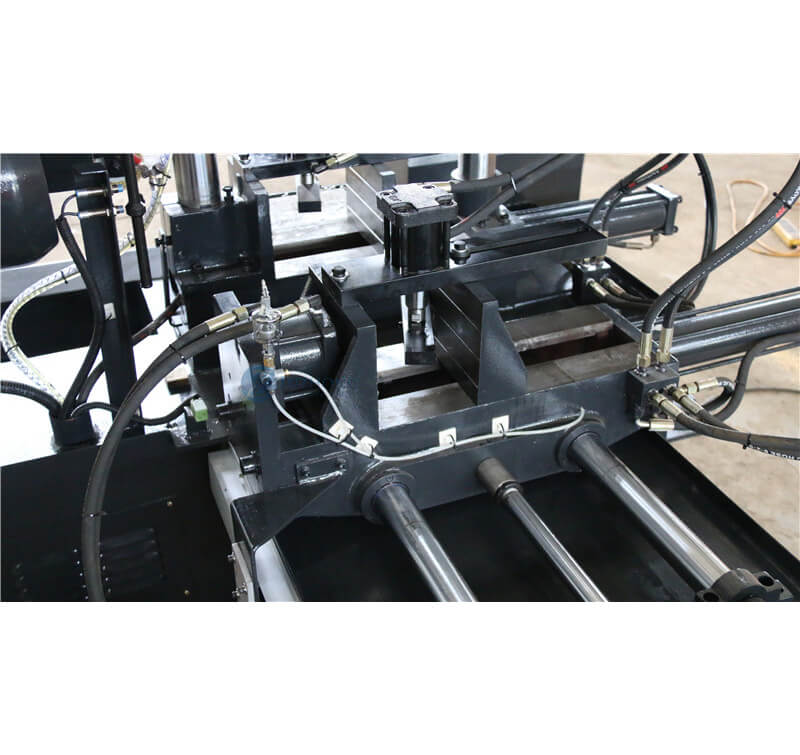

hydraulic workpiece clamping with clamping pressure control and
bundle vise are included in the standard equipment
Standard equipment :
PlC control
1 saw blade belt
Hydraulic workpiece clamping
Bundle vise
Material support stand
Coolant system
Work lamp
Operation manual
Optional equipment:
automatic blade breakage control
Fast drop protection devise
Hydraulic blade tension
automatic chip removal device
Various blade linear speed
Blade protection covers
Wheel cover opening protection
Ce standard electrical equipment
Product main technical specifications:

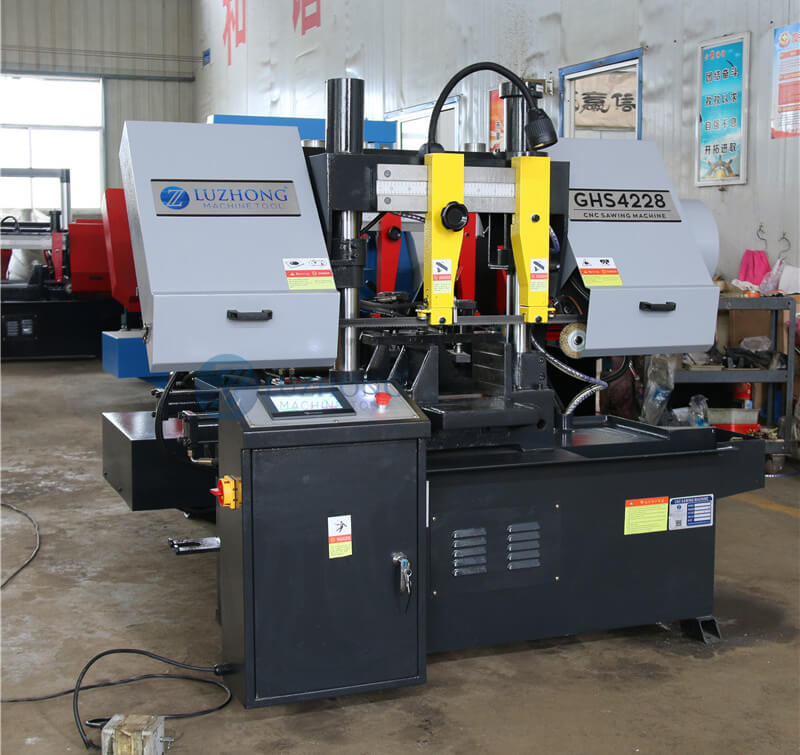

Specifications | GHS4228 | |
Sawing range | Round steel | Φ280mm |
Square material | 280×280mm | |
saw blade size | 3505×27×0.9mm | |
Saw blade speed | 27\45\69 m/min | |
Motor power | Main motor | 2.2kw |
Oil pump motor | 0.55kw | |
Cooling pump motor | 0.04kw | |
Sawing machine external form size | 1860×1100×1400mm | |
