The main performance characteristics：
1. extremely rigid dual-column cast -iron construction
2. with heavy swivel console
3. Three cutting speeds -directly shifted via main drive
4. motor

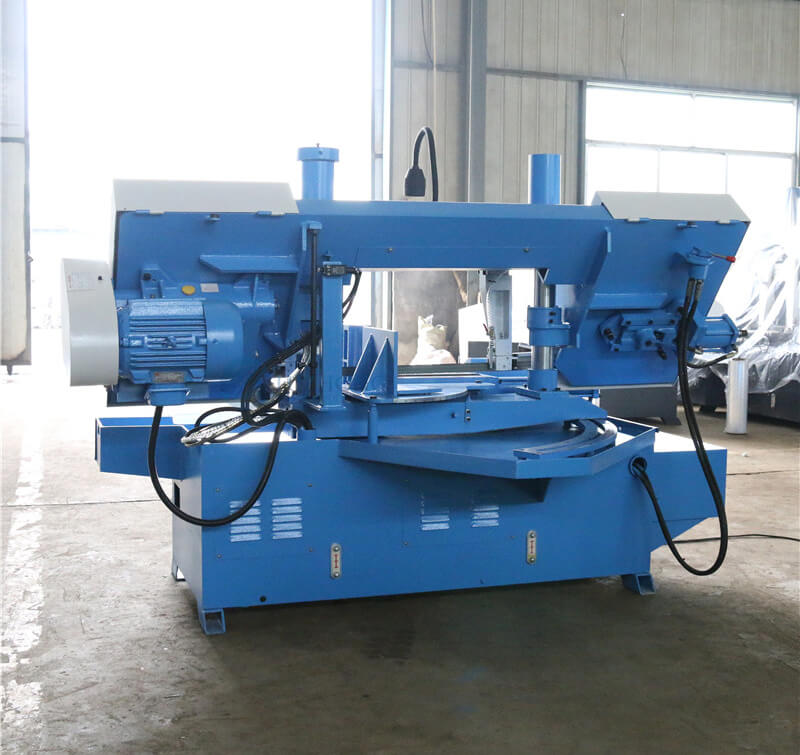

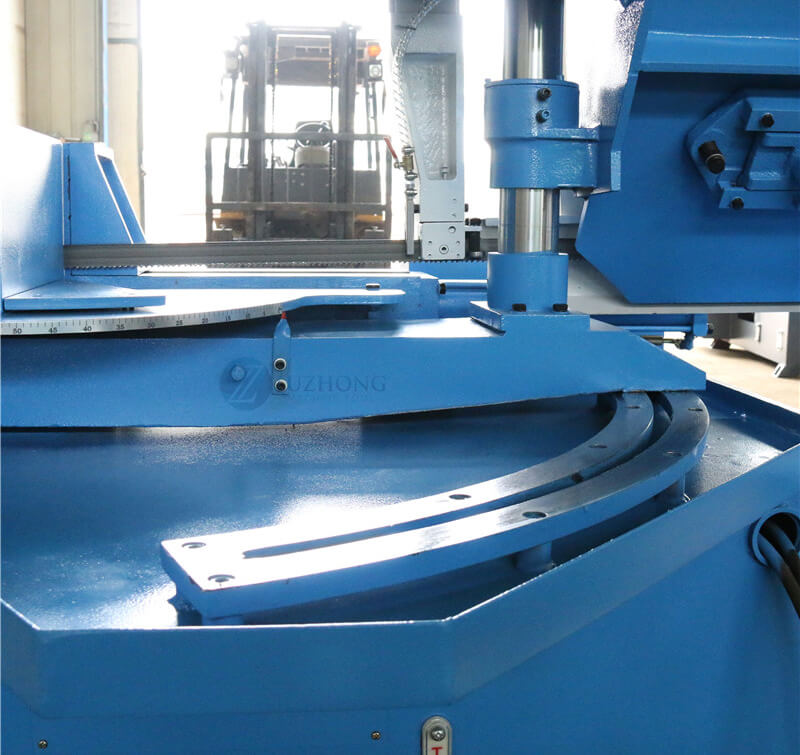

5. infinitely variable saw frame feed
6. Horizontal saw frame swivels up to 45 °
7. Saw frame automatically returns to home position at
8. the end of each cut
9. extra rigid ,adjustable saw blade guide
10. including hydraulic workpiece clamping with clamping pressure control
11. Standard equipment :hydraulic workpiece clamping ,1 saw blade belt ,material support stand ,coolant system ,work lamp ,operation manual
12. Optional equipment :automatic blade breakage control ,fast drop protection devise ,hydraulic blade tension ,automatic chip removal device ,various blade linear
13. speed ,blade protection covers ,wheel cover opening protection ,Ce standard electrical equipment
Product main technical specifications:
| Specifications | GHZ4230 | |
| Cutting capacity 90° | Rectangular | 300×200mm |
| Circular | - | |
| Cutting capacity 45° | Rectangular | 210mm |
| Circular | - | |
| Cutting capacity 30° | Rectangular | 255mm |
| Circular | ||
| Saw blade speed | 27\45\69m/min | |
| Belt saw blade size | 3860x34X1.1mm | |
| Motor power | Main motor | 2.2kw |
| Oil pump motor | 0.55kw | |
| Cooling pump motor | 0.04kw | |
| Overall dimension | 2000x1450x1550mm | |
