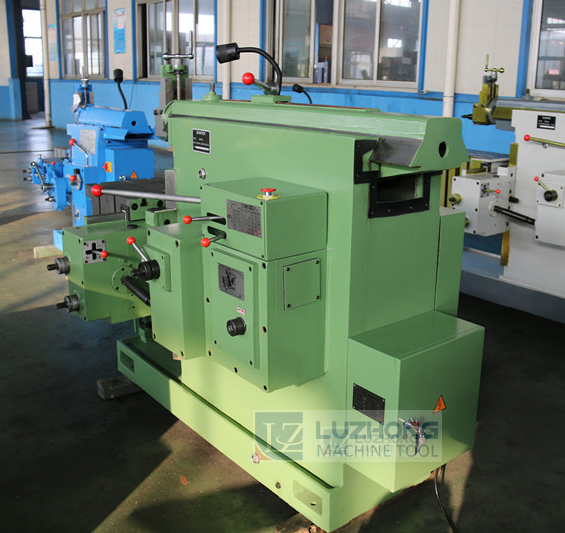

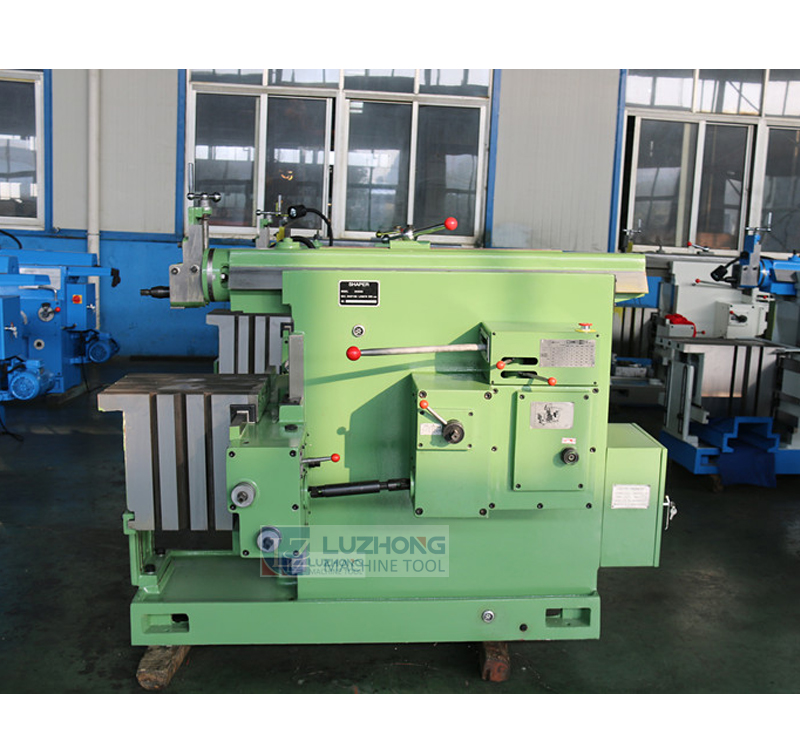

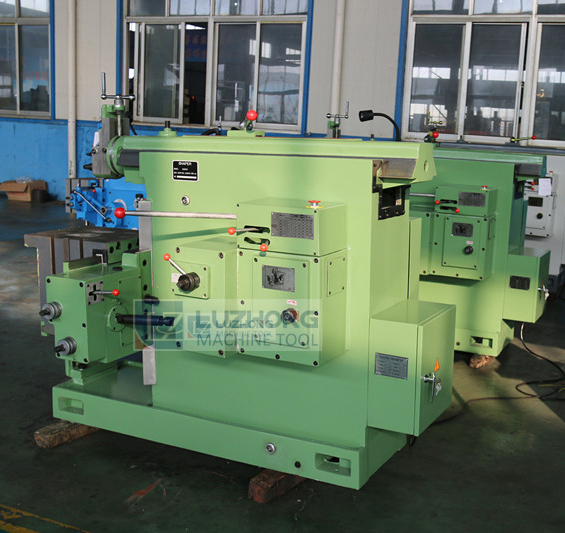

Product main technical specifications：
Specifications | Units | BC6050 | |
Maximum shaping length | mm | 500 | |
Max.range of the horizontal movement of the table | mm | 370 | |
Max.distance between he ram bottom and table | mm | 525 | |
Max.length of the vertical movement of table | mm | 270 | |

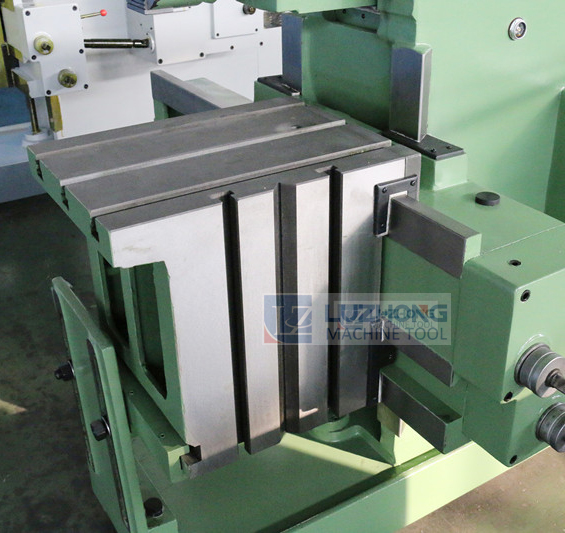

Dimension of table top(L*W) | mm | 400X360 | |
Travel of tool head | mm | 120 | |
Number of ram strokes per minute | Times min | 14-80 | |
Swivel of tool head | ° | ±60 | |
Maximum size of tool shank(W*T) | mm | 20X30 | |
Range of table feed | Horizontal 12 steps | mm | 0.4-5.0 |
vertical 12 steps | mm | 0.08-1.0 | |
Width of the T-slot for center positioning | mm | 18 | |
Main motor power | KW | 3 | |
Overall dimension(L*W*H) | mm | 2000X1250X1400 | |
N.w./G.W | kg | 1650/1760 | |
