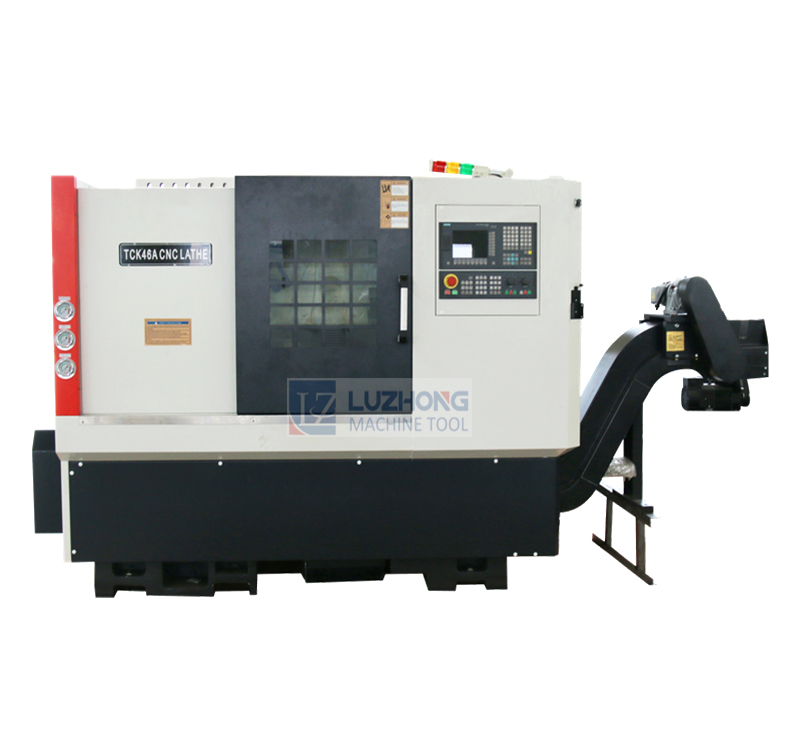

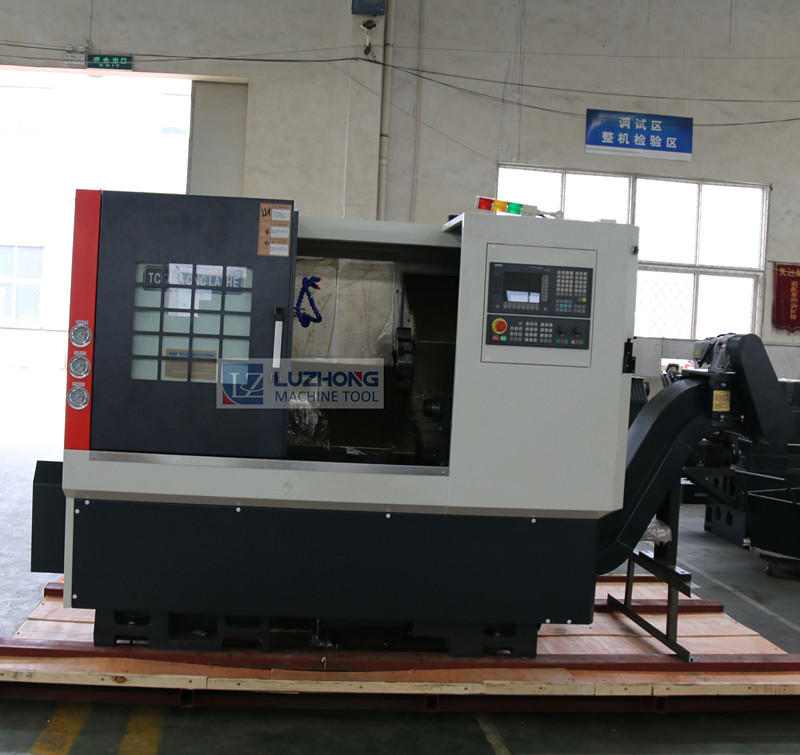

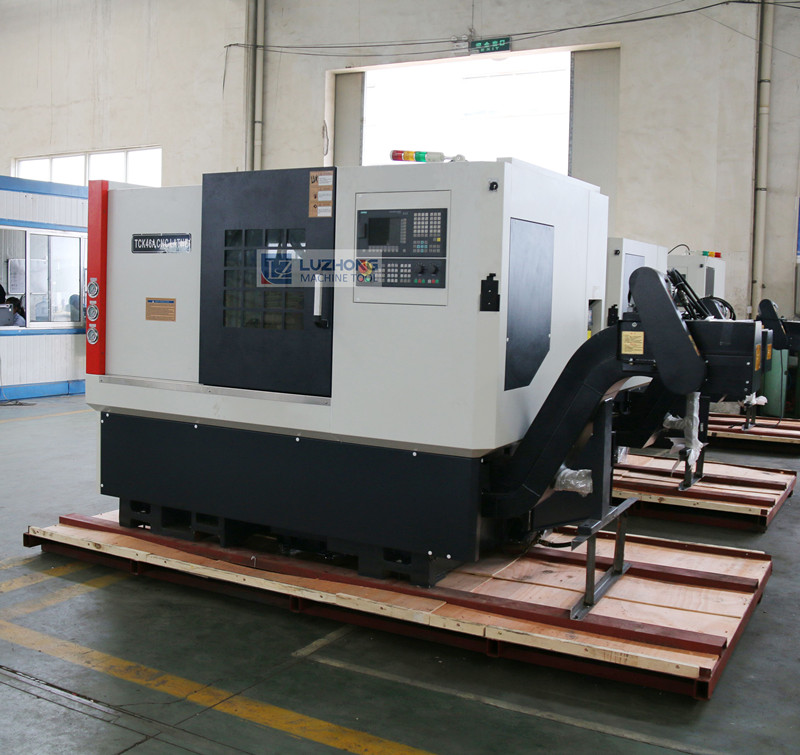

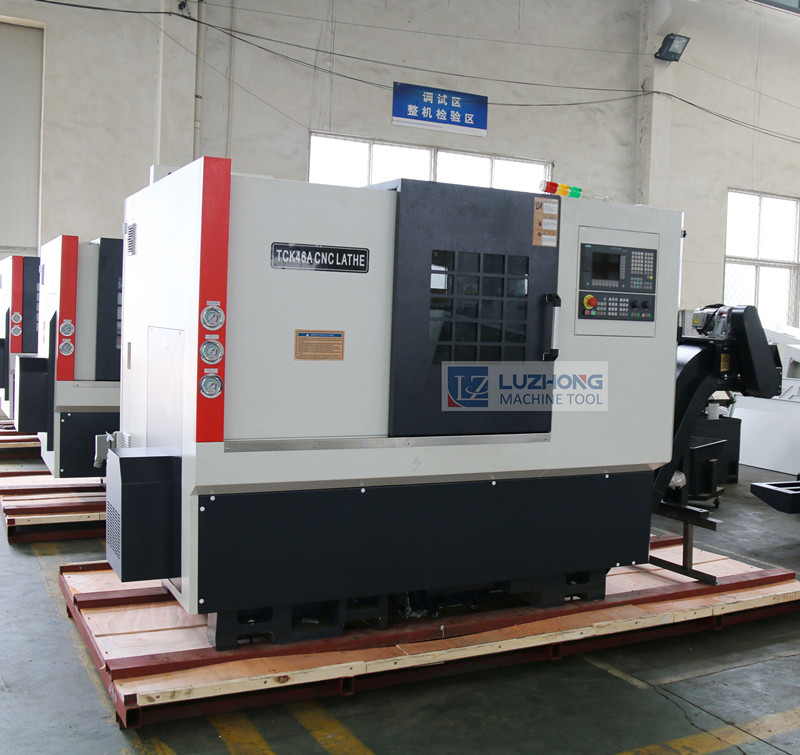

Product features:
Highest accuracy Taiwan linear guide ways
Higher speed spindle unit ,optional homemade spindle
Higher rigidity cast iron
Integrated automatic lubrication

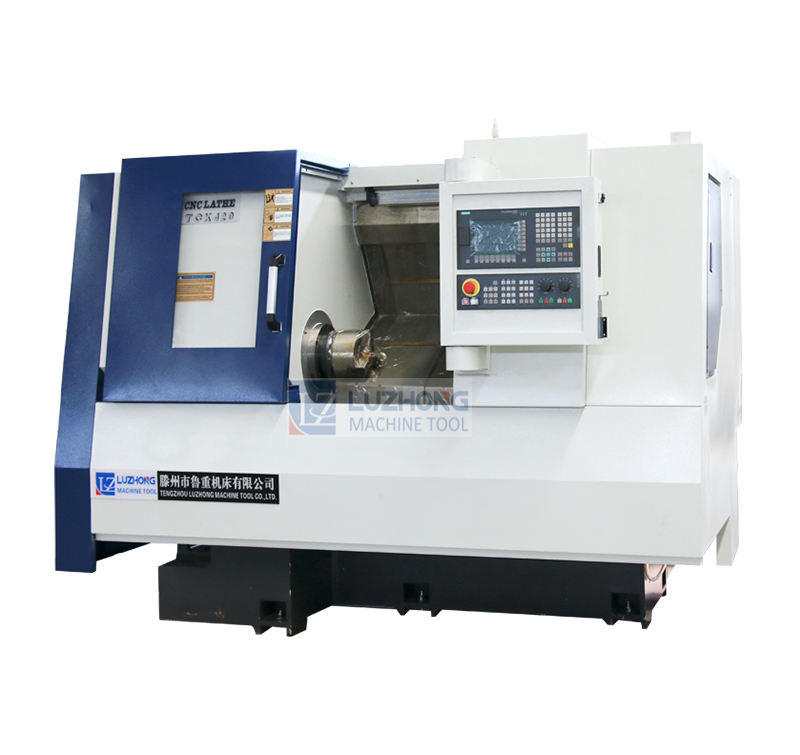

One-piece casting slant bed cnc lathe
Application:
The machine is suitable for automobile, motorcycle, electronics, aerospace, military, oil and other industries, for rotary parts of conical surface, circular arc surface, surface and various inch screw thread batch, efficient, high precision automatic processing, with 45 degrees high rigidity of the whole bed, large torque spindle by Taiwan rail line, ensure that the machine is high rigidity, spindle near the center of the manipulator, the workpiece loading and unloading more convenient.
Product main technical specifications:
| Specification | Units | TCK46A |
| Max.swing over bed | mm | 460 |
| Max.swing over cross slide | mm | 170 |
| Max.turning length | mm | 350 |
| Spindle unit | mm | Ø170 |
| Spindle nose(optinal chuck) | A2-5/A2-6 | |
| Spindle motor power | kw | 5.5 |
| Max.spindle speed | rpm | 3500 |
| Spindle bore | mm | Ø56 |
| X/Y axis lead screw specification | 3210/3210 | |
| X axis limit Travel | mm | 240 |
| Z axis limit Travel | mm | 400 |
| X axis motor torque | N.m | 7.5 |
| Z axis motor torque | N.m | 7.5 |
| X/Z axis repeatability | mm | 0.003 |
| Tails tock bore | mm | 65 |
| Tails tock quill travel | mm | 80 |
| Tail stock travel | mm | 200 |
| Tail stock taper | MT4 | |
| The bed form and inclination | ° | One -piece casting/30° |
| Machine dimensions(L*W*H) | mm | 2500*1700*1710 |
| Weight | kg | 2600 |
