Application :

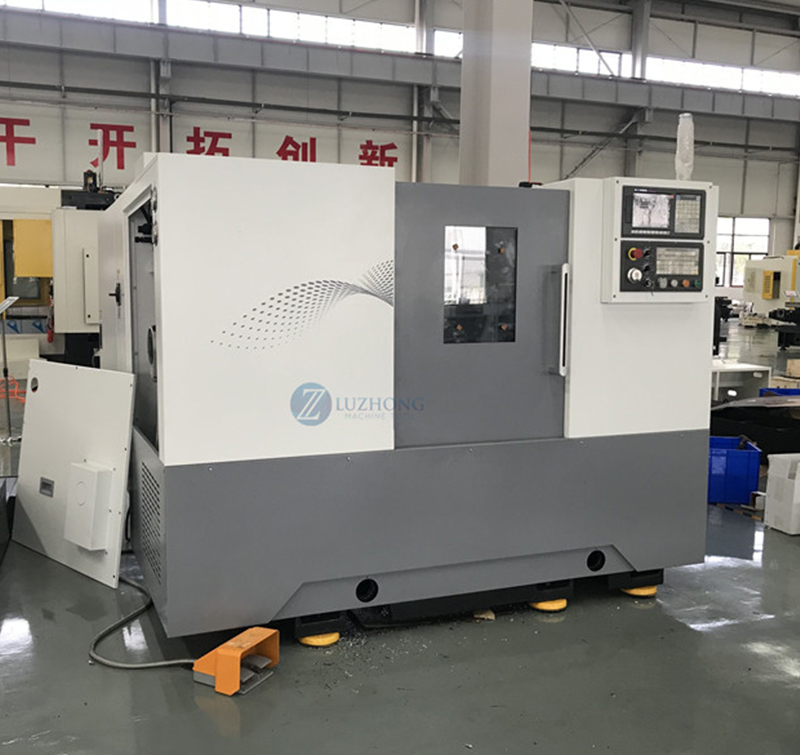

TC500 CNC lathe uses a 30° beveled overall bed for more stable force during cutting. The internal ribs are optimized with Ansys software to give the machine a high degree of rigidity. The bed material is made of high-density cast iron, which has high strength and good shock absorption. The increased chip evacuation design ensures smooth machine cutting. The guide rail adopts 35-standard precision linear ball guide rail, which has high feed precision, small friction resistance, good rigidity, high resistance to vibration and deformation, and enables users to obtain higher machining precision, faster moving speed and production efficiency.
The main performance characteristics：
Taiwan higher accuracy linear guide ways
8 station Hydraulic hydraulic turret
8’’ hydraulic chuck
Hydraulic tailstock
Automatic coolant system
Automatic lubrication system
Chip conveyor as optional
Product main specifications
Specification | Unit | TC500 |
Max.swing over bed | mm | 500 |
Center Distance | MM | 500 |
Max.swing over cross slide | mm | 300 |
Max machining diameter | mm | 360 |
Standard cutting diameter | mm | 240 |
X/Z axis max.travel | mm | 200/550 |
Spindle taper | A2-6 | |
Spindle bore | mm | 65 |
Max.spindle speed | rpm | 50-4500 Stepless |
Chuck | in | 8’’(10’’ as optional) |
Spindle motor power | kw | 11 |
X/Z axis Position accuracy | mm | +/-0.008 |
X/Z axis repeatability accuracy | mm | +/-0.004 |
X/Z rapid traverse | m/min | 30 |
Tailstock travel | mm | 450 |
Quill travel | mm | 100 |
Tailstock taper | MT5 | |
Tool post type | mm | 8 station hydraulic turret |
Tool post size | mm | 25x25 |
Guide form | 30° degree | |
Guide rail movement way | Linear guide rail | |
Max weight of Disk type workpiece | kg | 200 |
Max weight of shaft type workpiece | kg | 500 |
Machine dimensions(L*W*H) | mm | 2300x1700x1930 |
Weight | kg | 3600 |
