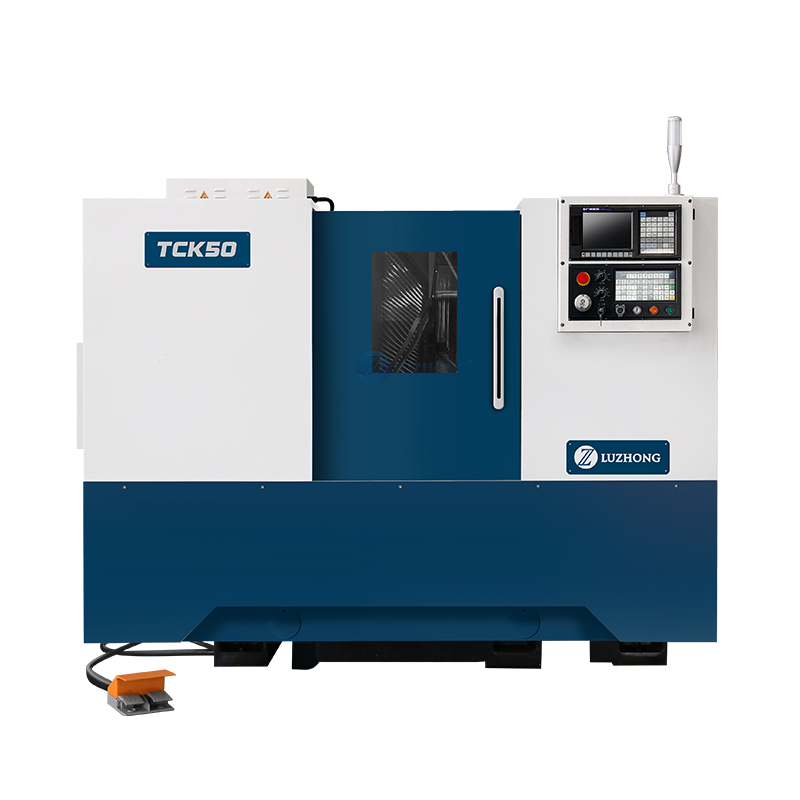

TCK50 Slant Bed CNC Lathe Machine

SPECIFICATIONS

Units

TCK50

Swing over bed

mm

500

Swing over cross slide

mm

300

Max. workpiece lenght

mm

500

Spindle bore

mm

65

Bar capacity

mm

50

Spindle nose type

-

A2-6

Spindle speed range

rpm

50～4500

Turret/tool post

-

Servo turret 8position

Tool size

mm

25×25

X axis travel

mm

200

Z axis travel

mm

550

X axis rapid traverse

mm/min

30

Z axis rapid traverse

mm/min

30

Main motor power

kw

11/15

Tailstock quill diameter

mm

65

Tailstock quill taper

-

MT4

Tailstock quill travel

mm

100

Guide rail type

-

Slant bed linear rail

Machine weight

kg

3600

Overall dimension

mm

2300×1700×1930
