Specifications:

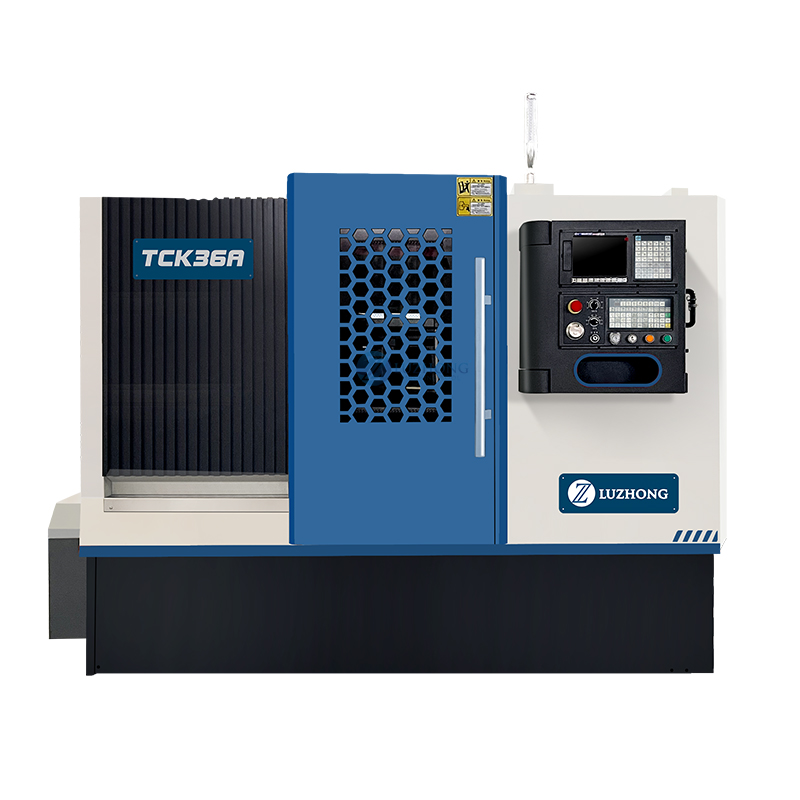

SPECIFICATIONS | Units | TCK36A |
Swing over bed | mm | 360 |
Swing over cross slide | mm | 140 |
Max. workpiece lenght | mm | 300 |
Spindle bore | mm | 56 |
Bar capacity | mm | 44 |
Spindle nose type | - | A2-5 |
Spindle speed steps | - | Stepless |
Spindle speed range | rpm | 4000 |
Turret/tool post | - | Hydraulic turret 8position |
Tool size | mm | 20*20 |
X axis travel | mm | 185 |
Z axis travel | mm | 350 |
X axis rapid traverse | mm/min | 24000 |
Z axis rapid traverse | mm/min | 24000 |
Main motor power | kw | 5.5 |
Tailstock quill diameter | mm | 65 |
Tailstock quill taper | - | MT4 |
Tailstock quill travel | mm | 60 |
Guide rail type | - | Slant bed linear rail |
Machine weight | kg | 2400 |
Overall dimension | mm | 2200*1600*1850 |
