Application :

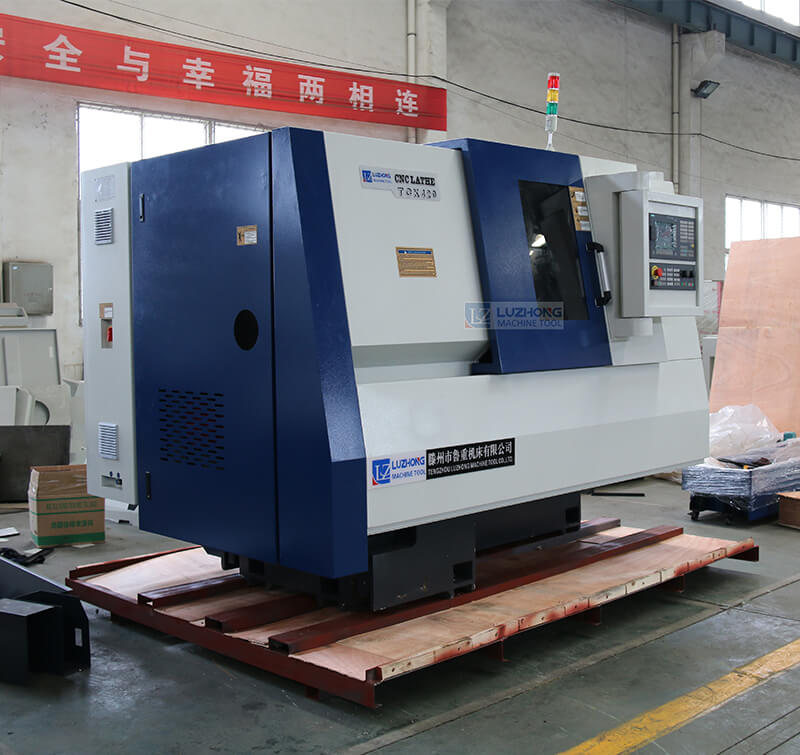

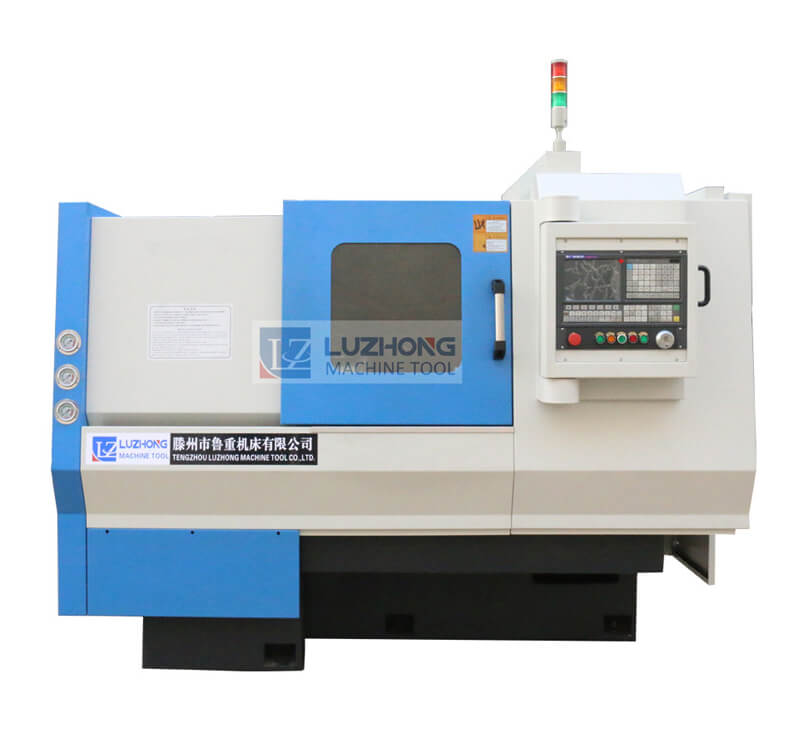

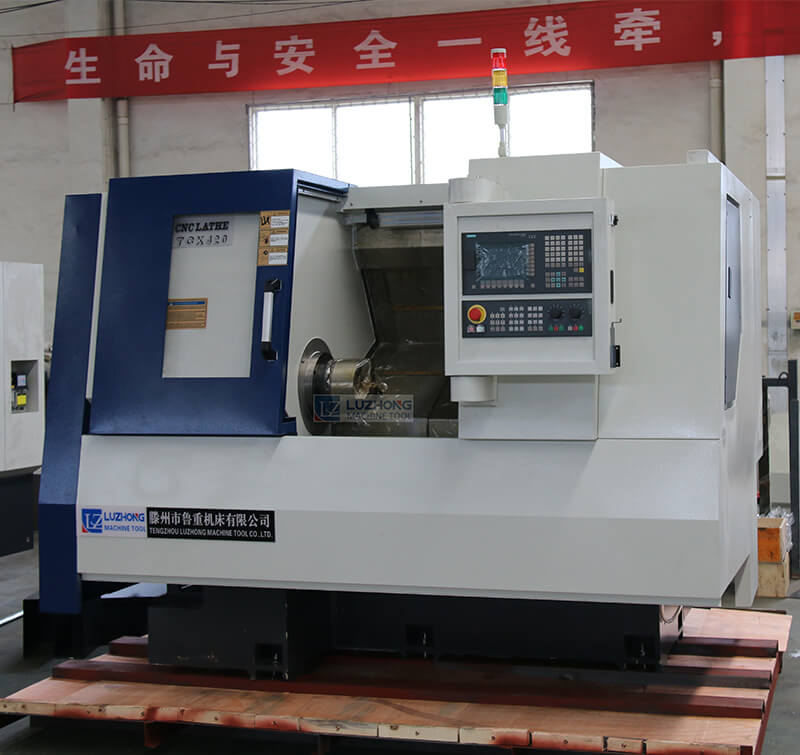

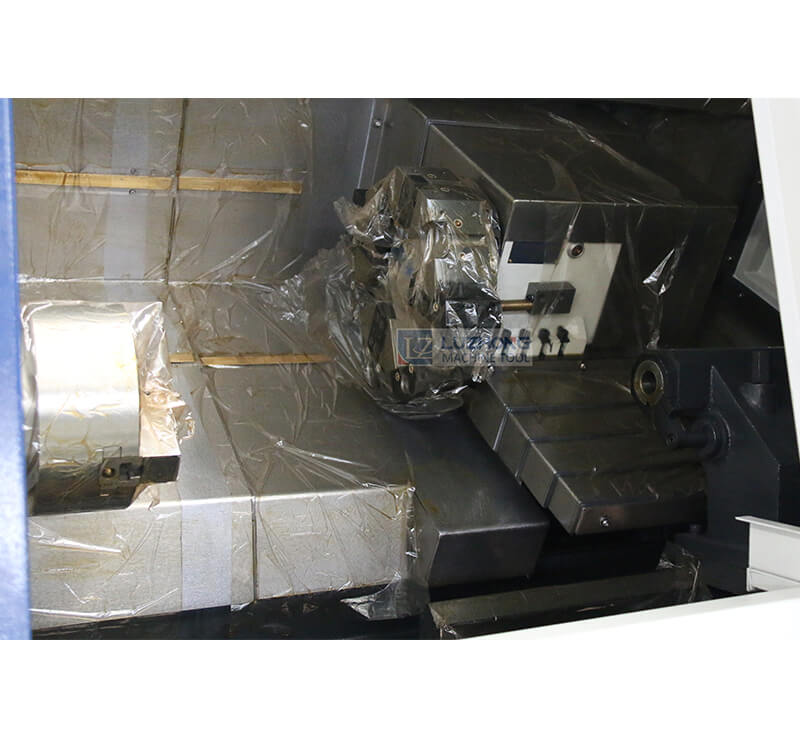

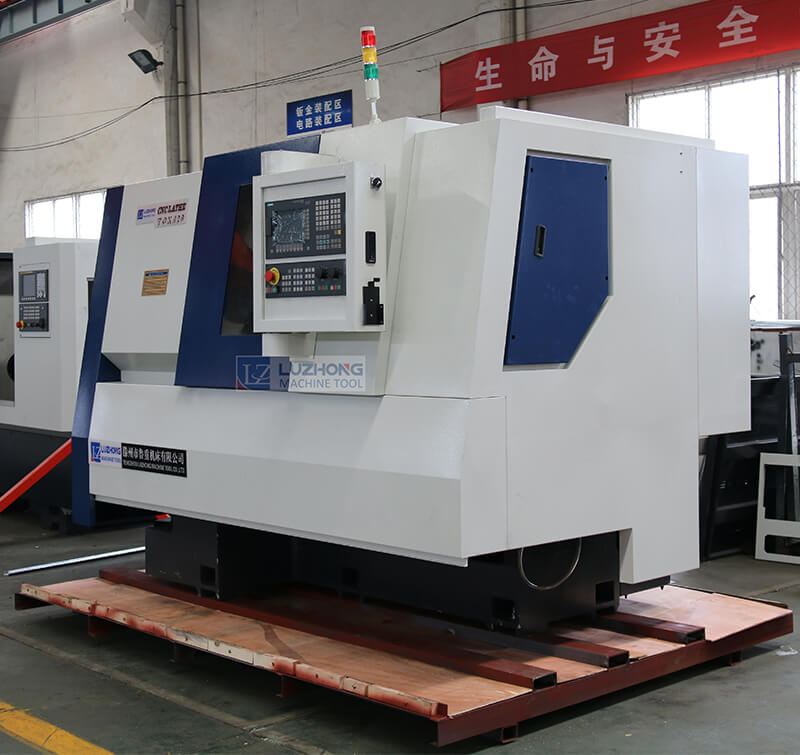

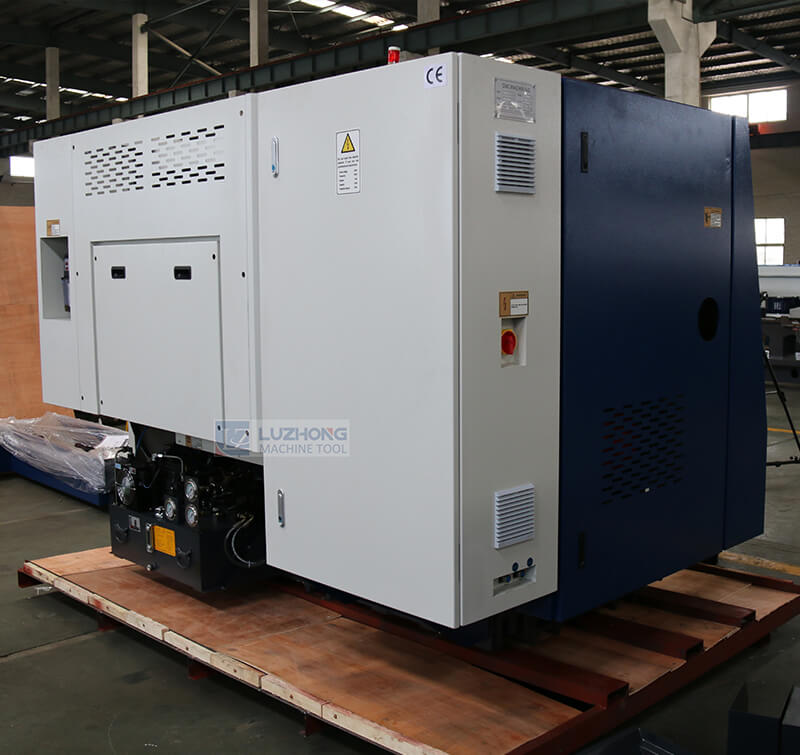

The machine are the slant bed cnc machine tools of higher speed ,higher precision and higher reliability.The spindle is in unit structure ,servo main motor for high speed.The hydraulic chuck is employed for clamping the workpiece ,which makes the clamping by 5 angular ,3 of which are placed in the front and 2 in the back.It makes the higher speed and higher rigidity .Machine adopts 30 degree oblique slide saddle and liner guide rail ,stronger in rigidity,faster in feeding speed and easier in chip removal .The X and Z axis screws are in the middle of the carriage ,well-distributed in force,smooth in movement ,higher in speed .The 8-tool hydraulic turret changers tools quickly ,stably ,precisely and chooses tool from the nearest .It is easy to operate hydraulic tailstock.Full shield machine house does not leak oil and water ,gree and beautiful .
The main performance characteristics：
Taiwan higher accuracy linear guide waysTaiwan ball screwHydraulic magazineTaiwan hydraulic chuckHydraulic tailstockTaiwan hollowed rotary cylinder
Product main specifications：
| Specification | Unit | TCK520 |
| Max.swing over bed | mm | 520 |
| Max.swing over cross slide | mm | 250 |
| Max.processing length | mm | 500 |
| X/Z axis max.travel | mm | 220/500 |
| Spindle nose | A2-8 | |
| Spindle bore | mm | 80 |
| Bar capacity | mm | 65 |
| Max.spindle speed | rpm | 2500 |
| Chuck | in | 10 |
| Spindle motor power | kw | 7.5 |
| X/Z axis repeatability | mm | +/-0.003 |
| X/Z axis feed motor torque | N.M | 7.5/7.5 |
| X/Z rapid traverse | M/min | 10 |
| Tailstock travel | mm | 350 |
| Quill travel | mm | 100 |
| Tailstock taper | MT5 | |
| Tool post type | mm | 8 station hydraulic turret |
| Tool post size | mm | 25x25 |
| Guide form | 30° degree | |
| Guide rail movement way | Linear guide rail | |
| Total power capacity | KVA | 15 |
| Machine dimensions(L*W*H) | mm | 2450*1600*1700 |
| Weight | kg | 4200 |
