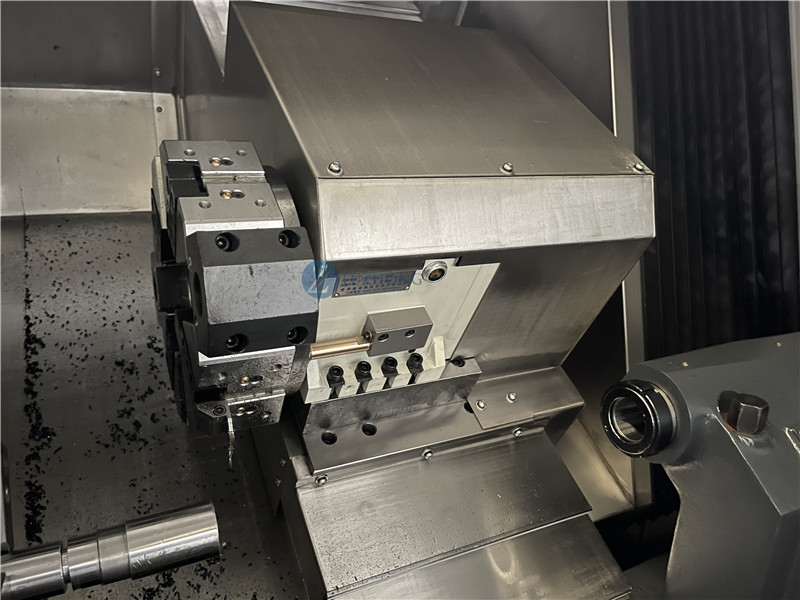

TCK46A Slant Bed CNC Lathe Machine

SPECIFICATIONS

Units

TCK46A

Swing over bed

mm

460

Swing over cross slide

mm

170

Max. workpiece lenght

mm

350

Spindle bore

mm

56

Bar capacity

mm

44

Spindle nose type

-

A2-5

Spindle speed steps

-

Stepless

Spindle speed range

rpm

3500

Turret/tool post

-

Hydraulic turret 8position

Tool size

mm

25*25

X axis travel

mm

240

Z axis travel

mm

400

X axis rapid traverse

mm/min

24000

Z axis rapid traverse

mm/min

24000

Main motor power

kw

7.5

Tailstock quill diameter

mm

70

Tailstock quill taper

-

MT5

Tailstock quill travel

mm

80

Guide rail type

-

Slant bed linear rail

Machine weight

kg

2600

Overall dimension

mm

2500*1950*1950
