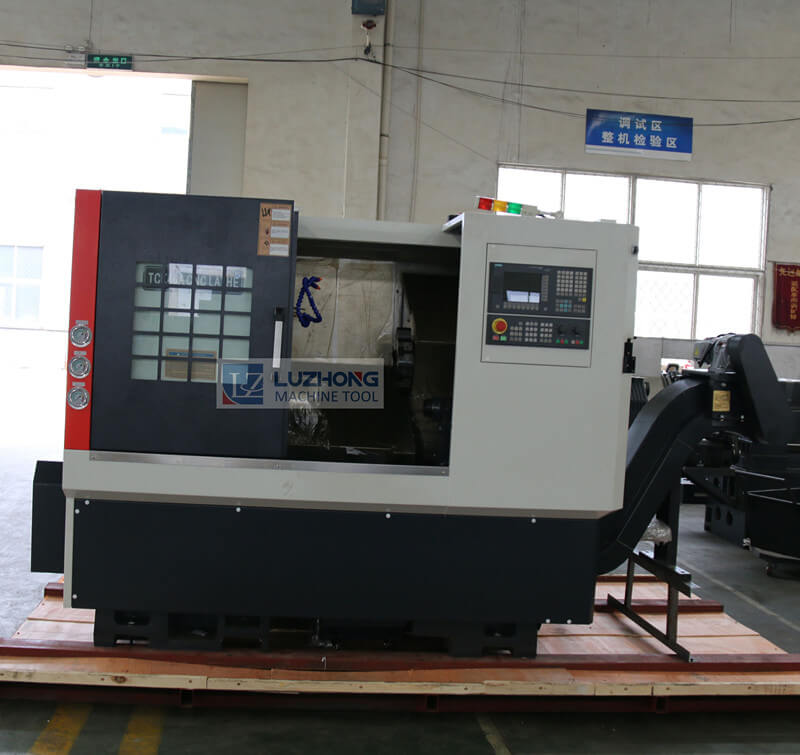

TCK46A TCK50A Slant Bed CNC Lathe

Inquire Now Next Product

Description

Product features:

Highest accuracy Taiwan linear guide ways

Higher speed spindle unit ,optional homemade spindle

Higher rigidity cast iron

Integrated automatic lubrication

One-piece casting slant bed cnc lathe

Application:

The machine is suitable for automobile, motorcycle, electronics, aerospace, military, oil and other industries, for rotary parts of conical surface, circular arc surface, surface and various inch screw thread batch, efficient, high precision automatic processing, with 45 degrees high rigidity of the whole bed, large torque spindle by Taiwan rail line, ensure that the machine is high rigidity, spindle near the center of the manipulator, the workpiece loading and unloading more convenient.

Product main technical specifications:

SPECIFICATIONS	Units	TCK46A	TCK50A
Swing over bed	mm	460	500
Swing over cross slide	mm	170	190
Distance between centers	mm	350	370
Spindle bore	mm	56	65
Bar capacity	mm	45	45
Spindle nose type	-	A2-5	A2-6
Spindle speed steps	-	Stepless	Stepless
Spindle speed range	rpm	3500	3500
Turret/tool post	-	8工位液压刀塔 Hydraulic turret	8工位液压刀塔 Hydraulic turret
Tool size	mm	25 x 25	25 x 25
X axis travel	mm	240	240
Z axis travel	mm	400	400
X axis rapid traverse	mm/min	18000	18000
Z axis rapid traverse	mm/min	18000	18000
Main spindle motor	kw	7.5	11
Tailstock quill diameter	mm	70	70
Tailstock quill taper	-	MT4	MT4
Tailstock quill travel	mm	80	80
Tailstock travel	mm	200	200
Guide rail type	-	Slant bed linear rail	Slant bed linear rail
Machine weight	kg	2600	2900
Overall dimension	mm	2500x1700x1750	2500x1700x1750
