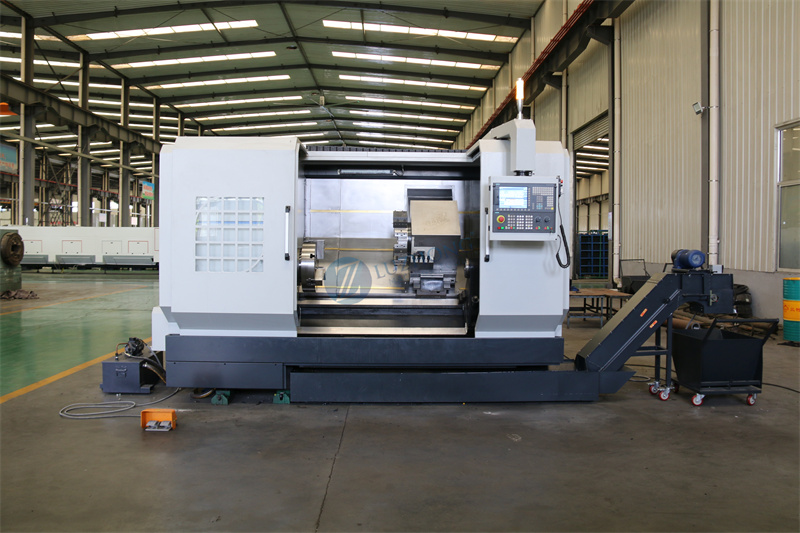

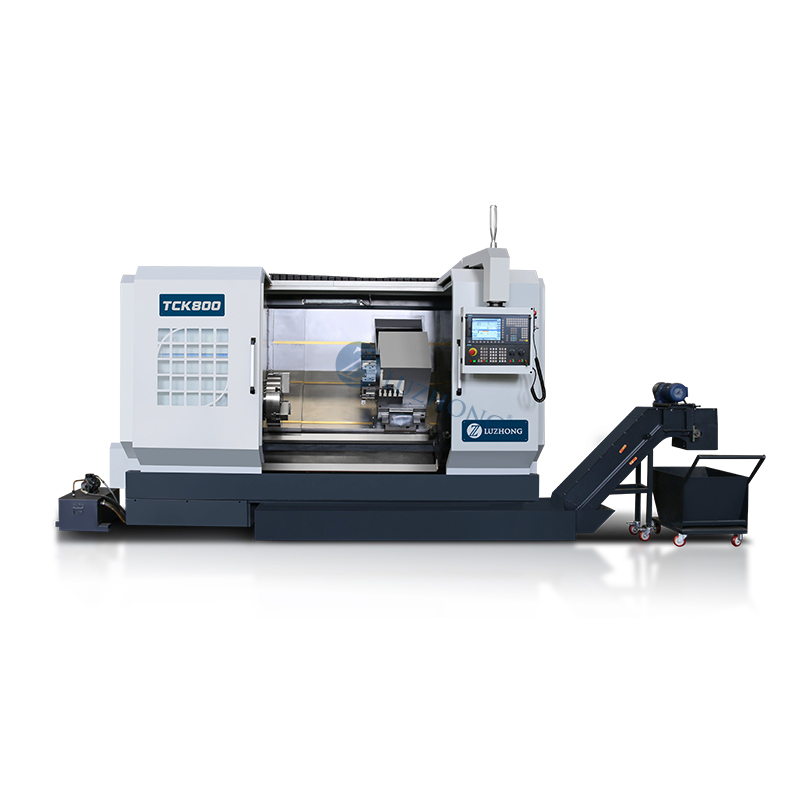

TCK800 Slant Bed CNC Lathe Machine

SPECIFICATIONS

Units

TCK800

Swing over bed

mm

800

Swing over cross slide

mm

630

Distance between centers

mm

1000/1500/2000/3000

Slant bed layout angle

°

45

Spindle bore

mm

φ105

Spindle speed steps

-

Stepless

Spindle speed range

rpm

150-800

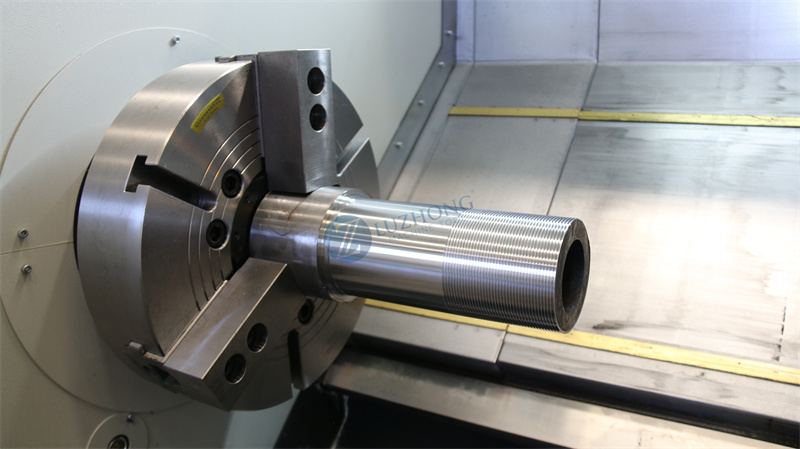

Hydraulic chuck

in

18

Main spindle motor

kW

15

Turret/tool post

-

Hydraulic turret 8 position

Tool shank size

mm

32 x 32

Boring tool holder size

mm

φ60

X axis travel

mm

390

Z axis travel

mm

1000/1500/2000/3000

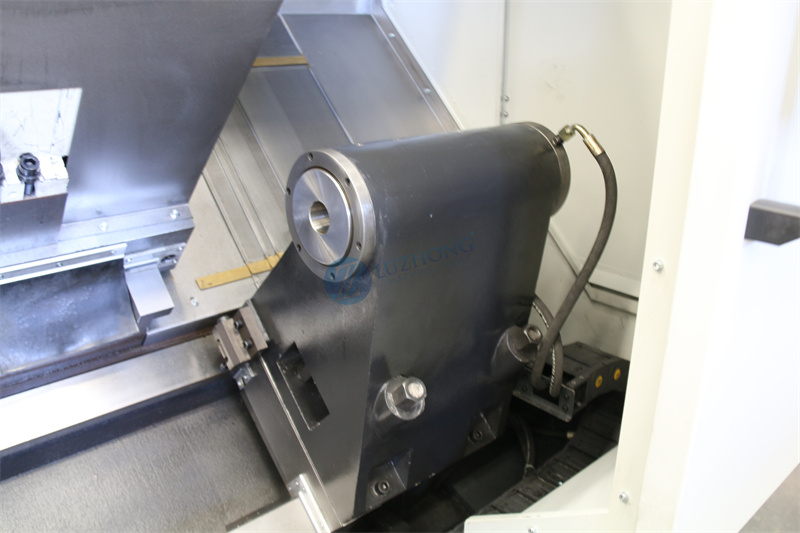

Tailstock quill diameter

mm

φ130

Tailstock quill taper

-

MT5

Tailstock quill travel

mm

150

Coolant pump motor

kW

0.37

Width x Height

mm

2150x 2400

Length

mm

4850/5350/5850/6850

Machine weight

T

7.5/8.0/8.5/9.5
