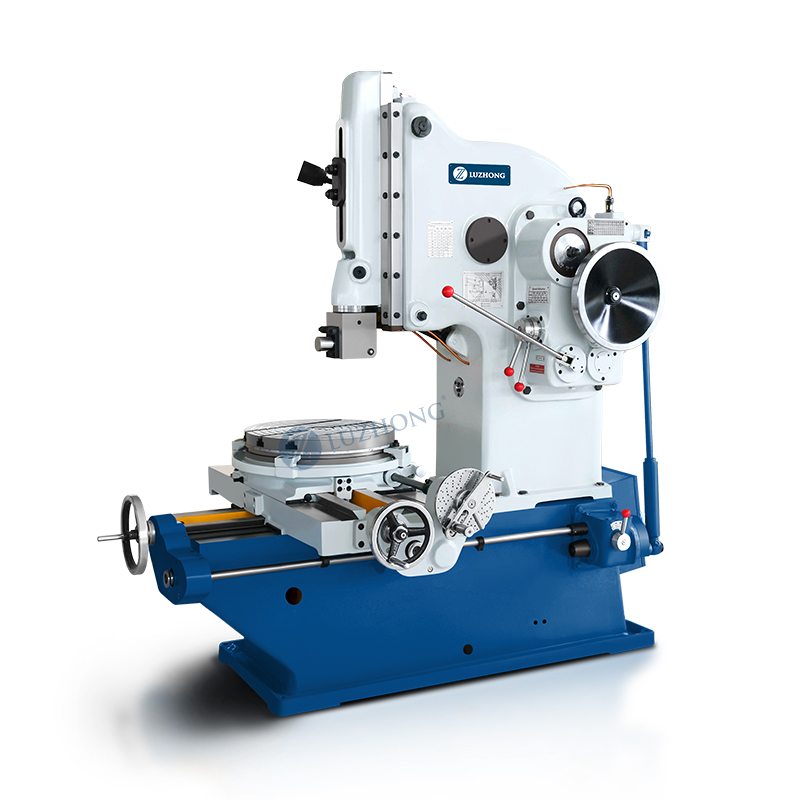

B5032 Vertical Slotting Machine

Inquire Now Next Product

Description

The main performance characteristics：

1.The working table of the machine tool is provided with three different directions of feed (longitudinal, horizontal and rotary), therefore work object go through once clamping, Several surfaces in the machine tool machining

2.Hydraulic transmission mechanism with sliding pillow reciprocating motion and hydraulic feed device for working table.

3.The sliding pillow has the same speed in every stroke, and the movement speed of the ram and the working table can be adjusted continuously.

4.Hydraulic control table have ram commutation oil for oil reversing mechanism, In addition to hydraulic and manual feed outer, Even there single motor drive vertical, horizontal and rotary fast moving.

5.Use hydraulic feed the slotting machine, Is when the work is over turning back instantaneous feed, Therefore be better than mechanical slotting machine used drum wheel feed.

Application：

1. This machine be used for interpolation plane, forming surface and Keyway Etc. And can insert the inclination in the 10° Mold and other within the scope of etc. work matter,,

2. Enterprise suitable for single or small batch production.

Product main technical parameters:

Specification	Unit	B5032
Max.ram slotting length	mm	320
Ram moving frequency per minute	times/min	20-80
Ram tilt angle	°	0-8
Ram vertical adjustment distance	mm	315
Distance from cutter head to column surface	mm	600
Distance from ram lower end to table surface	mm	490
Table Diameter	mm	630
Table longitudinal travel	mm	630
Table cross travel	mm	560
Table rotation angle	°	360
Table feed range (longitudinal and cross)	mm	0.08-1.21
Table rotary feed range	mm	0.052-0.783
Main motor power	kw	4
Rapid traverse motor power	r/min	0.75
Machine weight	kg	3000
Overall dimension	mm	2261x1495x2245
