Product main technical specifications：

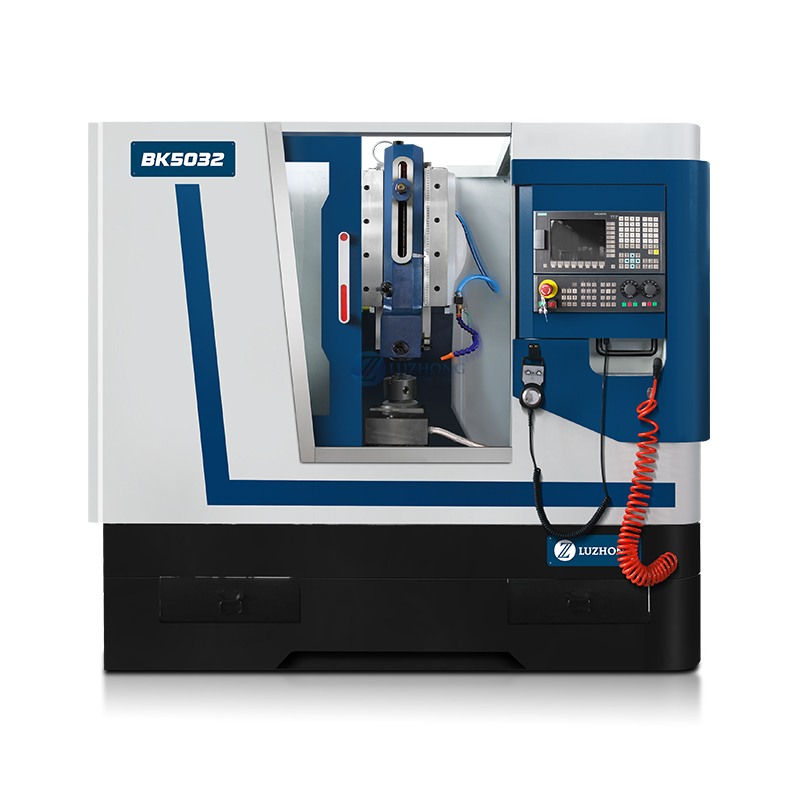

Specifications | unit | BK5032 |
Max.ram slotting length | mm | 320 |
Ram moving frequency per minute | times/min | 20-80 |
Ram vertical adjustment distance | mm | 315 |
Distance from cutter head to column surface | mm | 600 |
The distance from worktable to the lower end of the slide | mm | 540 |
Table size | mm | 800x610 |
Table travel (X/Y) | mm | 350x400 |
X axis motor torque | N.M | 7.7 |
Y axis motor torque | N.M | 7.7 |
X axis rapid traverse speed | M/min | 5 |
X axis rapid traverse speed | M/min | 5 |
Main motor power | Kw | 3.7 |
Machine weight | kg | 4000 |
Dimensions | Mm | 2650x2200x2285 |
