  • XQ6226 Swivel Head Milling Machine

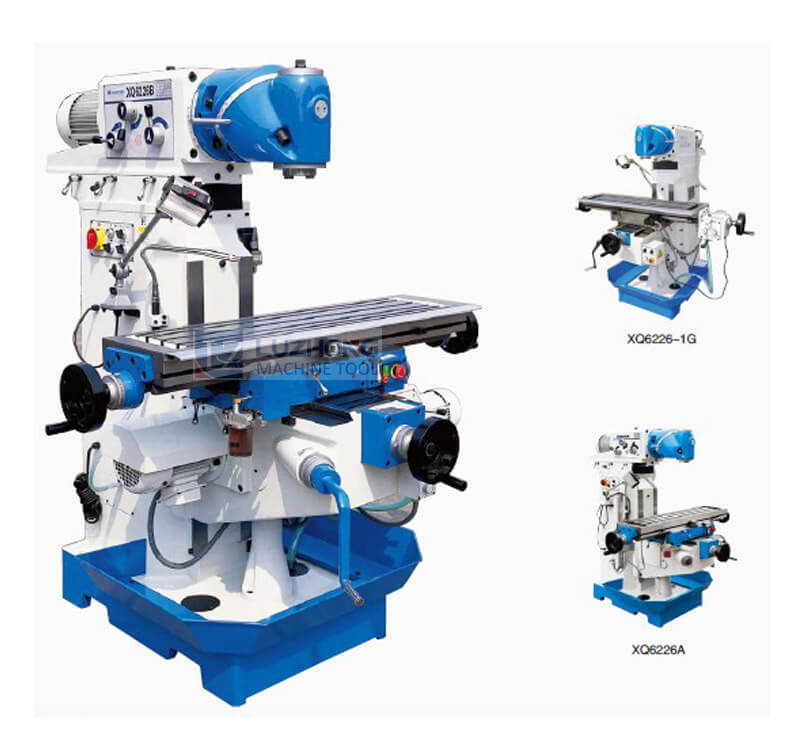

XQ6226 Swivel Head Milling Machine

Share

The main performance characteristics

1.It can realize vertical and horizontal milling two processing function;

2.The two rotary milling head, spindle at  any angle  rotating and adjustment;

3.Can be used for processing and mold shell;

4.Work bench X. Y all are gear drive automatic feed, Z to the electric lift.

5.Modeling beautiful, generous, overall layout of symmetry coordination. rail surface heat treatment of  high hardness, strong steel, gear up for gear grinding ,by high frequency quenching and low noise durable

6.Spindle two head design, can easily achieve vertical, horizontal milling conversion and arbitrary angle combination, and stiffer than the three section head has greatly improved.

7.Two heads configuration precision positioning pin , accurate vertical horizontal milling conversion, more convenient operation.

Application

Universal rotary head milling machine is a kind of medium and small general metal cutting machine tools, that can lie milling and can vertical milling.

Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.

Product main technical parameters:

Specifications

Units

XQ6226B

Table size

mm

1120x260

Table stroke

mm

600x270

Distance from spindle nose to table surface

mm

100-480

Max. end milling width

mm

125

Max. vertical milling dia.

mm

25

Spindle taper


ISO40

Spindle speed range

rpm

45-1660

Swivel angle of swivel head


360°

Spindle motor power

KW

2.2

Overall dimensions

mm

1655x1500x1730

Machine weight

Kg

1480
